TRANSMISSION
M6060, M7060, WSM
2-S24

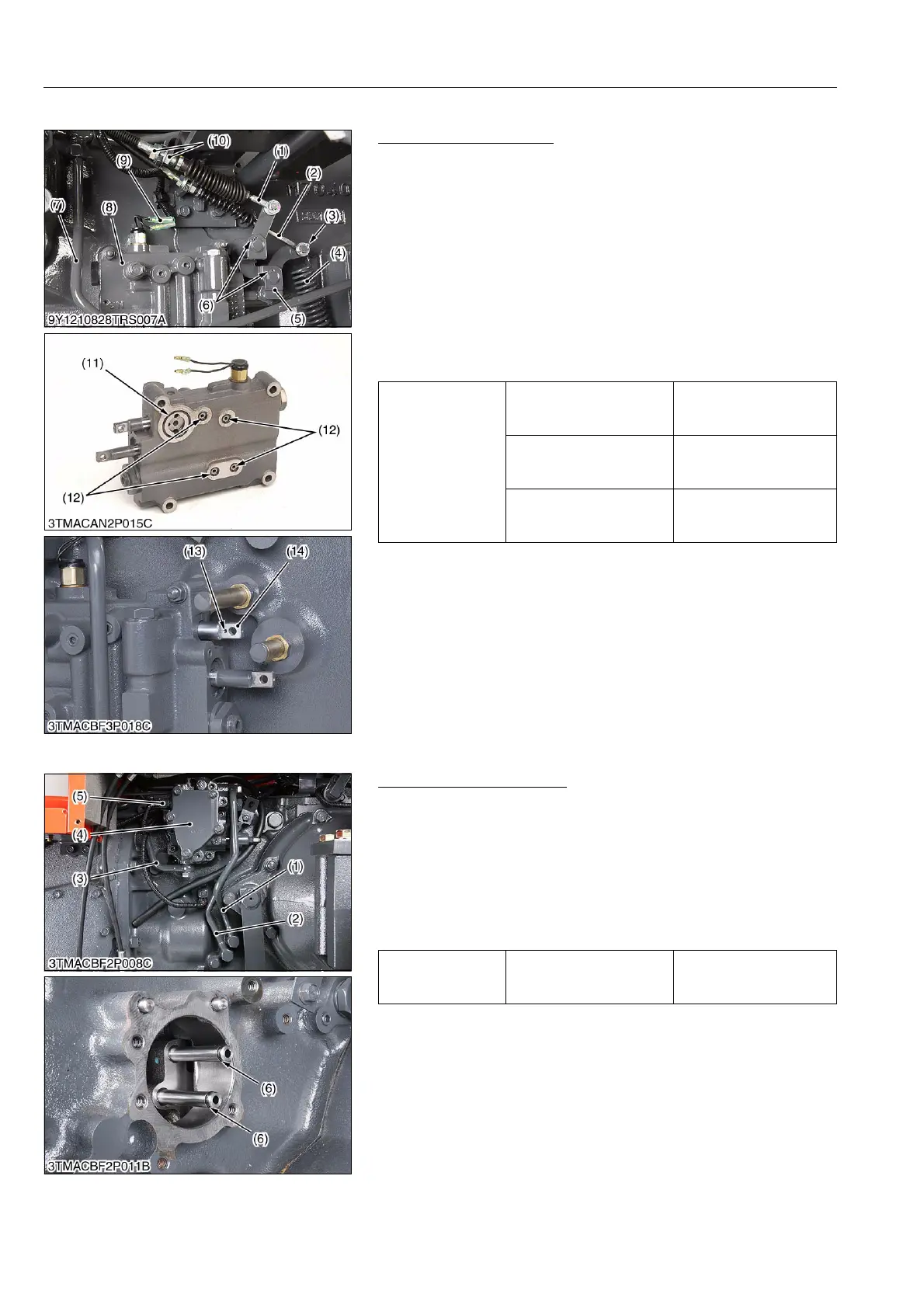

(3) Hydraulic Shuttle Valve
Shuttle Valve Assembly
1. Disconnect the shuttle cable (1).
2. Disconnect the clutch cable (2) and spring (4).
3. Remove the shuttle valve pipe (7).
4. Remove the external circlip (6) and plate (5).
5. Disconnect the neutral switch 1P connectors (9).
6. Remove the shuttle valve assembly (8).
(When reassembling)
• Be sure to fix the O-ring (11) in position as shown photo and
apply transmission fluid.
• Adjust the clutch pedal free travel (see page 2-S10).
• Turn the mark (13) to outward.
• Be sure that the split pins (3) are bent to both sides.
9Y1210828TRS0024US0
(4) Solenoid Valve Assembly
Solenoid Valve Assembly
1. Remove the I-joint screw (delivery pipe) (3).
2. Remove the I-joint screws (4WD pipe (1) and 2WD pipe (2)).
3. Remove the connector (5).
4. Remove the solenoid valve assembly (4).
(When reassembling)
• Apply transmission fluid to the O-rings (6).
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of transmission case and solenoid valve assembly.
9Y1210828TRS0025US0
Tightening torque
Shuttle valve pipe retaining
nut
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
Shuttle valve mounting
screw
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.2 lbf·ft
Clutch wire cable retaining
nut
23.5 to 27.5 N·m
2.40 to 2.80 kgf·m
17.4 to 20.2 lbf·ft
(1) Shuttle Cable
(2) Clutch Cable
(3) Split Pin
(4) Spring
(5) Plate
(6) External Circlip
(7) Shuttle Valve Pipe
(8) Shuttle Valve Assembly
(9) 1P Connector for Neutral Switch
(10) Clutch Wire Cable Retaining Nut
(11) O-ring
(12) O-ring
(13) Mark
(14) Shuttle Spool
Tightening torque
Joint screw for hydraulic
pipe
29.4 to 34.3 N·m
3.0 to 3.5 kgf·m
21.7 to 25.3 lbf·ft
(1) Pipe (2WD)
(2) Pipe (4WD)
(3) Pipe (Delivery)
(4) Solenoid Valve Assembly
(5) Connector
(6) O-ring
KiSC issued 08, 2013 A
