TRANSMISSION
M6060, M7060, WSM
2-M14

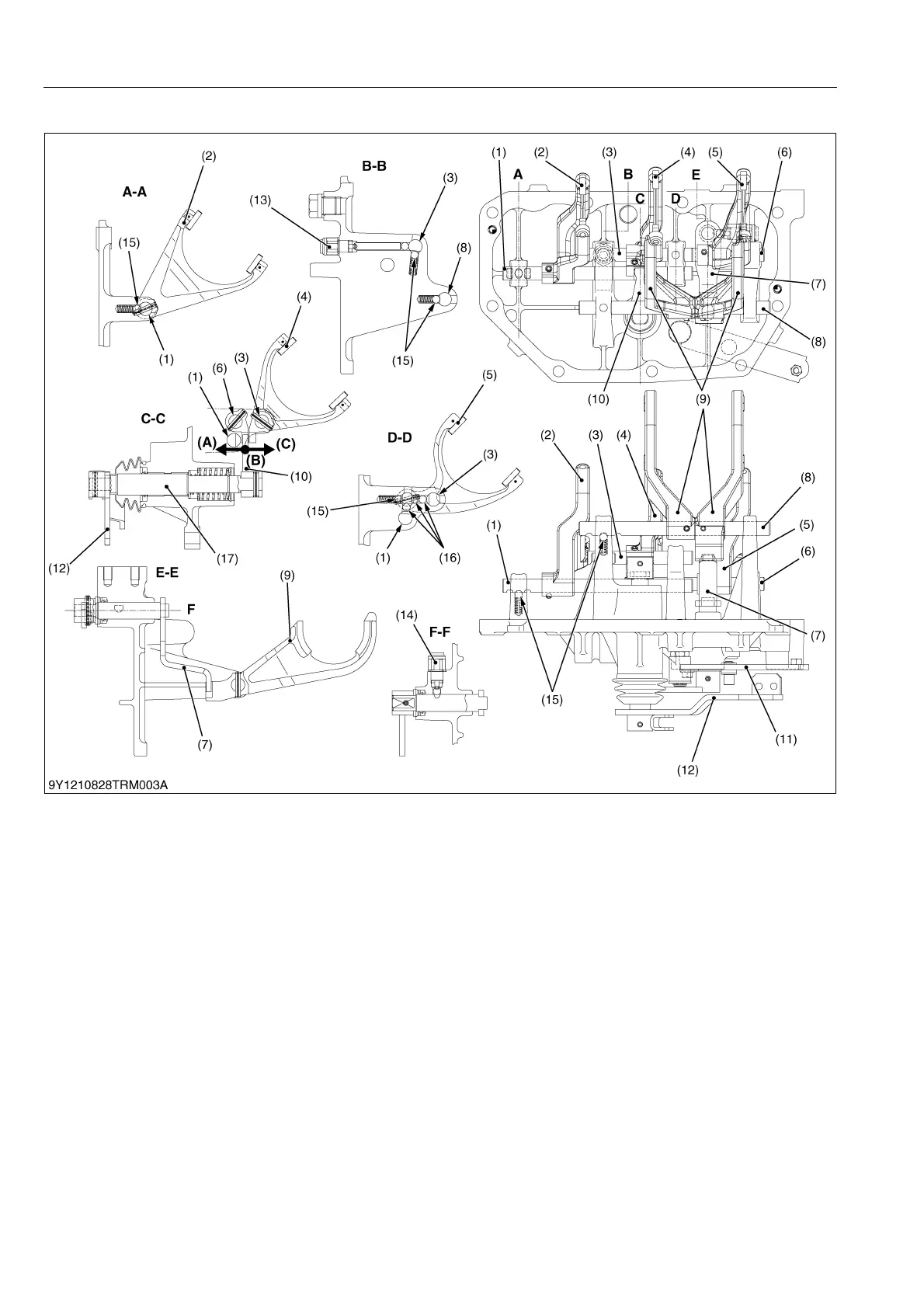

[5] SHIFT FORK ROD AND FORK
1. Interlock balls (16) restrain the movement of the 1st-2nd shift fork rod (1), 3rd-4th shift fork rod (6) and 5th-6th
shift fork rod (3) at the same time. As a result, double engagement of the gear is prevented.
2. Detent balls (15) prevent the self disengagement of the gears.
3. When operating the main shift lever (12) with select motion, the main shift arm (10) is pushed by the main shift
shaft (17).
Therefore, the main shift arm (10) selects (A) (1st-2nd shift fork rod (1)) or (B) (3rd-4th shift fork rod (6)) or (C)
(5th-6th shift fork rod (3)).
4. When operating the H-L-C lever (11), the H-L-C shift fork (9) engages to H, L or C position.
9Y1210828TRM0014US0
(1) 1st-2nd Shift Fork Rod
(2) 1st-2nd Shift Fork
(3) 5th-6th Shift Fork Rod
(4) 5th-6th Shift Fork
(5) 3rd-4th Shift Fork
(6) 3rd-4th Shift Fork Rod
(7) H-L-C Arm
(8) H-L-C Rod
(9) H-L-C Shift Forks
(10) Main Shift Arm
(11) H-L-C Lever
(12) Main Shift Lever
(13) Main Gear Shift (6th) Switch
(14) Range Gear Shift (Hi) Switch
(15) Detent Ball
(16) Interlock Ball
(17) Main Shift Shaft
(A) Engage to 1st-2nd Shift
Fork Rod
(B) Engage to 3rd-4th Shift Fork
Rod
(C) Engage to 5th-6th Shift Fork
Rod
