CABIN
M6060, M7060, WSM
9-S8
(Continued)
(Reference)
*PAG: Polyalkyleneglycol (Synthetic oil)
9Y1210828CAS0004US0
[1] HANDLING OF SERVICE TOOLS

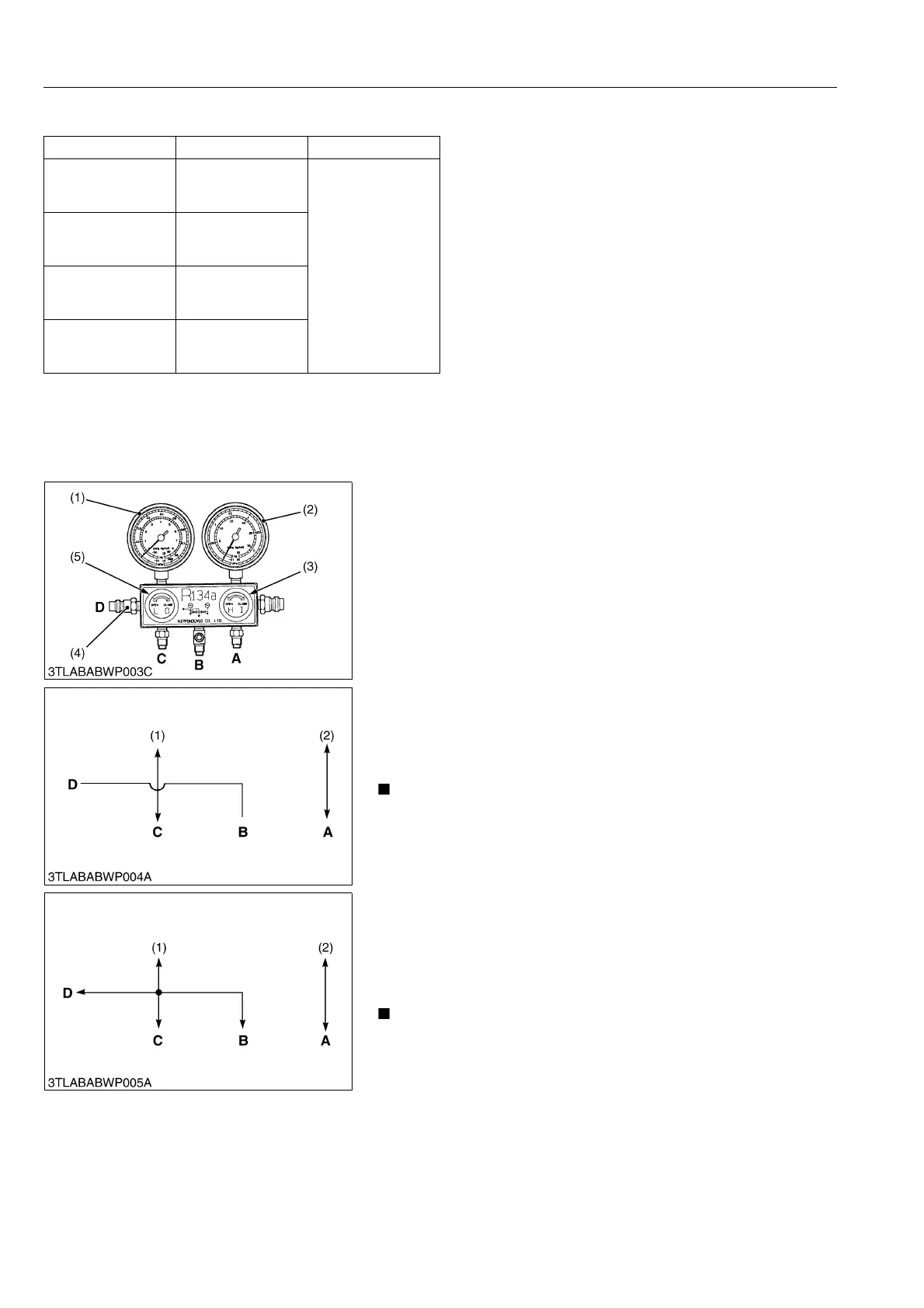

(1) Manifold Gauge Set
The hand valves on the manifold gauge set are used to open
and close the valve. The hand valve inscribed LO is for the low
pressure side valve (5) and HI is for the high pressure side valve (3).
By opening or closing the high and low pressure hand valves, the
following circuits are established.
9Y1210828CAS0005US0
 When LO Pressure Side Valve and HI Pressure Side Valve
are Closed
Two circuits are established.
Port (C) → LO pressure gauge (1)
Port (A) → HI pressure gauge (2)
NOTE
• Schrader valve (D) must be opened.
9Y1210828CAS0006US0
 When LO Valve is Opened and HI Valve is Closed
Two circuits are established.
Port (C) → LO pressure gauge (1)
→ Port (B)
→ Port (D)
Port (A) → HI pressure gauge (2)
NOTE
• Schrader valve (D) must be opened.
9Y1210828CAS0007US0
Replacing Parts Fill Quantity Brand Name
Condenser
40 cc
0.042 U.S.qts
0.035 Imp.qts
ND-OIL 8
<PAG* oil>
Evaporator
40 cc
0.042 U.S.qts
0.035 Imp.qts
Receiver
10 cc
0.011 U.S.qts
0.009 Imp.qts
Hose
10 cc
0.011 U.S.qts
0.009 Imp.qts
(1) LO Pressure Gauge
(2) HI Pressure Gauge
(3) HI Pressure Side Valve
(4) Schrader Valve
(5) LO Pressure Side Valve
