ENGINE
M6060, M7060, WSM
1-S19
(2) DPF Muffler
Muffler Pipe and DPF Muffler
1. Loosen the muffler band (1).
2. Remove the muffler pipe (2).
(When reassembling)
• Install the bolt of the muffler band (1) from the tractor's
outside to engine side.
• Be sure the center line of welded spacer (3) is accordance
with the one of muffler band (1).
• Be sure that the center line of under muffler pipe (4) is in
accordance with the one of the under muffler pipe (5).

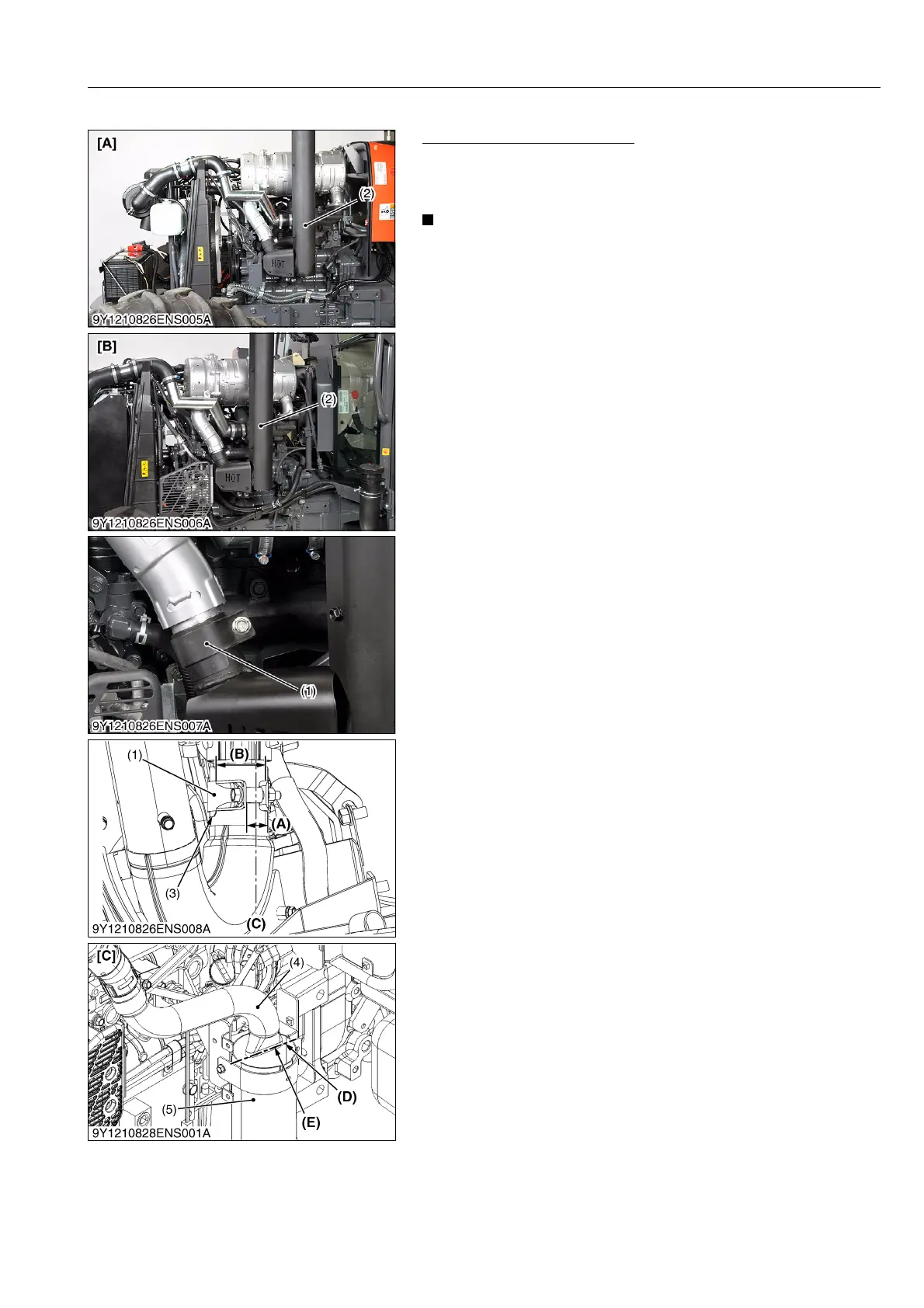

9Y1210828ENS0019US0
(1) Muffler Band
(2) Muffler Pipe
(3) Welded Spacer ("C" Shaped)
(4) Under Muffler Pipe (Upper)
(5) Under Muffler Pipe (Under)
(A) Between the muffler band (1)
(B) Between the welded spacer (3)
(C) Center line
(D) Center line of Under Muffler Pipe
(Upper)
(E) Center line of Under Muffler Pipe
(Under)
[A] ROPS Model
[B] CABIN Model
[C] Under Muffler Model
