ENGINE
M6060, M7060, WSM
1-M22

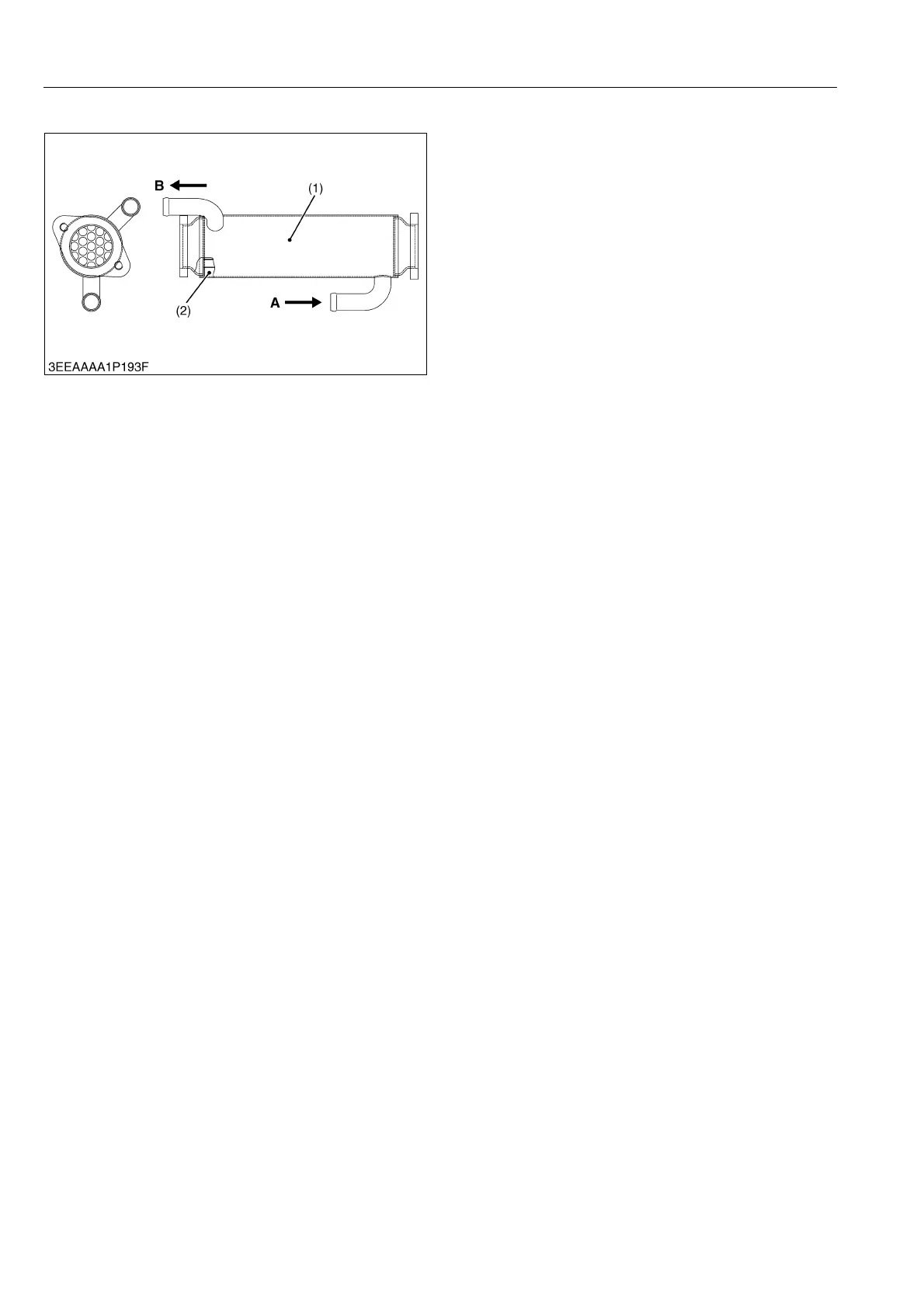

[3] EGR COOLER
The EGR (Exhaust Gas Recirculation) cooler (1) is
used to lower combustion temperature and efficiently
cool EGR gas, with the aim of reducing the NOx that is
in the exhaust gas of diesel engine.
The EGR cooler (1) is set between the cylinder head
and the EGR valve and returns the cooled exhaust
gases to the engine suction side.
The EGR cooler (1) has resistant to clogging up,
compact and efficient tubes (2) internally.
9Y1210828ENM0038US0
(1) EGR Cooler
(2) Tube
A: Coolant Inlet Port
B: Coolant Outlet Port
To Next Page
