BRAKES
M6060, M7060, WSM
4-S18

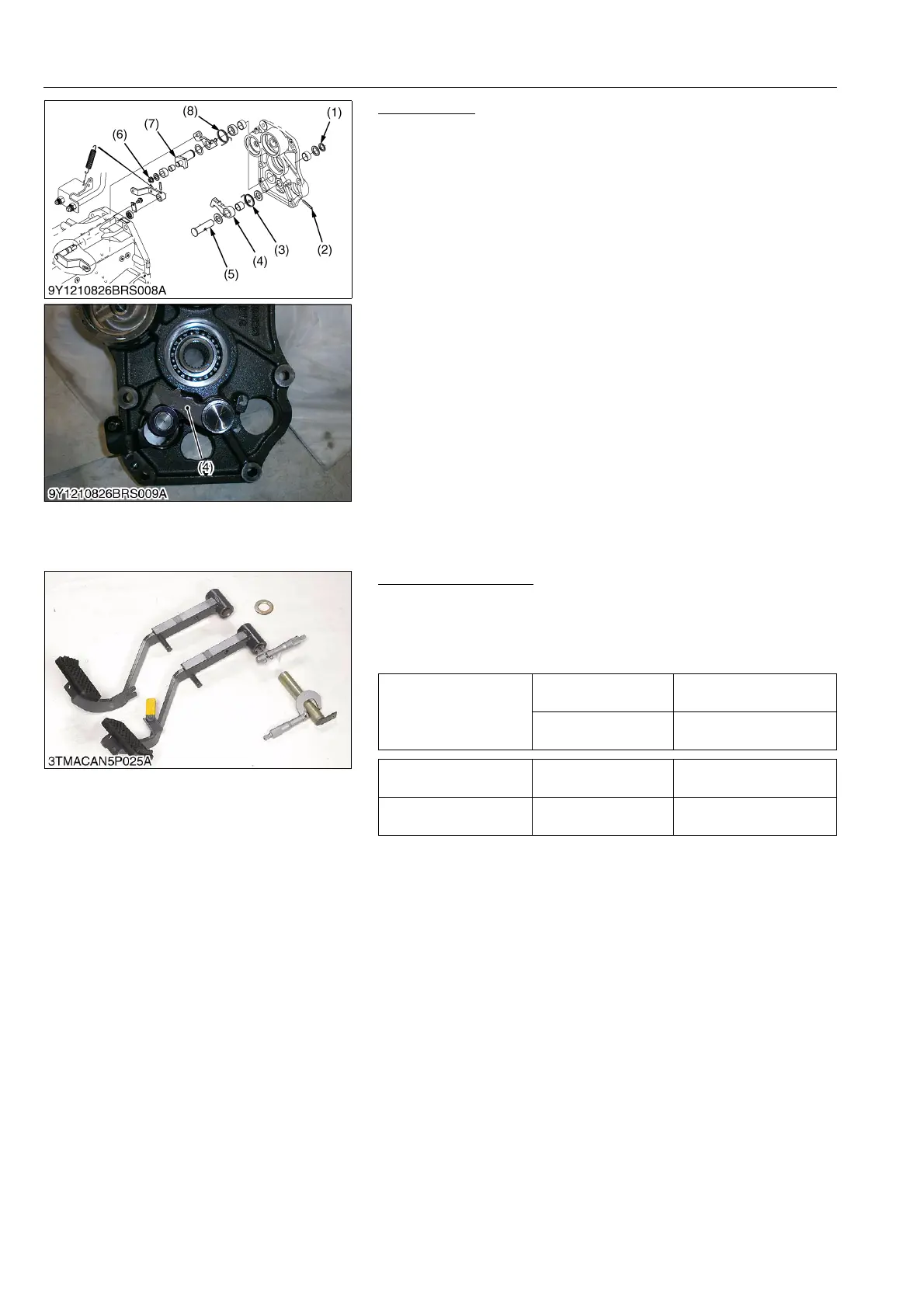

Parking Gear
1. Remove the external circlip and draw out the parking cam shaft.
2. Remove the parking gear (4) and remove the parking gear pin
and the parking gear.
9Y1210828BRS0028US0
[3] SERVICING
(1) Brake Pedal
Brake Pedal Bushing
1. Measure the brake pedal bushing I.D. with inside micrometer.
2. Measure the pedal shaft O.D. with outside micrometer and
calculate the clearance.
3. If the clearance exceeds the allowable limit, replace it.
9Y1210828BRS0029US0
(1) Circlip
(2) Roll Pin
(3) Parking Gear Spring
(4) Parking Gear
(5) Parking Gear Pin
(6) Circlip
(7) Parking Cam Shaft
(8) Parking Cam Spring
Clearance between
brake pedal bushing and
pedal shaft
Factory specification
0.0300 to 0.246 mm
0.00119 to 0.00968 in.
Allowable limit
0.5 mm
0.02 in.
Brake pedal bushing I.D. Factory specification
25.030 to 25.146 mm
0.98544 to 0.99000 in.
Pedal shaft O.D. Factory specification
24.9 to 25.0 mm
0.981 to 0.984 in.
