Front Axle Oil Seal

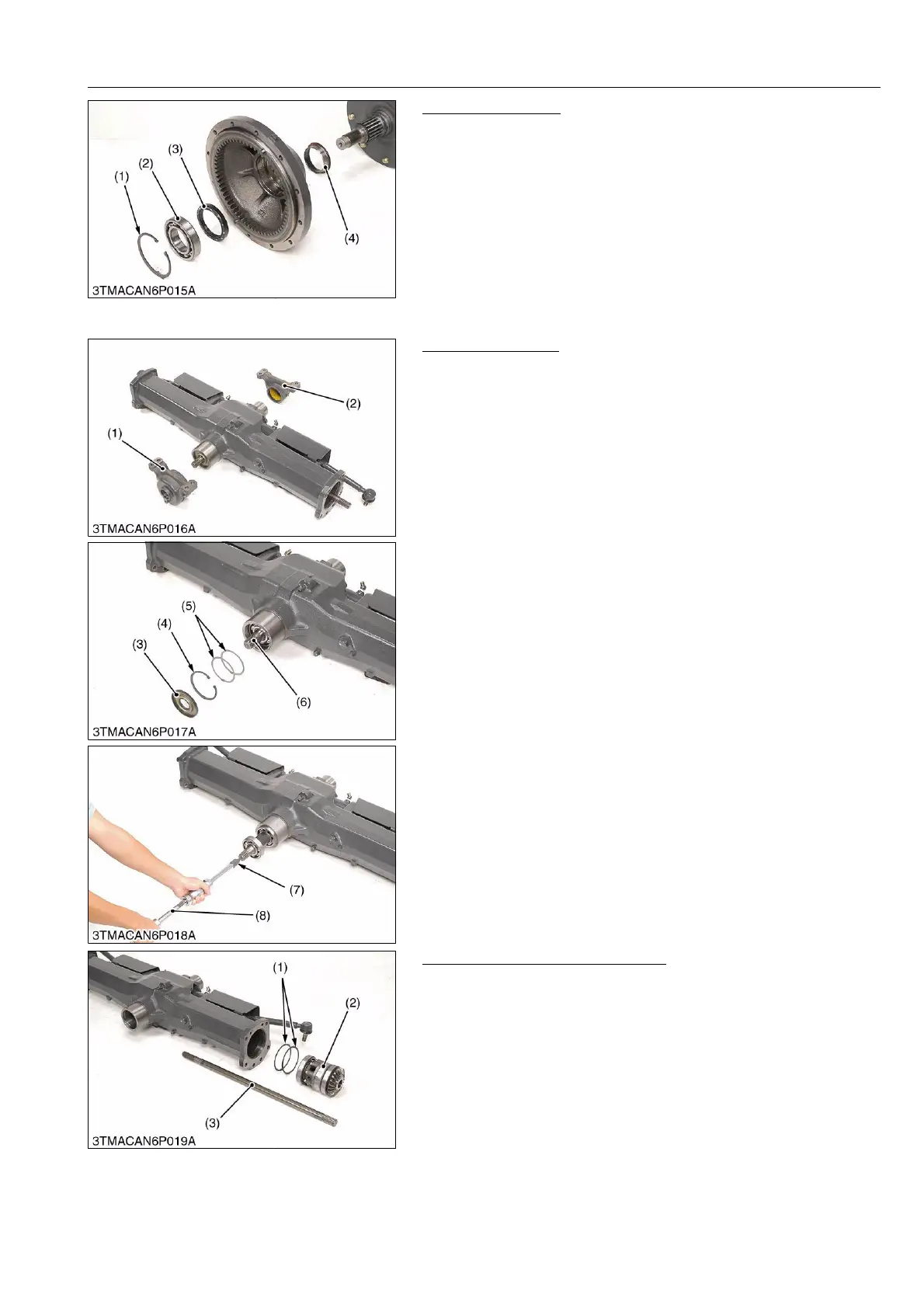

1. Remove the internal circlip (1) and tap out the bearing (2).
2. Draw out the oil seal (3), (4).
(When reassembling)
• Install the oil seal outward to the front wheel case cover so that
its lip faces the outward.
9Y1210828FAS0019US0
(3) Removing Differential Gear and Bevel Pinion Shaft
Bevel Pinion Shaft
1. Draw out the front bracket (2) and rear bracket (1).
2. Remove the oil seal (3), internal circlip (4) and shim (5).
3. Pull out the bevel pinion shaft (6) using a slide hammer (8).
(When reassembling)
• Replace oil seal (3) with new one.
• Install the oil seal (3) to the front axle case so that its lip faces
the inward.
• Apply grease to the DX bushing for bracket (1), (2).
(Reference)
• Adaptor for slide hammer : M6 pitch 1.0 mm.
(See page G-75.)
9Y1210828FAS0020US0
Differential Gear (LSD) Assembly
1. Draw out the both yoke shaft.
2. Tap out the differential gear (LSD) assembly (2) and shim (1) to
R.H. side.
9Y1210828FAS0021US0
(1) Internal Circlip
(2) Bearing
(3) Oil Seal
(4) Oil Seal
(1) Rear Bracket
(2) Front Bracket
(3) Oil Seal
(4) Internal Circlip
(5) Shim
(6) Bevel Pinion Shaft
(7) Adaptor for Slide Hummer
(8) Slide Hammer
(1) Shim
(2) Differential Gear (LSD) Assembly
(3) Yoke Shaft (R.H.)
