CABIN
M6060, M7060, WSM
9-S34
[2] DISASSEMBLING AND ASSEMBLING

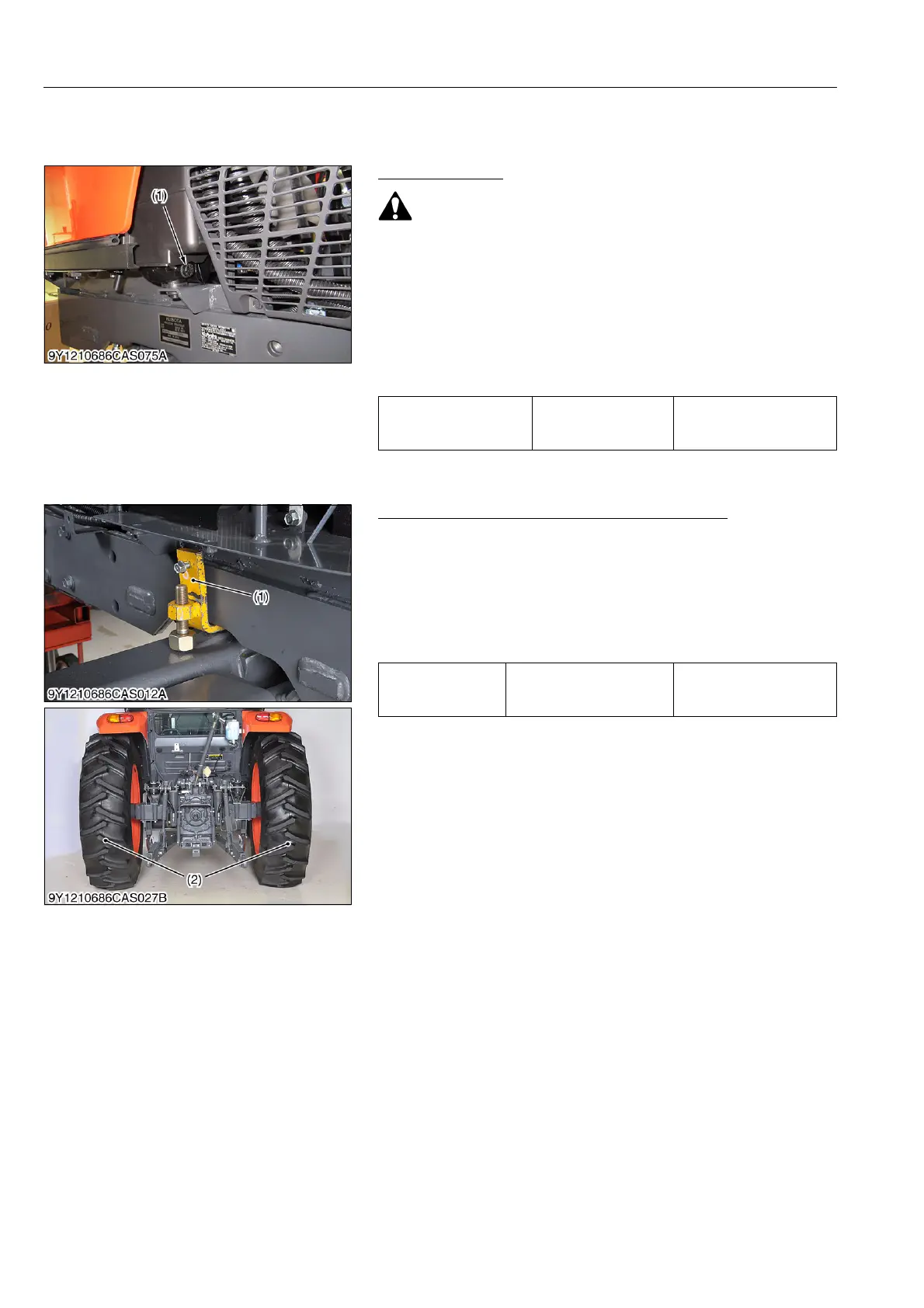

(1) Separating Cabin from Tractor
Draining Coolant
• Do not remove radiator cap while coolant is hot. When cool,
slowly rotate cap to the first stop and allow sufficient time
for excess pressure to escape before removing the cap
completely.
1. Stop the engine and let the engine cool down.
2. To drain the coolant, open the radiator drain plug (1). When
opening the drain plug, set the hose to drain port.
3. Remove the radiator cap to completely drain the coolant.
4. After all coolant is drained, reinstall the radiator drain plug.
9Y1210828CAS0058US0
Front Axle Rocking Restrictor and Rear Wheels
1. Chock the front wheel and install the front axle rocking
restrictors (1) to the front axle bracket in both sides. (See page
G-73.)
2. Place the disassembling stand under the transmission case and
drawbar bracket.
3. Remove the rear wheels (2).
4. Place the disassembling stand under the rear axle in both sides.
9Y1210828CAS0059US0
Coolant Capacity
9.0 L
9.5 U.S.qts
7.9 Imp.qts
(1) Drain Plug
Tightening torque Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
(1) Rocking Restrictor (2) Rear Wheel
