TRANSMISSION
M6060, M7060, WSM
2-S33

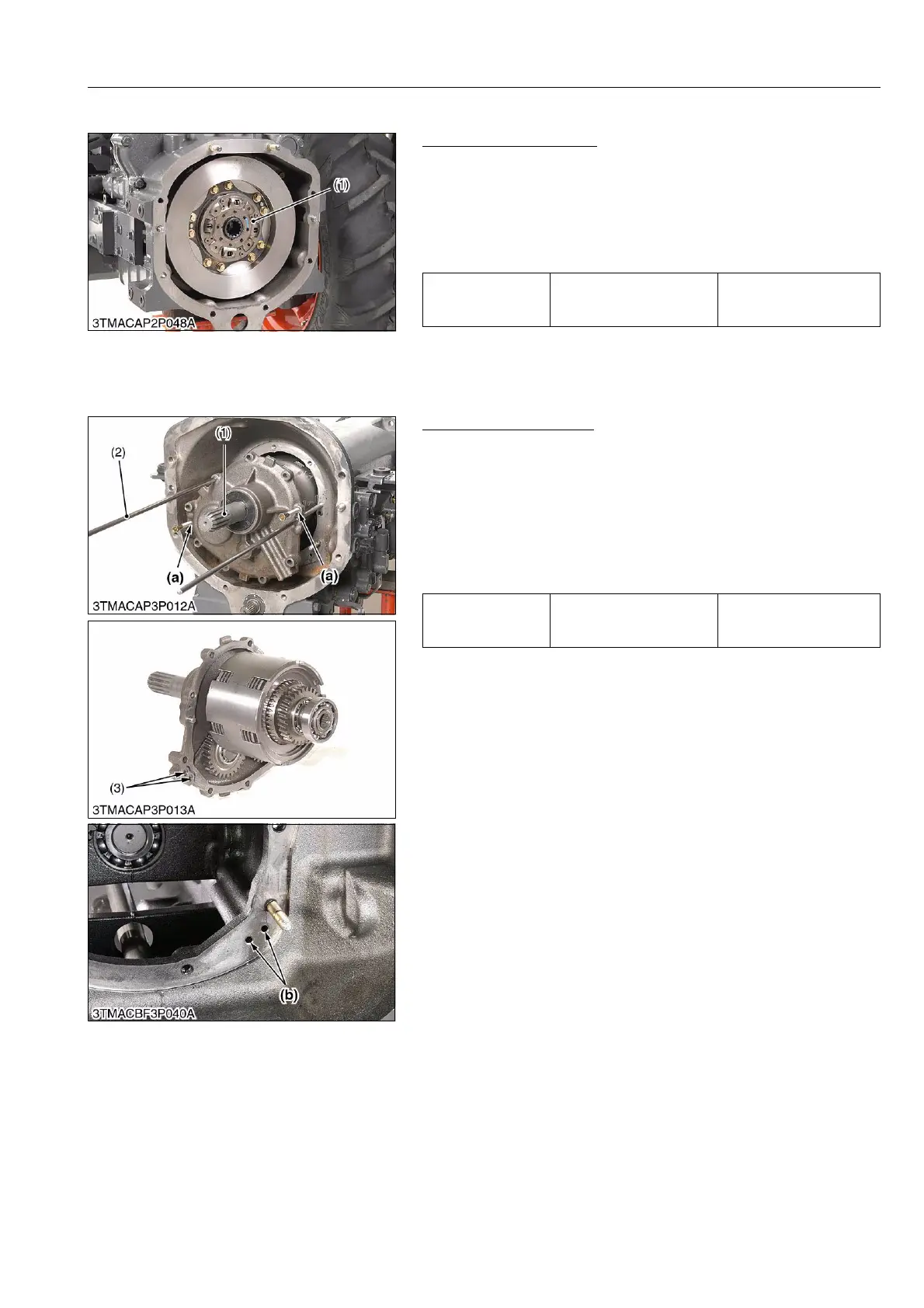

[6] DAMPER DISC
Removing Damper Disc
1. Remove the damper disc (1).
(When reassembling)
• Direct the shorter end of the damper disc boss toward the
flywheel.
• Apply molybdenum disulphide (Three Bond 1901 or equivalent)
to the spline.
9Y1210828TRS0048US0
[7] HYDRAULIC SHUTTLE CLUTCH
Shuttle Case Assembly
1. Remove the shuttle case mounting screws and nuts.
2. Remove the shuttle case assembly (1) by using M10 × Pitch
1.25 mm screws into holes (a) and guide screws (2).
(When reassembling)
• Be sure to fit the O-rings (3) and apply transmission fluid.
• The oil passage hole (b) is free from liquid gaskets.
• Apply liquid gaskets (Three Bond 1206C or equivalent) to joint
face of the shuttle case and clutch housing case.
9Y1210828TRS0049US0
Tightening torque
Damper disc mounting
screw
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft
(1) Damper Disc
Tightening torque
Shuttle case mounting
screw and nut
48.1 to 55.8 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft
(1) Shuttle Case Assembly
(2) Guide Screw
(3) O-ring
(a) Threaded Hole
(b) Oil Passage Hole
