ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S33
(2) Connector Pin (44 Pin)
9Y1210828ELS0055US0
No. Terminal Name No. Terminal Name
1 Shuttle revolution sensor 23 Traveling speed sensor
2 Foot brake switch 24 Hydraulic shuttle switch (neutral)
3 RXD (for check) 25 TXD (for check)
4 4WD switch 26 Blank
5 Throttle sensor (Main) 27 Throttle sensor (sub)
6 Blank 28 Blank
7 CAN (H) 29 CAN (L)
8 Sub range gear shift switch 30 Blank
9 DPF regeneration switch 31 +5V (Sensor use)
10 DPF auto switch 32 GND (Ground for sensor line)
11 Blank 33 Turning angle inspection switch
12 Blank 34 Bi-Speed switch
13 Power Supply Monitor 35 PTO switch
14 Constant RPM management switch 36 Blank
15 6th range switch 37 Battery GND
16 PTO shift switch (540E) 38 DPF regeneration lamp
17 Blank 39 DPF AUTO lamp
18 Dual speed (H-L) switch 40 4WD solenoid
19 +B (Direct) 41 Bi-Speed solenoid
20 +B (to main switch) 42 Blank
21 Blank 43 Blank
22 Blank 44 PTO relay

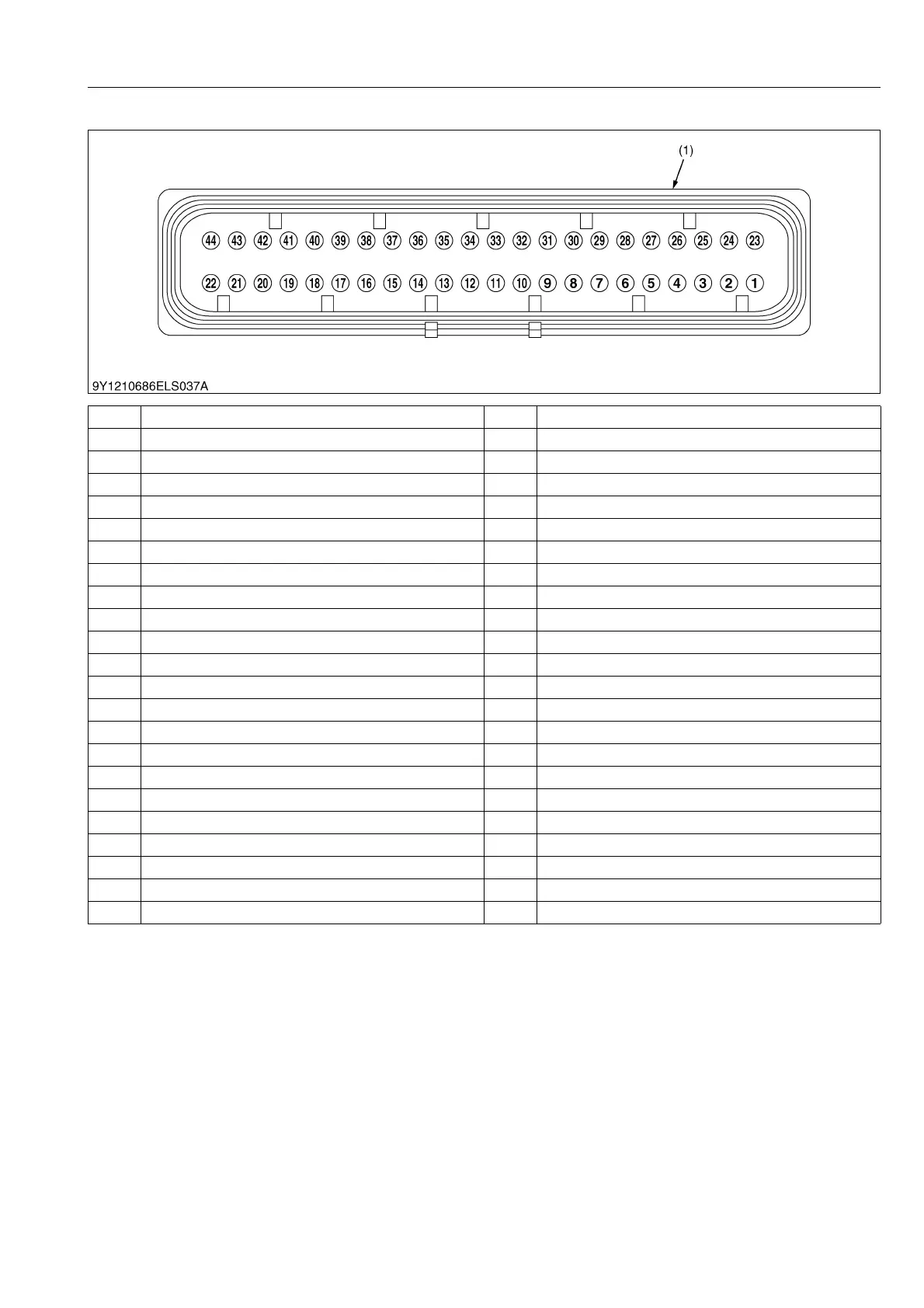

(1) Tractor ECU Connector
To Next Page
