TRANSMISSION
M6060, M7060, WSM
2-S46

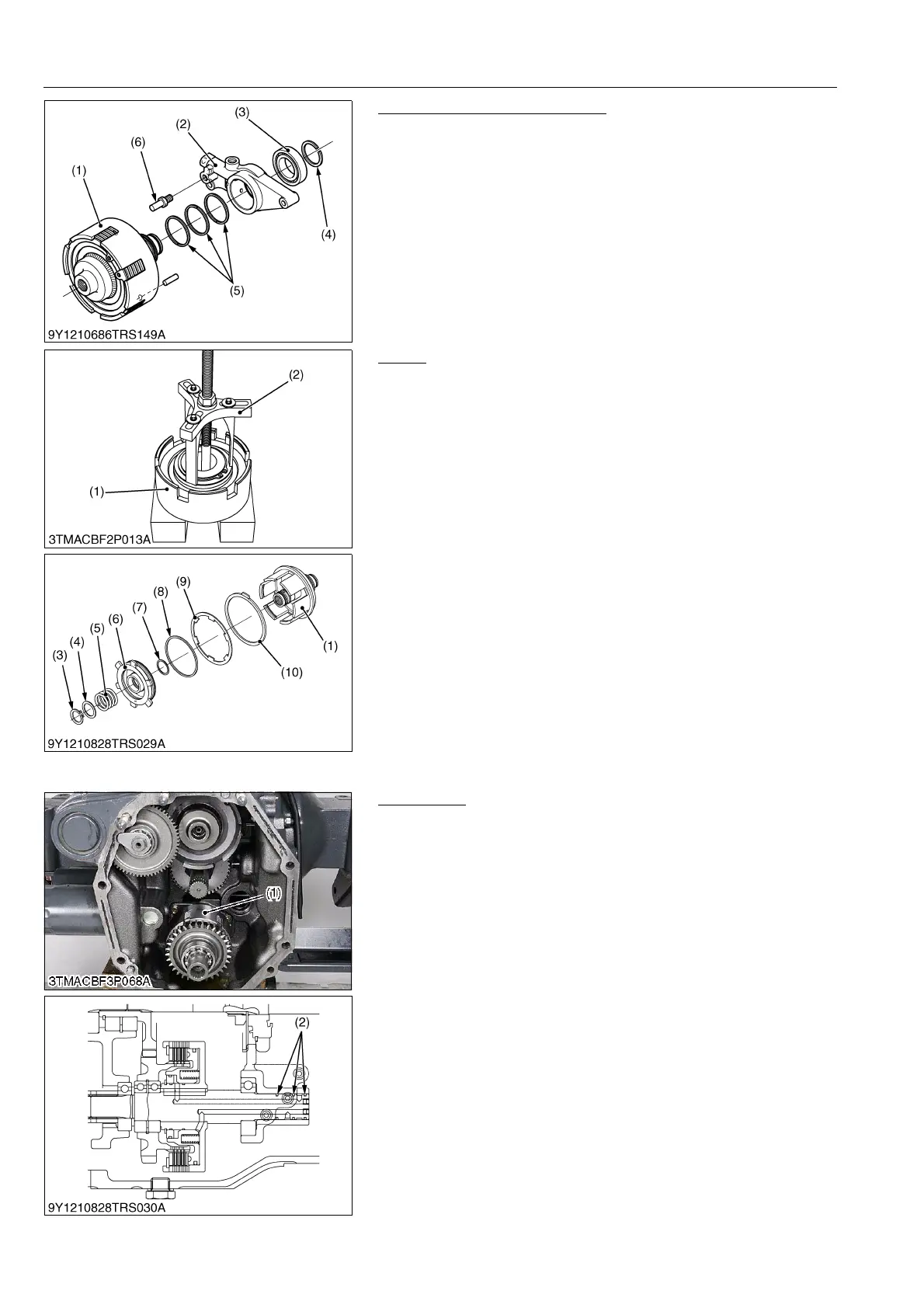

Clutch Case and Clutch Holder
1. Remove the external circlip (4).
2. Remove the clutch holder (2).
(When reassembling)
• Apply small amount of grease to the seal rings (8).
• Apply liquid lock (Three Bond 1324N or equivalent) to the thread
part of pin (6).
9Y1210828TRS0070US0
Piston
1. Press the washer (4) lightly by the hand press, using the
hydraulic clutch spring compressor. (See page G-77.)
2. Remove the external circlip (3).
3. Remove the piston (6), the brake plate (9) and the brake disk
(10).
(When reassembling)
• Apply enough transmission fluid to seal ring (7) and (8).
9Y1210828TRS0071US0
(4) Removing 4WD Clutch
4WD Clutch
1. Remove the 4WD clutch (1).
(When reassembling)
• Replace the seal rings (2) with new one.
• Apply grease to the seal rings (2) when assembling.
9Y1210828TRS0072US0
(1) Clutch Case
(2) Clutch Holder
(3) Bearing
(4) External Circlip
(5) Seal Ring
(6) Pin
(1) Clutch Case
(2) Hydraulic Clutch Spring
Compressor
(3) External Circlip
(4) Washer
(5) Spring
(6) Piston
(7) Seal Ring
(8) Seal Ring
(9) Brake Plate
(10) Brake Disk
(1) 4WD Clutch (2) Seal Ring
KiSC issued 08, 2013 A
