wsm M6060 - Oil Flow

TRANSMISSION
M6060, M7060, WSM
2-M4

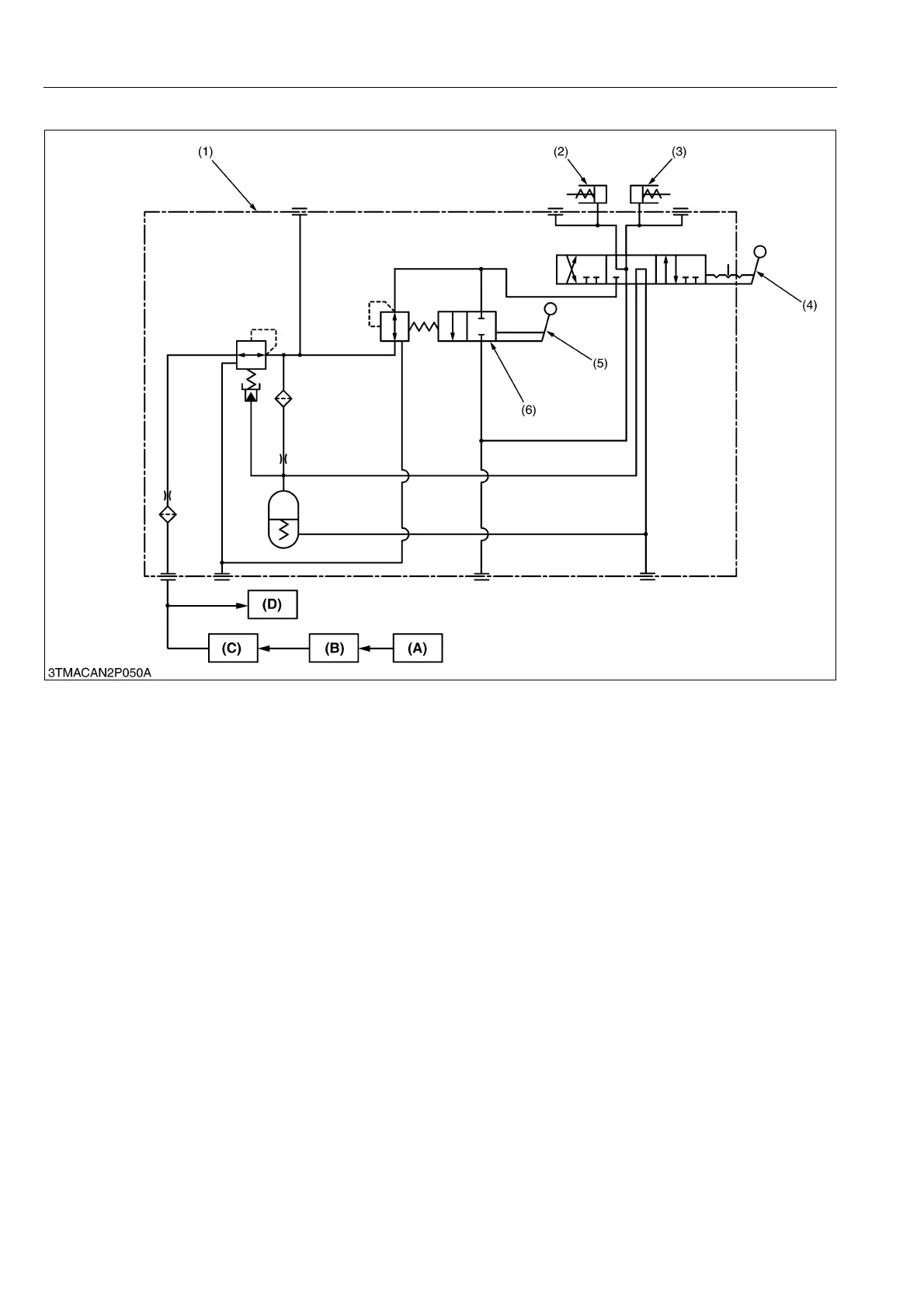

(2) Oil Flow
When the shuttle lever (4) shifts to the forward or reverse, the oil flows to the forward or reverse clutch (2), (3)
respectively.
When the oil is feeding in the clutch pack and the clutch is depressed, the feeding oil returns to the tank through
the spool (6), and the clutch is in a "Disengage" condition.
9Y1210828TRM0004US0
(1) Shuttle Valve
(2) Reverse Clutch
(3) Forward Clutch
(4) Shuttle Lever
(5) Clutch Pedal
(6) Spool
(A) Pump
(B) Power Steering Contoller
(C) Oil Cooler
(D) PTO Clutch
KiSC issued 08, 2013 A
