REAR AXLE
M6060, M7060, WSM
3-S4
4. DISASSEMBLING AND ASSEMBLING
[1] PREPARATION FOR DISASSEMBLING AND ASSEMBLING
VALVE

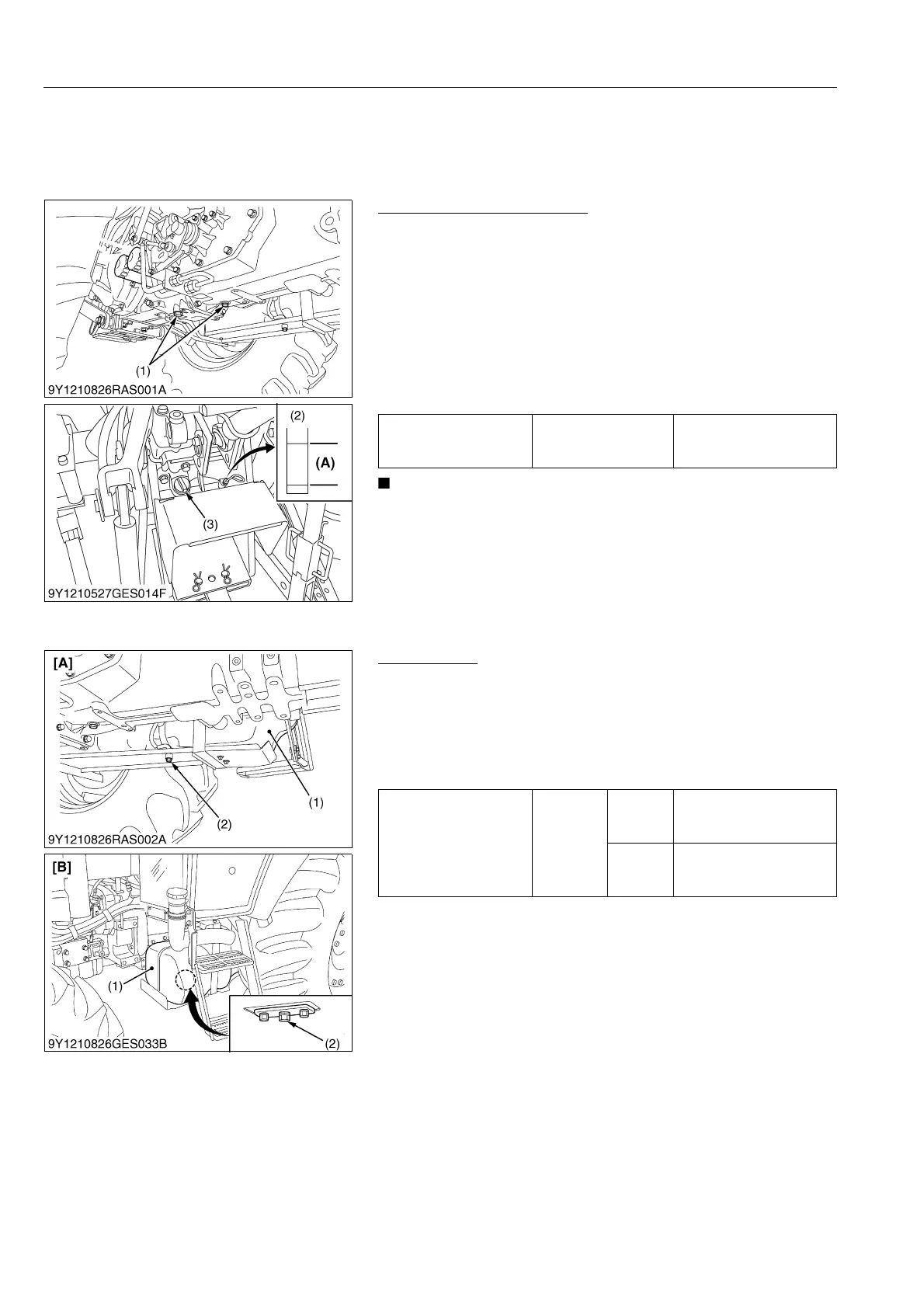

Draining Transmission Fluid
1. Place oil pan underneath the transmission case.
2. Remove the drain plugs (1).
3. Drain the transmission fluid.
4. Reinstall the drain plugs (1).
(When reassembling)
• Fill up from dipstick (2) after removing the filling plug up to the
upper notch on the filling port (3).
• After running the engine for a few minutes, stop it and check the
fluid level again, add the fluid to prescribed level if it is not
correct level.
IMPORTANT
• Use only KUBOTA SUPER UDT fluid. Use of other oil may
damage the transmission or hydraulic system. (Refer to
G-14.)
• Do not mix different brands fluid together.
9Y1210828RAS0004US0
Draining Fuel
1. Place oil pans under the right side fuel tank.
2. Remove the drain cover (2) at the bottom of side fuel tank (1).
3. Drain the fuel.
4. Reinstall the drain cover (2) on the fuel tank (1).
(When reassembling)
• Be sure to fix the O-ring is in position on the drain cover (2).
9Y1210828RAS0005US0
Transmission fluid Capacity
56.0 L
59.2 U.S.qts
49.3 Imp.qts
(1) Drain Plug
(2) Dipstick
(3) Filling Port
(A) Oil level is acceptable with this
range.
Fuel tank Capacity
ROPS
70 L
18.5 U.S.gals
15 Imp.gals
CABIN
90 L
23.0 U.S.gals
20 Imp.gals
(1) Fuel Tank
(2) Drain Cover
[A] ROPS Model
[B] CABIN Model
KiSC issued 08, 2013 A
