[13] GROUND PTO AND LIVE PTO
Top Cover Assembly and PTO Gear Case Assembly

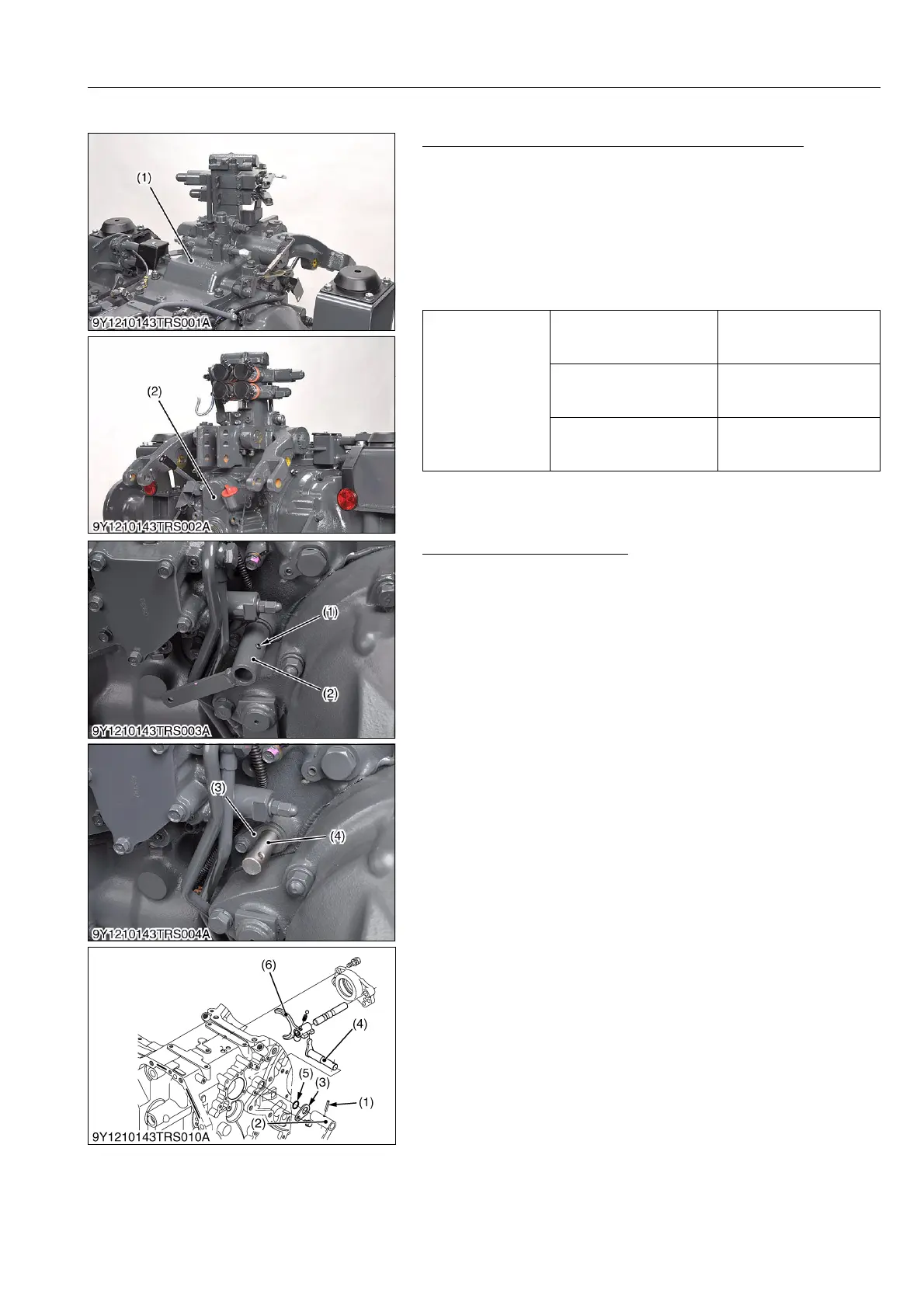

1. Remove the 3-point hitch hydraulic block mounting screws and
nuts.
2. Remove the 3-point hitch hydraulic block assembly (1).
3. Remove the PTO gear case (2) and PTO drive shaft as a unit.
(When reassembling)
• Apply liquid gaskets (Three Bond 1206C or equivalent) to joint
face of the 3-point hitch hydraulic block (1) and PTO gear case
(2).
9Y1210828TRS0086US0
Ground PTO Lever and Arm
1. Remove the roll pin (1) and ground PTO lever (2).
2. Remove the retainer plate (3).
3. Pull the arm (4) to disconnect the ground PTO shift fork (6).
(When reassembling)
• Be sure to assemble the O-ring (5) properly.
• Be sure to assemble the arm (4) to the ground PTO shift fork (6).
9Y1210828TRS0087US0
Tightening torque
3-point hitch hydraulic
block mounting screw
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.0 lbf·ft
3-point hitch hydraulic
block mounting nut
123.6 to 147.1 N·m
12.61 to 15.00 kgf·m
91.17 to 108.4 lbf·ft
PTO gear case mounting
screw and nut
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
(1) 3-Point Hitch Hydraulic Block (2) PTO Gear Case Assembly
(1) Roll Pin
(2) Ground PTO Lever
(3) Retainer Plate
(4) Arm
(5) O-ring
(6) Ground PTO Shift Fork
