ENGINE
M6060, M7060, WSM
1-S24

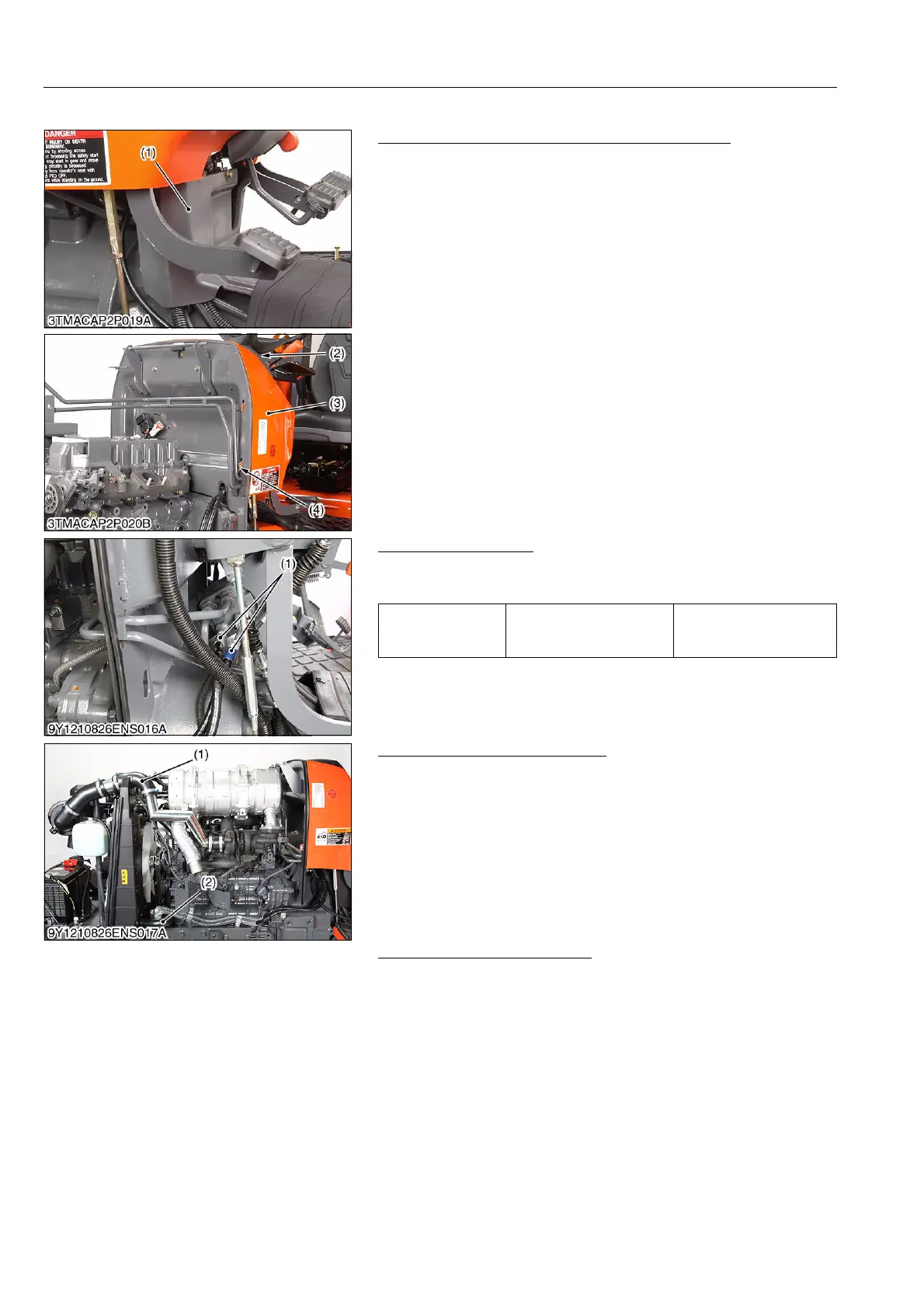

(5) Separating Engine From Clutch Housing (ROPS Model)
Steering Support Under Cover and Rear Bonnet
1. Remove the steering support under cover (1).
2. Loosen the rear bonnet mounting screws (4).
3. Remove the shuttle lever guide (2) and rear bonnet (3).
9Y1210828ENS0025US0
Power Steering Hose
1. Disconnect the steering hoses (1).
(When reassembling)
9Y1210828ENS0026US0
Inlet air hose and coolant hose
1. Disconnect the inlet air hose (1).
2. Disconnect the coolant hose (2).
9Y1210828ENS0027US0
Connector and Wire Harness
1. Disconnect all connectors and clamp from the engine.
9Y1210828ENS0028US0
(1) Steering Support Under Cover
(2) Shuttle Lever Guide
(3) Rear Bonnet
(4) Screw
Tightening torque
Power steering hose
retaining nut
22.6 to 27.5 N·m
2.3 to 2.8 kgf·m
16.6 to 20.3 lbf·ft
(1) Steering Hose
(1) Inlet Air Hose (2) Coolant Hose
To Next Page
