HYDRAULIC SYSTEM

M6060, M7060, WSM

7-S17

[5] OIL COOLER CHECK VALVE (FOR F18/R18 SPEED

TRANSMISSION MODEL)

Operating Pressure of Oil Cooler Check Valve

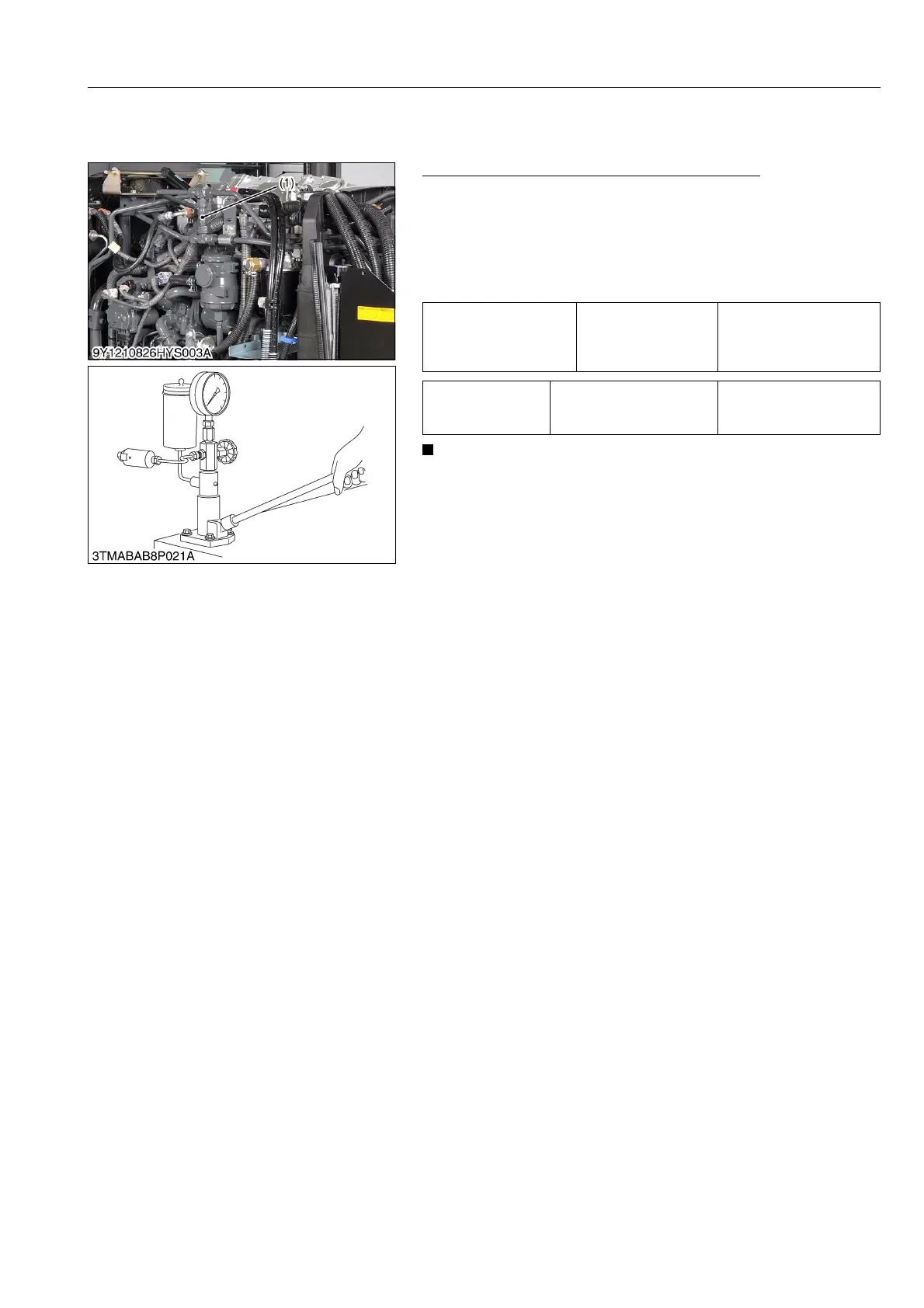

1. Attach the oil cooler check valve to a injection nozzle tester with

a relief valve adaptor (see page G-82).

2. Measure the operating pressure of the oil cooler check valve

(1).

3. If the pressure is not within the factory specifications, replace

relief valve with the new one.

NOTE

• Use specified transmission fluid (see page G-13) to test the

operating pressure of the oil cooler check valve (1).

9Y1210828HYS0015US0

Oil cooler check valve

operating pressure

Factory specification

Approx.

0.8 MPa

8 kgf/cm

100 psi

Tightening torque

Oil cooler check valve

retaining nut

49 to 68 N·m

5.0 to 7.0 kgf·m

37 to 50 lbf·ft

(1) Oil Cooler Check Valve
