TRANSMISSION
M6060, M7060, WSM
2-S27
[4] SEPARATING CLUTCH HOUSING CASE FROM TRANSMISSION
CASE
(1) Preparation for ROPS Model
ROPS, Lower Link, Lift Rod and Rear Wheel
1. Loosen the ROPS under frame (4) mounting screws. (Do not
remove screws.)
2. Remove the ROPS upper frame (1).
3. Remove the lift rod (5) and lower link (6).
4. Chock the front wheels and place the disassembling stand
under the transmission case.
5. Remove the both rear wheels (7) and then place the
disassembling stand under the rear axle case.
6. Remove the fuel tank.
(When reassembling)
• To assemble the ROPS, fix the upper frame with screw (2) and
pin (3) temporarily, then tighten the under frame screws evenly
with specified torque.
• Adjust the upper frame does not fall down with screw (2).
9Y1210828TRS0034US0
Tightening torque
Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
ROPS under frame
mounting screw (M16, 9T)
260 to 304 N·m
26.5 to 31.0 kgf·m
192 to 224 lbf·ft
ROPS upper frame lift up
force at center of upper
frame
Reference value
246 to 284 N
25.0 to 29.0 kgf
55.2 to 63.9 lbf

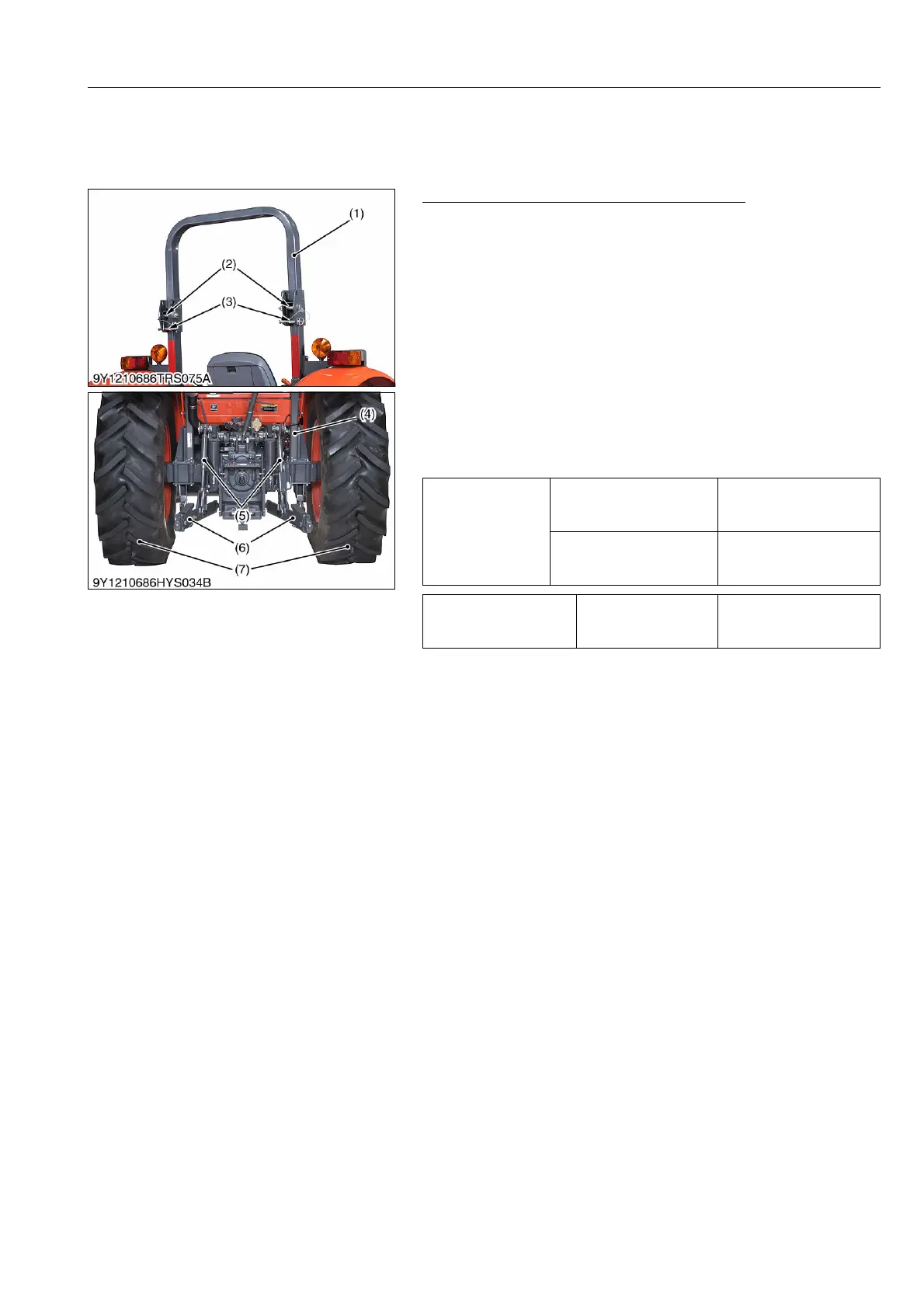

(1) ROPS Upper Frame
(2) Screw
(3) Pin
(4) ROPS Under Frame
(5) Lift Rod
(6) Lower Link
(7) Rear Wheel
To Next Page
