BRAKES
M6060, M7060, WSM
4-M1
1. TRAVELLING BRAKE

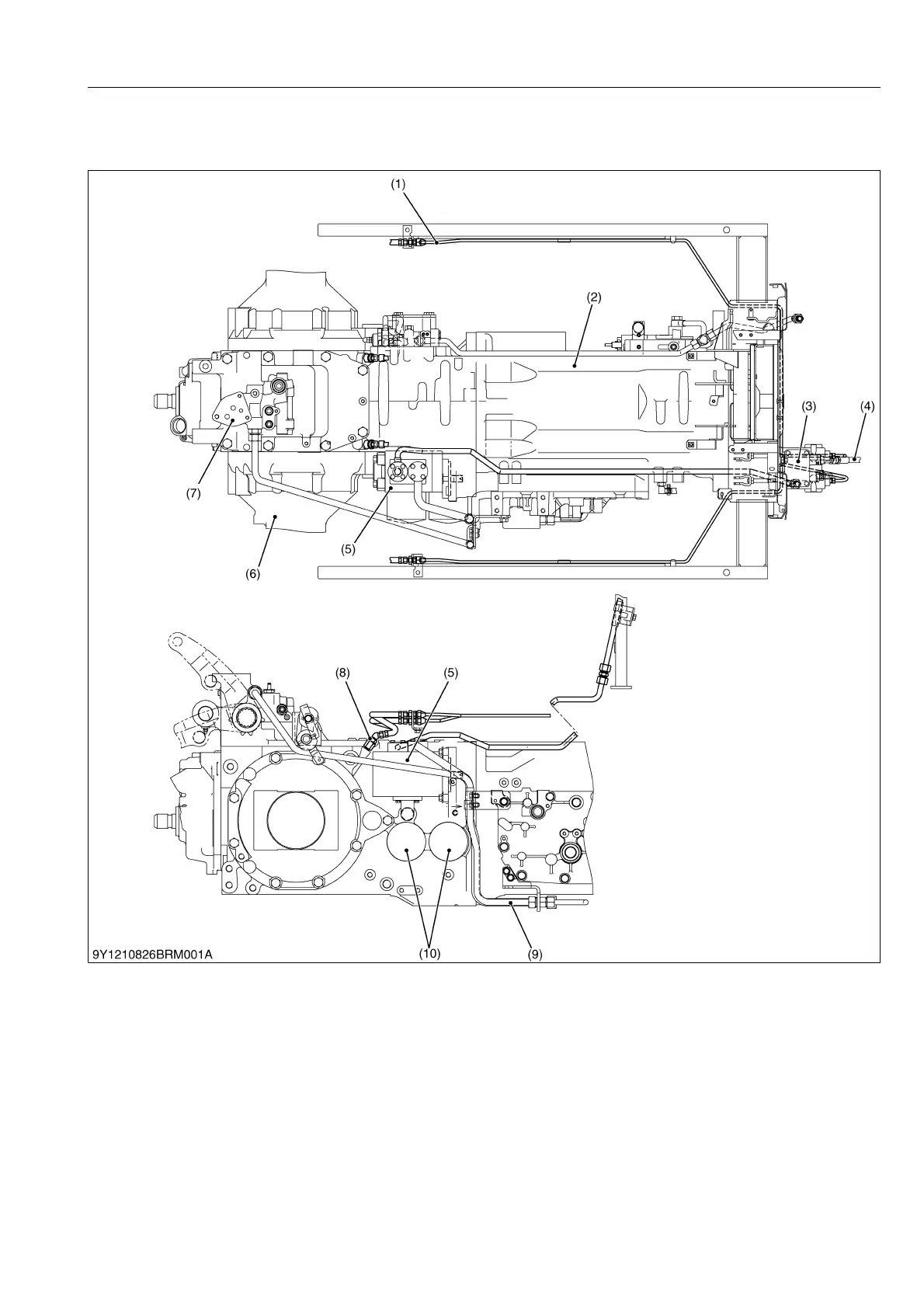

[1] STRUCTURE (HYDRAULIC BRAKE MODEL)
9Y1210828BRM0001US0
(1) Brake Pipe
(2) Transmission Case
(3) Master Cylinder
(4) Delivery Pipe
(From Steering)
(5) Hydraulic Pump
(6) Rear Axle
(7) Auxiliary Control Valve
(8) Delivery Hose
(To Brake Piston)
(9) Delivery Pipe
(From Hydraulic Pump)
(10) Hydraulic Filter
