wsm M6060 User Manual

CABIN
M6060, M7060, WSM
9-S55

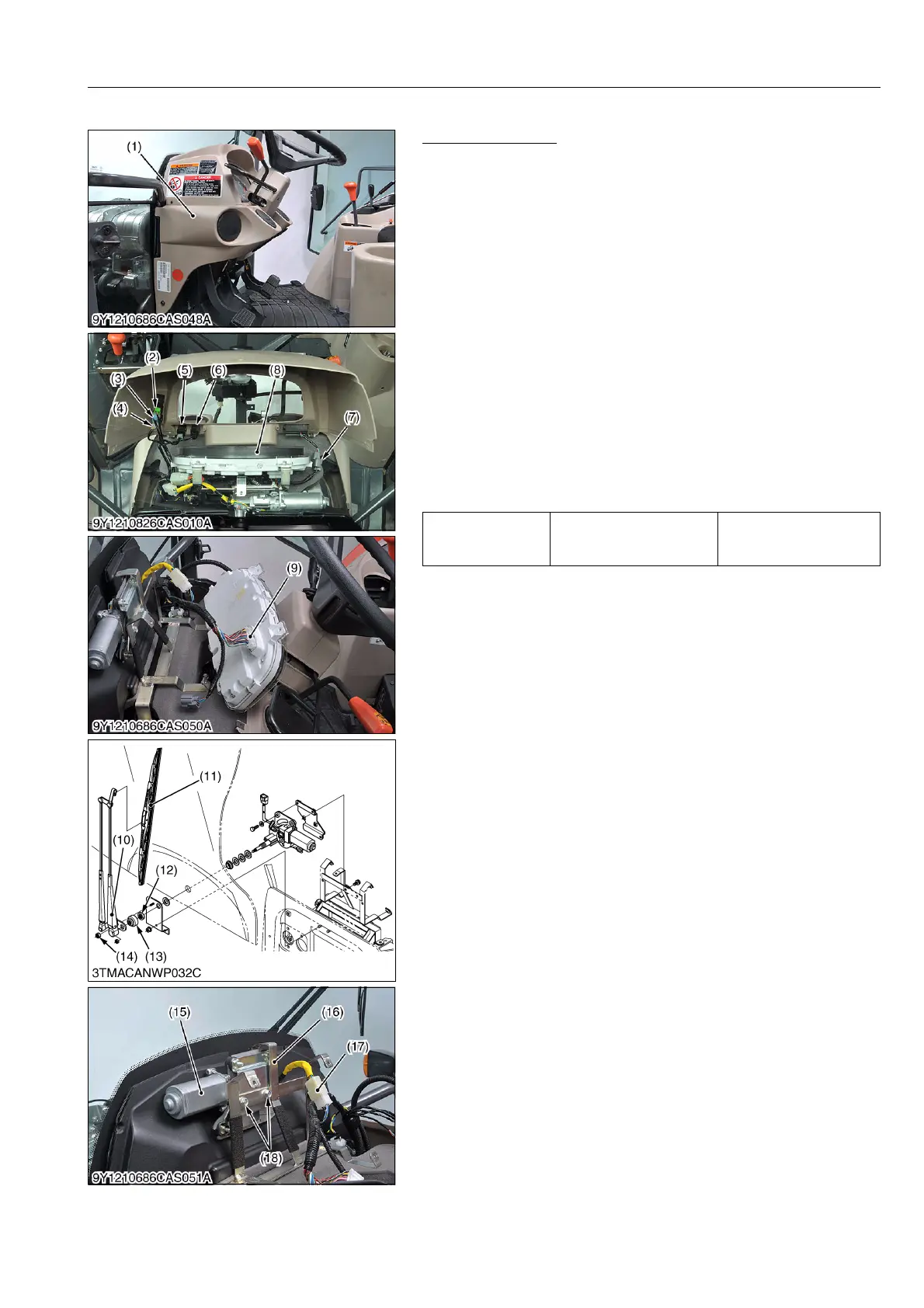

(7) Wiper Motor
Front Wiper Motor
1. Remove the panel cover (1).
2. Disconnect the 6P connector (2) from constant RPM
management switch.
3. Disconnect the 6P connector (3) from parked regeneration
switch.
4. Disconnect the 6P connector (4) from auto regeneration switch.
5. Disconnect the 6P connector (5) from hazard light switch.
6. Disconnect the 6P connector (6) from horn button.
7. Disconnect the 3P connector (7) from display switch.
8. Remove the meter panel (8).
9. Disconnect the 40P connector (9) from meter panel (8) and
remove the meter panel (8).
10. Disconnect the 4P connector (17) from front wiper motor (15).
11. Remove the wiper arm mounting nut 2 (14) and wiper arm (10).
12. Remove the wiper link cap (13) and nut 1 (12).
13. Disconnect the earth lead setting screw.
14. Remove the front wiper motor bracket (16) mounting screws
(18), then remove the front wiper motor (15).
(When reassembling)
9Y1210828CAS0100US0
Tightening torque Wiper arm mounting nut
6.9 to 9.8 N·m
0.70 to 1.0 kgf·m
5.1 to 7.2 lbf·ft
(1) Panel Cover
(2) 6P Connector (Constant RPM
Management Switch)
(3) 6P Connector (Parked
Regeneration Switch)
(4) 6P Connector (Auto Regeneration
Switch)
(5) 6P Connector (Hazard Light Switch)
(6) 6P Connector (Horn Button)
(7) 3P Connector (Display Switch)
(8) Meter Panel
(9) 40P Connector (Meter Panel)
(10) Wiper Arm
(11) Wiper Blade
(12) Nut 1
(13) Wiper Link Cap
(14) Nut 2
(15) Wiper Motor
(16) Wiper Motor Bracket
(17) 4P Connector (Wiper Motor)
(18) Screw
KiSC issued 08, 2013 A
