STEERING
M6060, M7060, WSM
6-S8

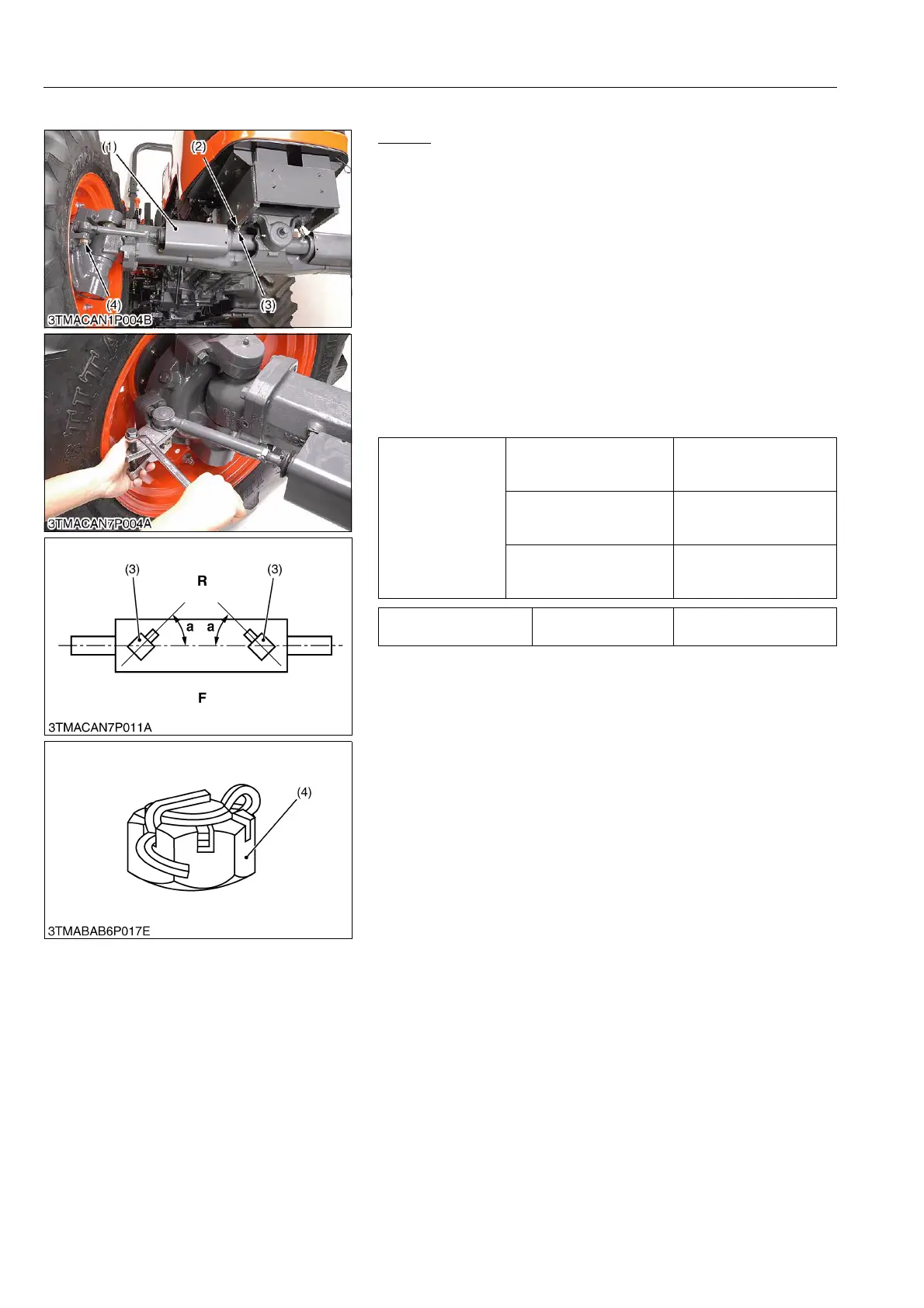

(5) Removing Steering Cylinder
Tie-rod
1. Remove the both cylinder covers (1).
2. Disconnect the both power steering delivery hoses (2) from
cylinder.
3. Remove the both hose joints (3) from steering cylinder.
4. Pull out the cotter pin and remove the tie-rod end slotted nuts
(4).
5. Remove the tie-rod with a tie-rod end lifter (Code No.
07909-39051).
(When reassembling)
• Apply teflon tape to joint and set the joint as shown in figure.
• Replace cotter pin with a new one.
• After tightening the tie-rod end nut to the specified torque, install
a cotter pin as shown in the figure left.
• After assembling the power steering cylinder and tie-rod, check
the toe-in and adjust it if necessary.
9Y1210828STS0011US0
Tightening torque
Power steering delivery
hose
22.6 to 27.5 N·m
2.3 to 2.8 kgf·m
16.6 to 20.3 lbf·ft
Tie-rod end slotted nut
156.8 to 176.4 N·m
15.99 to 17.98 kgf·m
115.7 to 130.1 lbf·ft
Hose joint
29.4 to 34.3 N·m
3.0 to 3.5 kgf·m
21.7 to 25.3 lbf·ft
Toe-in Factory specification
2.0 to 8.0 mm
0.079 to 0.31 in.
(1) Cylinder Cover
(2) Power Steering Delivery Hose
(3) Hose Joint
(4) Slotted Nut
F : Front
R : Rear
a : 0.70 to 0.87 rad (40 to 50 °)
