CABIN
M6060, M7060, WSM
9-S51

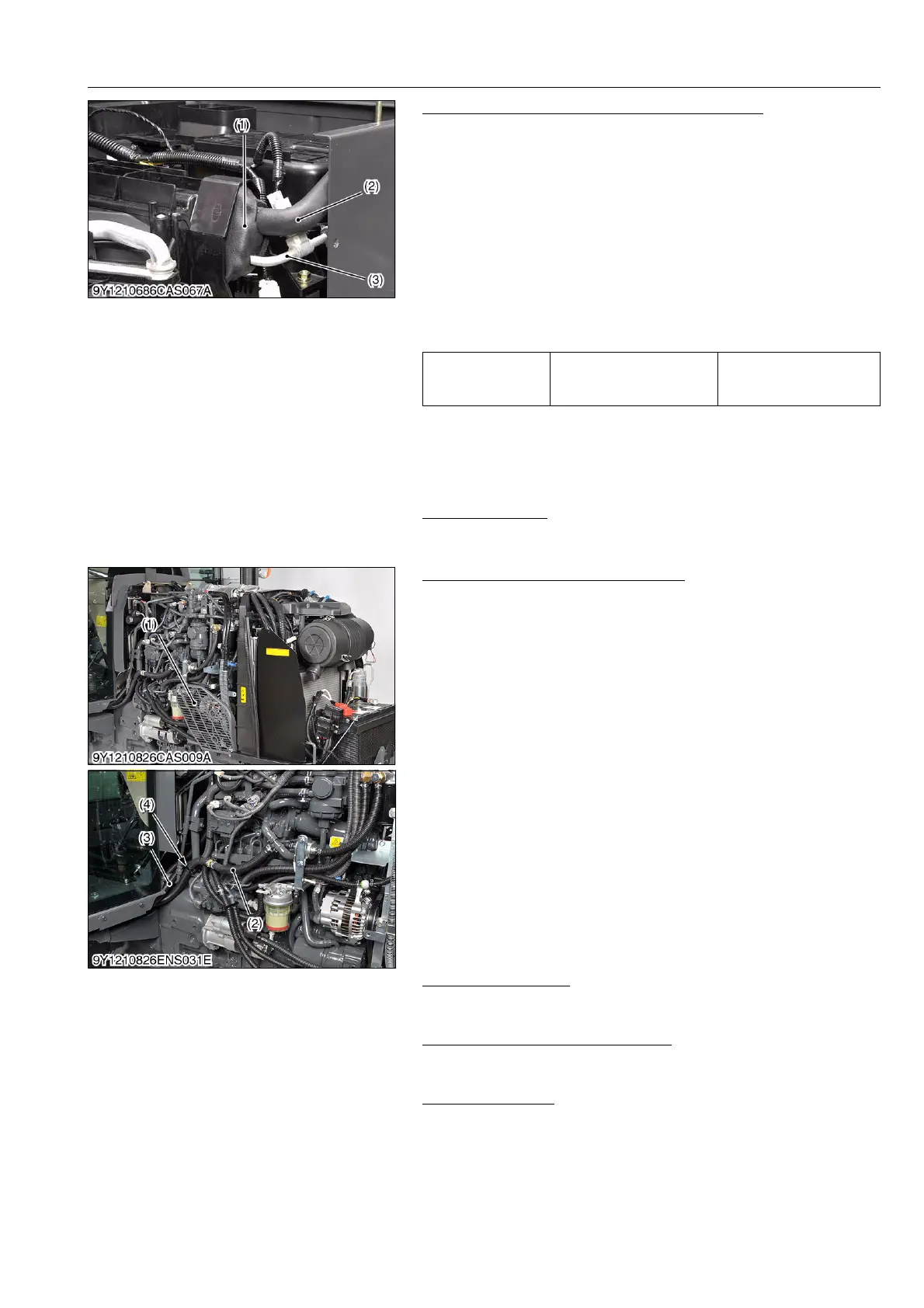

High Pressure Hose 2 and Low Pressure Hose
1. Remove the rubber (1) and pressure hoses joint mounting
screw.
2. Remove the pressure hoses joint.
3. Disconnect the high pressure hose 2 (3) and low pressure hose
(2), then cap the place immediately which disconnected
pressure hose to keep moisture out of the system.
4. Pull out the high pressure hose 2 (3) and low pressure hose (2)
from the bottom of the cabin and remove the pressure hoses.
(When reassembling)
• Replace the rubber (1) with a new one.
• Apply compressor oil (DENSO CO. ND-OIL8) to the O-rings and
be careful not to damage them.
9Y1210828CAS0090US0
(5) Removing Heater Hoses
Draining Coolant
• See page G-40.
9Y1210828CAS0076US0
Side Cover (R.H.) and Heater Hoses
1. Remove the side cover (R.H.) (1).
2. Disconnect the heater hoses (2) and (3) from the engine.
3. Remove the clamps (4).
(When reassembling)
• Note the inlet hose and outlet hose.
9Y1210828CAS0091US0
Seat and Floor Mats
• See page 9-S50.
9Y1210828CAS0092US0
Air Conditioner Ducts and Covers
• See page 9-S47.
9Y1210828CAS0093US0
Inner Cover (R.H.)
• See page 9-S46.
9Y1210828CAS0088US0
Tightening torque
Pressure hose joint
mounting screw
7.9 to 11 N·m
0.80 to 1.2 kgf·m
5.8 to 8.6 lbf·ft
(1) Rubber
(2) Low Pressure Hose
(3) High Pressure Hose 2
(1) Side Cover (R.H.)
(2) Heater Hose 1
(3) Heater Hose 2
(4) Clamp
