FRONT AXLE
M6060, M7060, WSM
5-S12

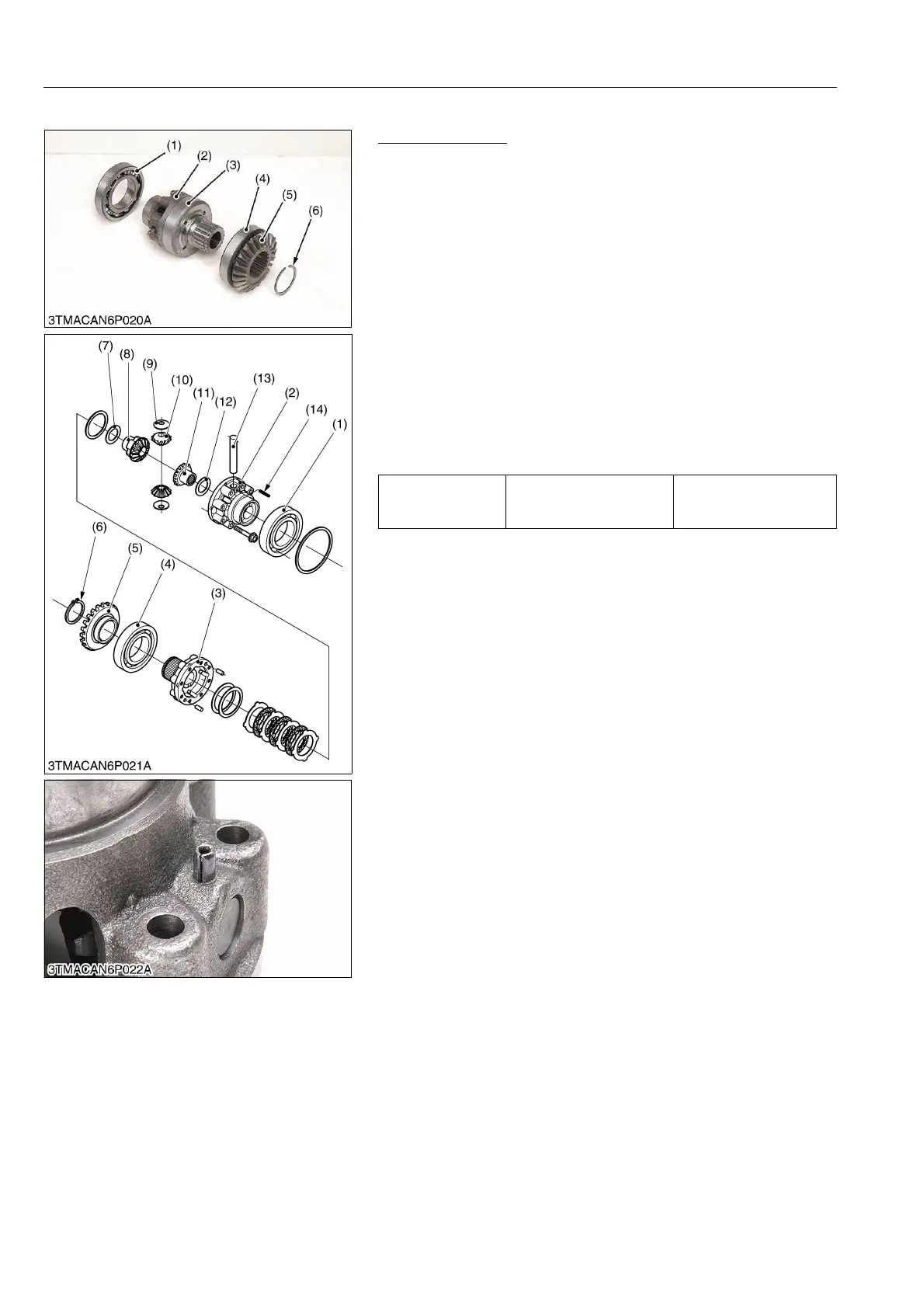

(4) Disassembling Differential Gear (LSD)
Spiral Bevel Gear
1. Remove the external circlip (6) and the 23T spiral bevel gear (5)
with bearing (4).
2. Remove the bearing (1).
3. Remove the differential case cover mounting screws and
remove the differential case cover.
4. Tap out the roll pin (14) and draw out the differential pinion shaft
(13) and pinion gears (10), differential side gear (11) and shim.
(When reassembling)
• Replace the external circlip (6) with new one.
• Check the differential pinion gears (10), pinion shaft (13) for
excessive wear. If these parts are damaged or excessively
worn, replace there parts thy are in mesh with, or they sliding on.
• Apply molybdenum disulfide (Three Bond 1901 or equivalent) to
inner circumferential surface of differential pinions, side gear
and shim.
• Install the parts to there original position.
• Face the roll pin (14) as shown in the photo.
9Y1210828FAS0022US0
Tightening torque
Differential case cover
mounting screw (M8, 9T)
30 to 34 N·m
3.0 to 3.5 kgf·m
22 to 25 lbf·ft
(1) Bearing
(2) Differential Case
(3) Differential Case Cover
(4) Bearing
(5) 23T Spiral Bevel Gear
(6) External Circlip
(7) Shim
(8) LSD Side Gear
(9) Pinion Washer
(10) Differential Pinion Gear
(11) Differential Side Gear
(12) Shim
(13) Differential Pinion Shaft
(14) Roll Pin
