TRANSMISSION
M6060, M7060, WSM
2-S45

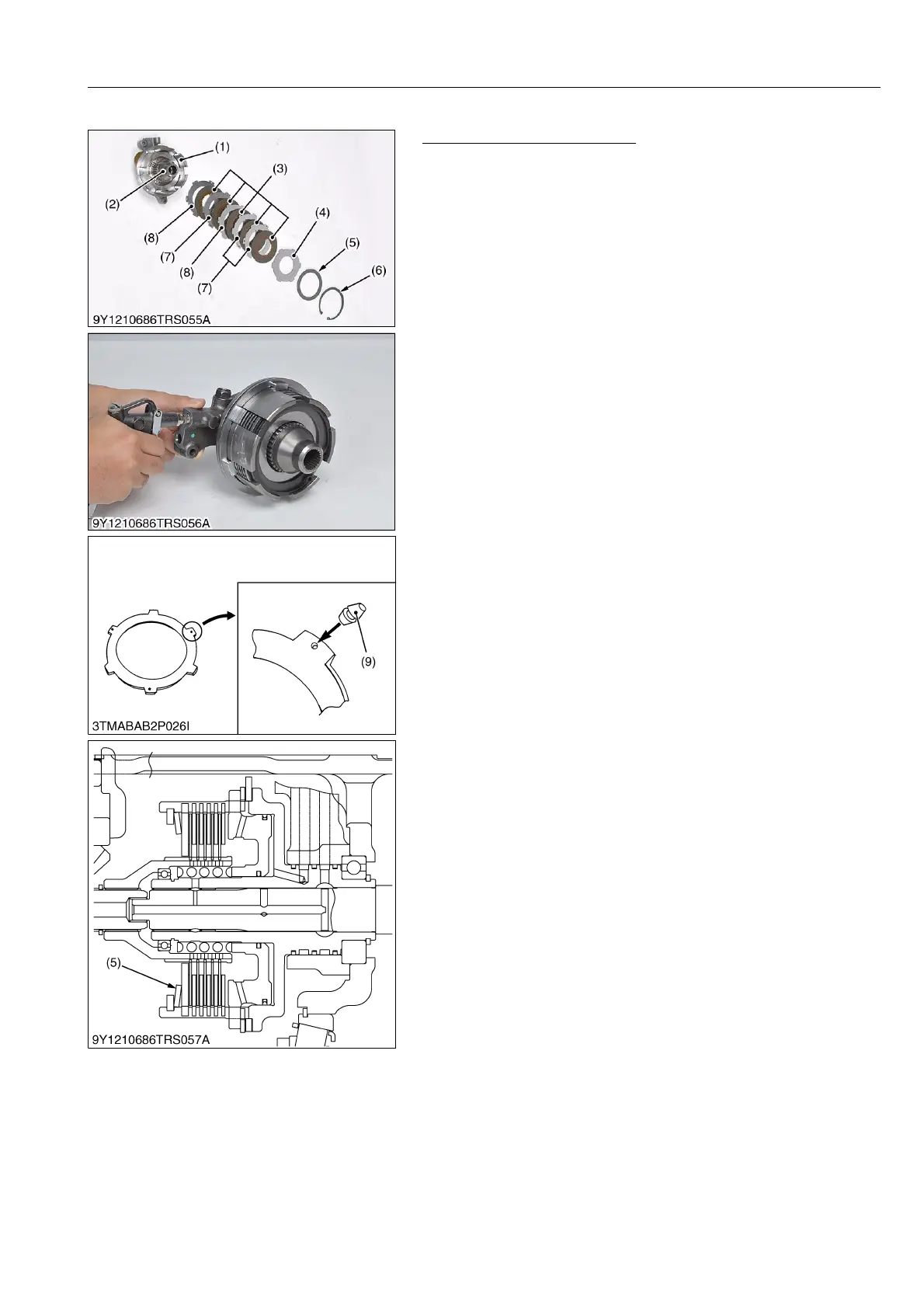

(3) Disassembling PTO Clutch Pack
Clutch Hub and Clutch Disks
1. Remove the internal circlip (6), the clutch disks (3), belleville
washer (cupped spring washer) (5), back plate (4), steel plates
(7), (8) and the hub (2).
(When reassembling)
• Install the clutch disks (3) and steel plates (7), (8) alternately.
(Refer to figure below.)
• Do not confuse the two types steel plates. One is steel plate with
plug rubber (9), the other is steel plate without plug rubber (9).
• Do not confuse the back plate (4) and steel plates. The back
plate (4) is thicker than the steel plates.
• Assemble the plug rubbers portion of the two steel plates (7) are
same positions while assembling them. (Refer to figure below.)
• Apply enough transmission fluid to the disks (3).
• Make sure the moving of the piston (11) smoothly when
pressure air at 0.30 to 0.39 MPa (3.0 to 4.0 kgf/cm
2
, 43 to 56 psi)
is sent to clutch pack. (Refer to the photo.)
• Assemble the steel plates with rubber (7) and steel plates
without rubber (8) shown in the photo, and be sure that the
rubber (9) position of the steel plate (7) does not lie next to the
hole of the steel plate (8) without rubber.
• Be sure to assemble the belleville washer (cupped spring
washer) (5) as shown in the figure.
9Y1210828TRS0069US0
(1) Clutch Case
(2) Hub
(3) Clutch Disks
(4) Back Plate
(5) Belleville Washer (Cupped Spring
Washer)
(6) Internal Circlip
(7) Steel Plate (With Plug Rubbers)
(8) Steel Plate (Without Plug Rubbers)
(9) Plug Rubber
(10) Bearing
(11) Piston
(12) Spring
To Next Page
