TRANSMISSION
M6060, M7060, WSM
2-S52

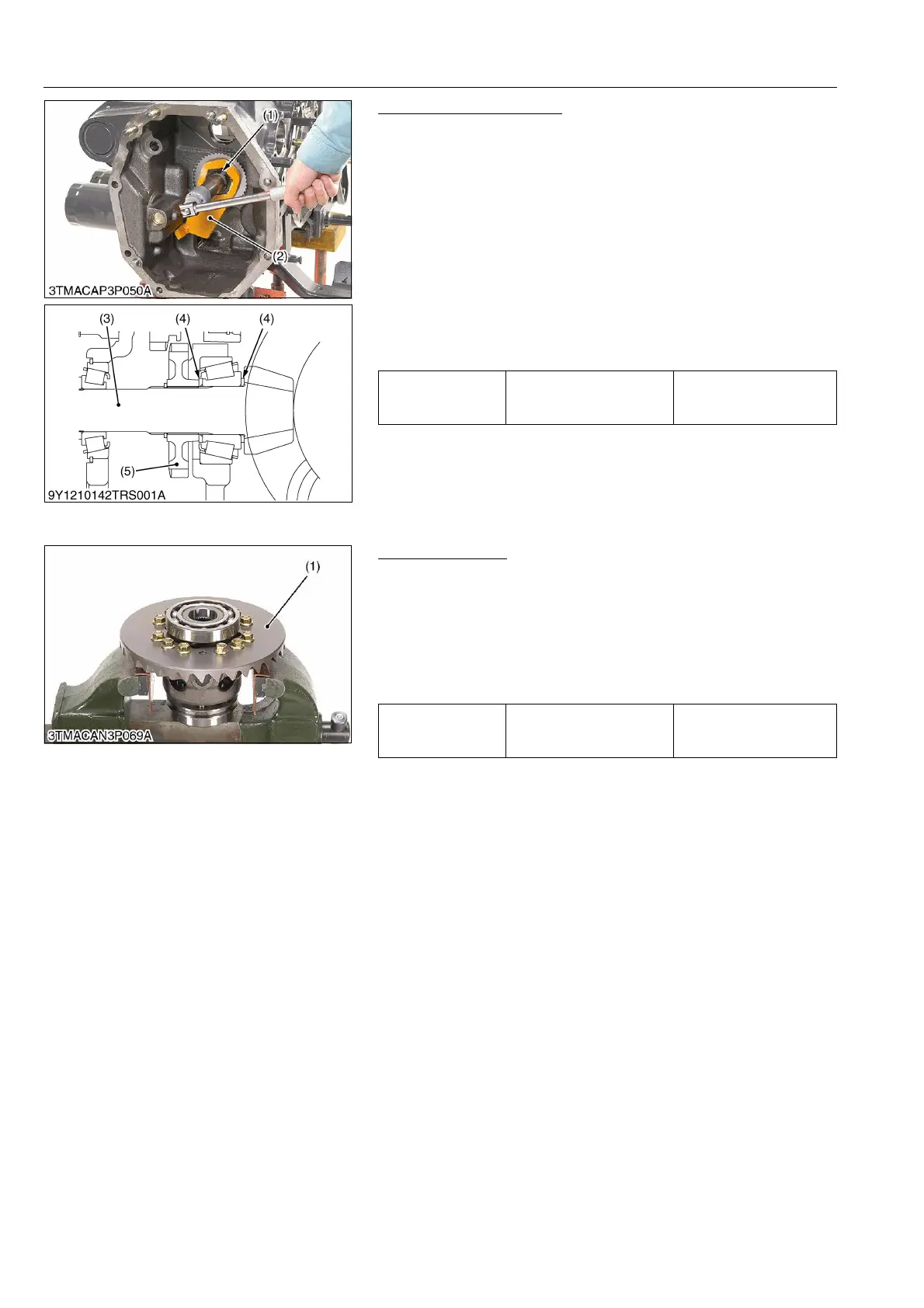

Spiral Bevel Pinion Shaft
1. Remove the stake of staking nut (1).
2. Set the staking nut locking wrench (2).
3. Set the spiral bevel pinion shaft turning wrench.
4. Turn the spiral bevel pinion shaft turning wrench to the
clockwise, then remove it.
5. Remove the 33T ground PTO gear (5). (for ITA model)
6. Tap out the spiral bevel pinion shaft to the rear.
(When reassembling)
• Replace the staking nut with a new one, and be sure to adjust
the turning torque of spiral bevel pinion shaft itself (see page
2-S62).
• Stake the staking nut after installing the differential gear
assembly.
9Y1210828TRS0081US0
[11] DIFFERENTIAL GEAR
Spiral Bevel Gear
1. Remove the spiral bevel gear (1).
(When reassembling)
• Check the spiral bevel gear for wear or damage. If it is no longer
serviceable, replace it. Then, also replace the spiral bevel pinion
shaft.
• Apply liquid lock (Three Bond 1324B or equivalent) to the spiral
bevel gear mounting UBS screws.
9Y1210828TRS0082US0
Tightening torque
(Reference)
Spiral bevel pinion shaft
staking nut
117.7 N·m
12.0 kgf·m
86.8 lbf·ft
(1) Staking Nut
(2) Locking Wrench
(3) Spiral Bevel Pinion Shaft
(4) Collar
(5) 33T Ground PTO Gear
(for ITA Model)
Tightening torque
Spiral bevel gear mounting
UBS screw
142.2 to 161.8 N·m
14.5 to 16.5 kgf·m
104.9 to 119.3 lbf·ft
(1) Spiral Bevel Gear
