TRANSMISSION
M6060, M7060, WSM
2-S31

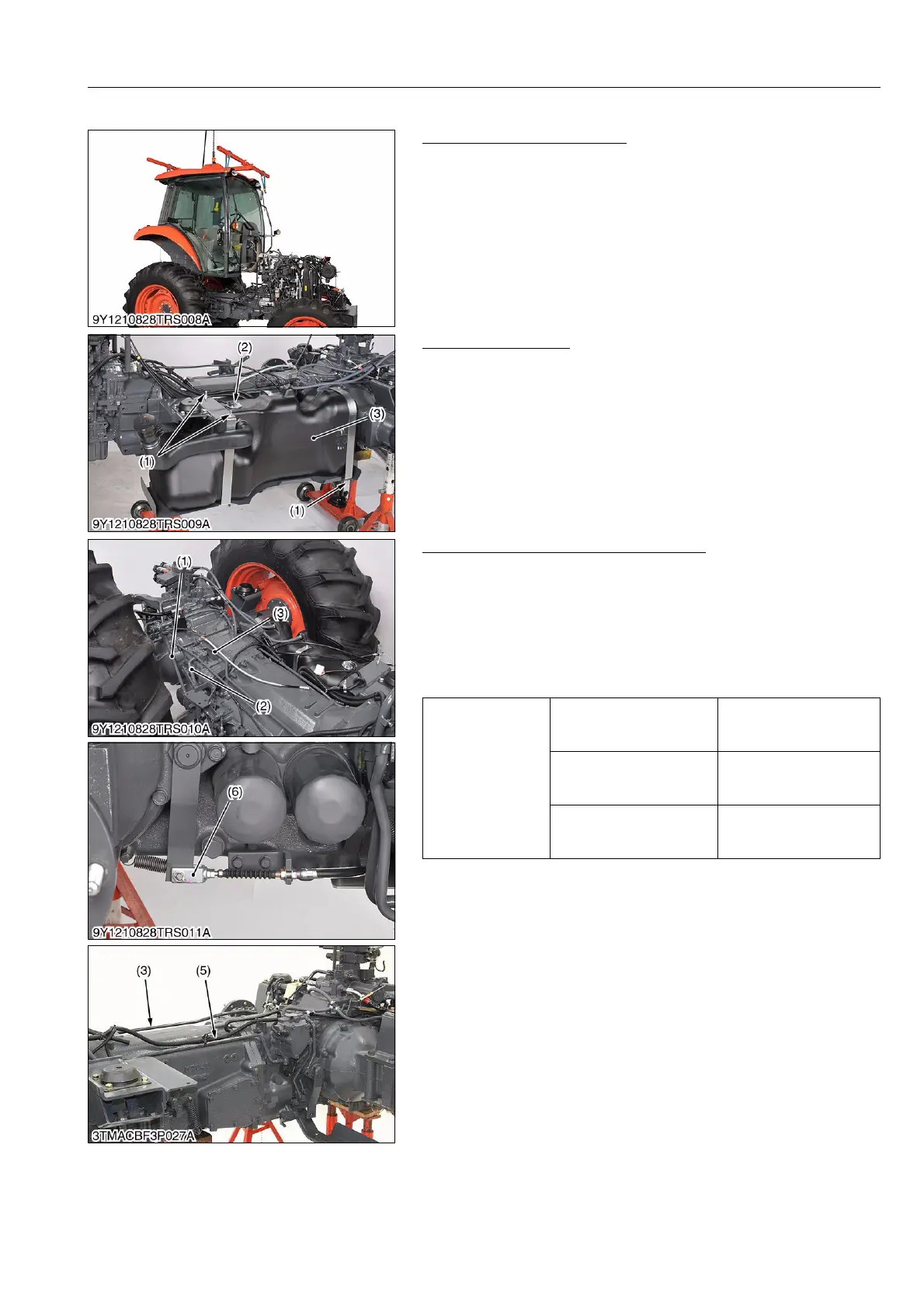

(2) Preparation for CABIN Model
Removing Cabin from Body
1. Refer to 9-S34.
9Y1210828TRS0041US0
Removing Fuel tank
1. Disconnect the fuel sensor connector (2).
2. Remove the fuel tank mounting nuts (1).
3. Remove the fuel tank (3).
9Y1210828TRS0042US0
Hydraulic Pipe and Parking Brake Rod
1. Remove the 3-point hitch delivery pipe 2 (1).
2. Remove the 3-point hitch delivery pipe 1 (2) with outlet block (4).
3. Remove the hydraulic pipe (5).
4. Remove the power steering pipe (3).
5. Disconnect the parking brake rod.
(When reassembling)
• See page 4-S6 for adjusting the parking brake rod.
9Y1210828TRS0043US0
(1) Fuel Tank Mounting Nut
(2) Fuel Sensor Connector
(3) Fuel Tank
Tightening torque
3-point hitch delivery pipe 2
retaining nut
107.9 to 117.7 N·m
11.0 to 12.0 kgf·m
79.6 to 86.8 lbf·ft
Power steering pipe and
hydraulic pipe retaining nut
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
Joint screw for hydraulic
pipe
29.4 to 34.3 N·m
3.0 to 3.5 kgf·m
21.7 to 25.3 lbf·ft
(1) 3-Point Hitch Delivery Pipe 2
(2) 3-Point Hitch Delivery Pipe 1
(3) Power Steering Pipe
(4) Outlet Block
(5) Hydraulic Pipe
(6) Parking Brake Rod
To Next Page
