TRANSMISSION
M6060, M7060, WSM
2-M17
[2] GROUND PTO AND LIVE PTO SECTION (ITA MODEL)
The live PTO and ground PTO are available by operating the shift lever, to shift position of the 26T ground PTO
gear (3). The power is transmitted as follow.
Live PTO
PTO Clutch Pack (1) → PTO Propeller Shaft 2 (2) → 60T Coupling Gear (8) → 26T Ground PTO Gear (3) → PTO
Propeller Shaft 3 (4) → Coupling (5) → PTO Gear Section.
Ground PTO
Spiral Bevel Pinion Shaft (6) → 33T G-PTO Gear (7) → 26T Ground PTO Gear (3) → PTO Propeller Shaft 3 (4)
→ Coupling (5) → PTO Gear Section.
• The number of revolution at one rotation of rear tire (16.9R30)
At 540 PTO speed: 8.94
At 540E PTO speed: 10.56
At 1000 PTO speed: 14.47
9Y1210828TRM0017US0

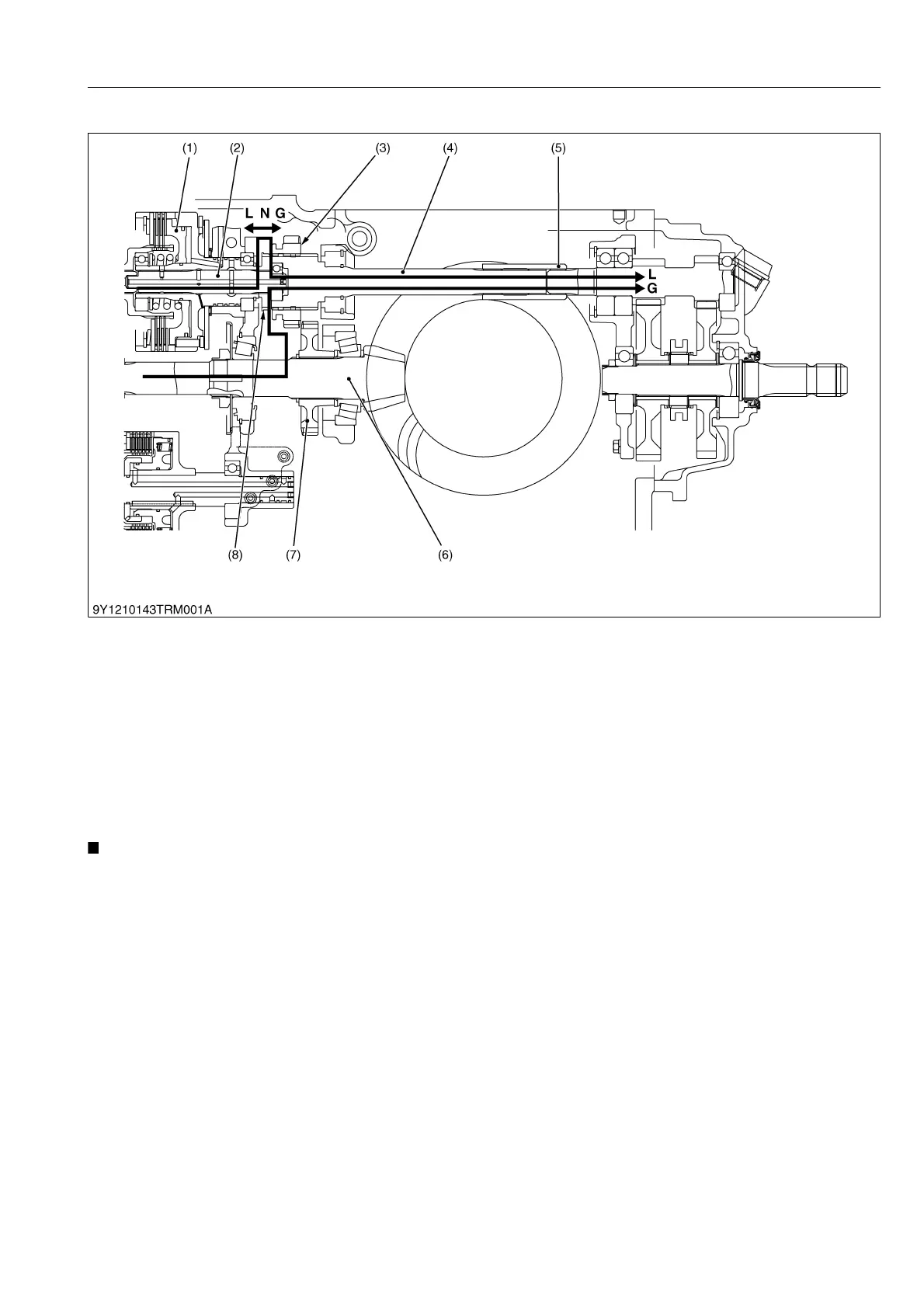

(1) PTO Clutch Pack
(2) Propeller Shaft 2
(3) 26T G-PTO Gear
(4) Propeller Shaft 3
(5) Coupling
(6) Spiral Bevel Pinion Shaft
(7) 33T G-PTO Gear
(8) 60T Coupling Gear
L: Live PTO
N: Neutral
G: Ground PTO
