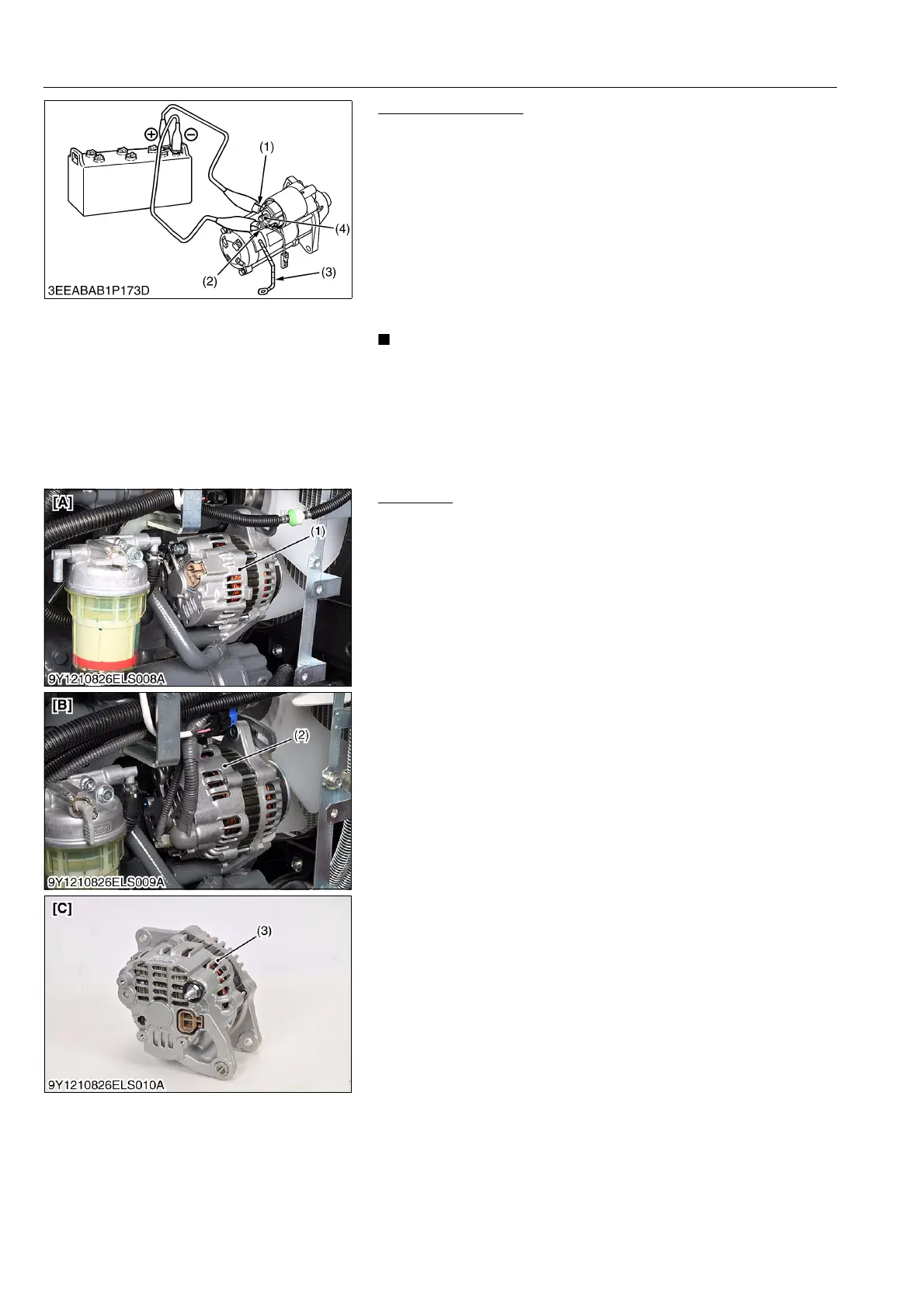

Magnet Switch Test

1. Disconnect the battery negative cable from the battery.

2. Disconnect the battery positive cable and the leads from the

starter terminal B (4).

3. Remove the starter from the engine.

4. Disconnect the connecting lead (3) from the starter terminal C

(2).

5. Connect a jumper lead from the starter terminal S (1) to the

battery positive terminal post.

6. Connect a jumper lead momentarily between the starter

terminal C (2) and the battery negative terminal post.

7. If the pinion gear does not pop out, check the magnetic switch.

NOTE

• This test should be carried out for a short time, about 3 to

5 seconds.

9Y1210828ELS0030US0

[5] ALTERNATOR

Alternator

1. Check and remove the connector of the alternator.

2. Perform the following procedure.

9Y1210828ELS0031US0

(1) Terminal S

(2) Terminal C

(3) Connecting Lead

(4) Terminal B

(1) Alternator (45 A)

(2) Alternator (60 A)

(3) Alternator (100 A)

[A] 45 A Model

[B] 60 A Model

[C] 100 A Model
