BRAKES
M6060, M7060, WSM
4-S8

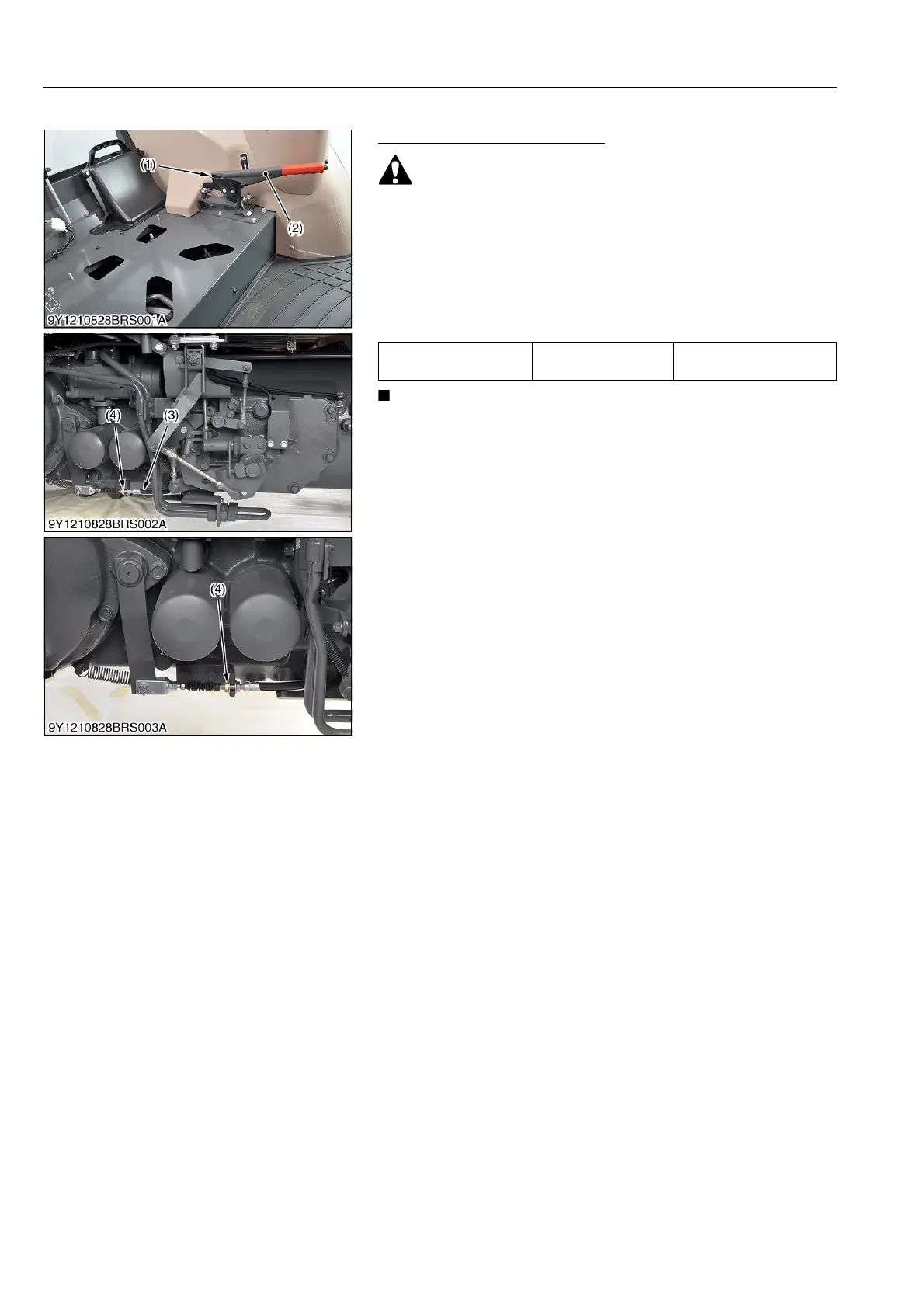

(3) Parking Brake
Adjusting Parking Brake Lever
• Stop the engine and chock the wheels before checking
parking brake.
1. Raise the parking brake lever (2) to the parking position while
counting the ratchet sound made by the parking brake lever (2).
2. If the free travel is not within factory specifications, loosen the
lock nut (1) and adjust the parking brake cable length within
factory specifications.
3. Retighten the lock nut (1).
• Assemble the parking brake wire (3) at the center of thread
with retaining nuts (4)
9Y1210828BRS0012US0
Parking brake lever free
travel
Factory specification
3 notches
(Ratchet sound 3)
(1) Lock Nut
(2) Parking Brake Lever
(3) Parking Brake Wire R.H.
(4) Retaining Nut
To Next Page
