ENGINE
M6060, M7060, WSM
1-S18
[2] PREPARATION
(1) Bonnet and Cover
Bonnet
1. Open the bonnet and disconnect the battery negative terminal
(5).
2. Disconnect the connector (2) for head lights.
3. Disconnect the damper (1).
4. Remove the bonnet and side cover (R.H) (L.H.).
• When disconnecting the battery cables, disconnect the
negative cable first. When connecting, positive cable first.
(When reassembling)
• Tighten the negative terminal nut (4) until the stopper (3)
contacts to the negative terminal (5).
• Tighten the positive terminal nut (7) so that the clearance "L" is
within the following chart.
9Y1210828ENS0018US0
Clearance "L" Factory specification
1.0 to 1.5 mm
0.040 to 0.059 in.

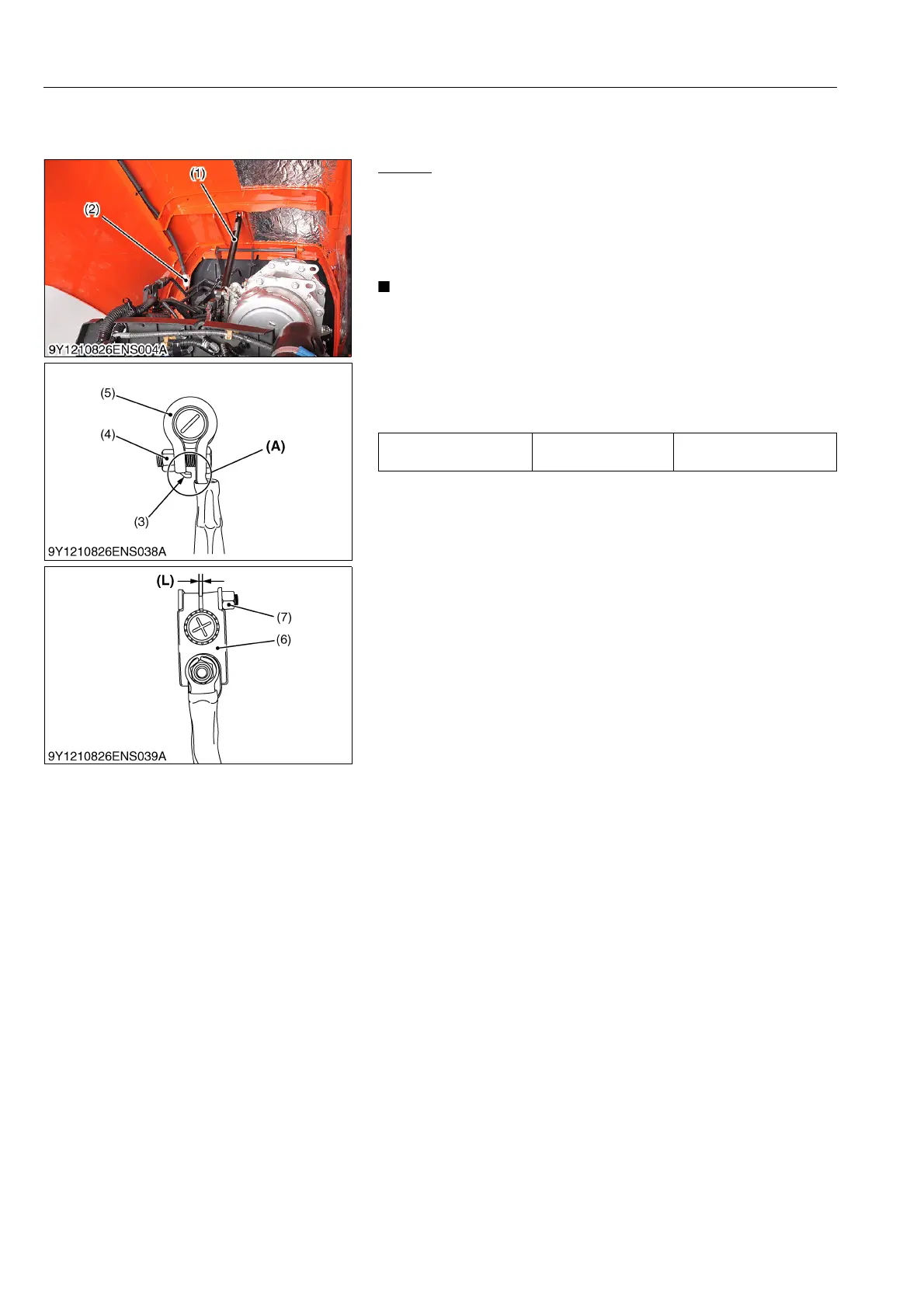

(1) Damper
(2) Connector
(3) Stopper
(4) Negative Terminal Nut
(5) Negative Terminal
(6) Positive Terminal
(7) Positive Terminal Nut
(A) The stopper contacts to the
terminal.
(L) Clearance between the positive
terminals
