ENGINE
M6060, M7060, WSM
1-S51
(10) Piston and Connecting Rod

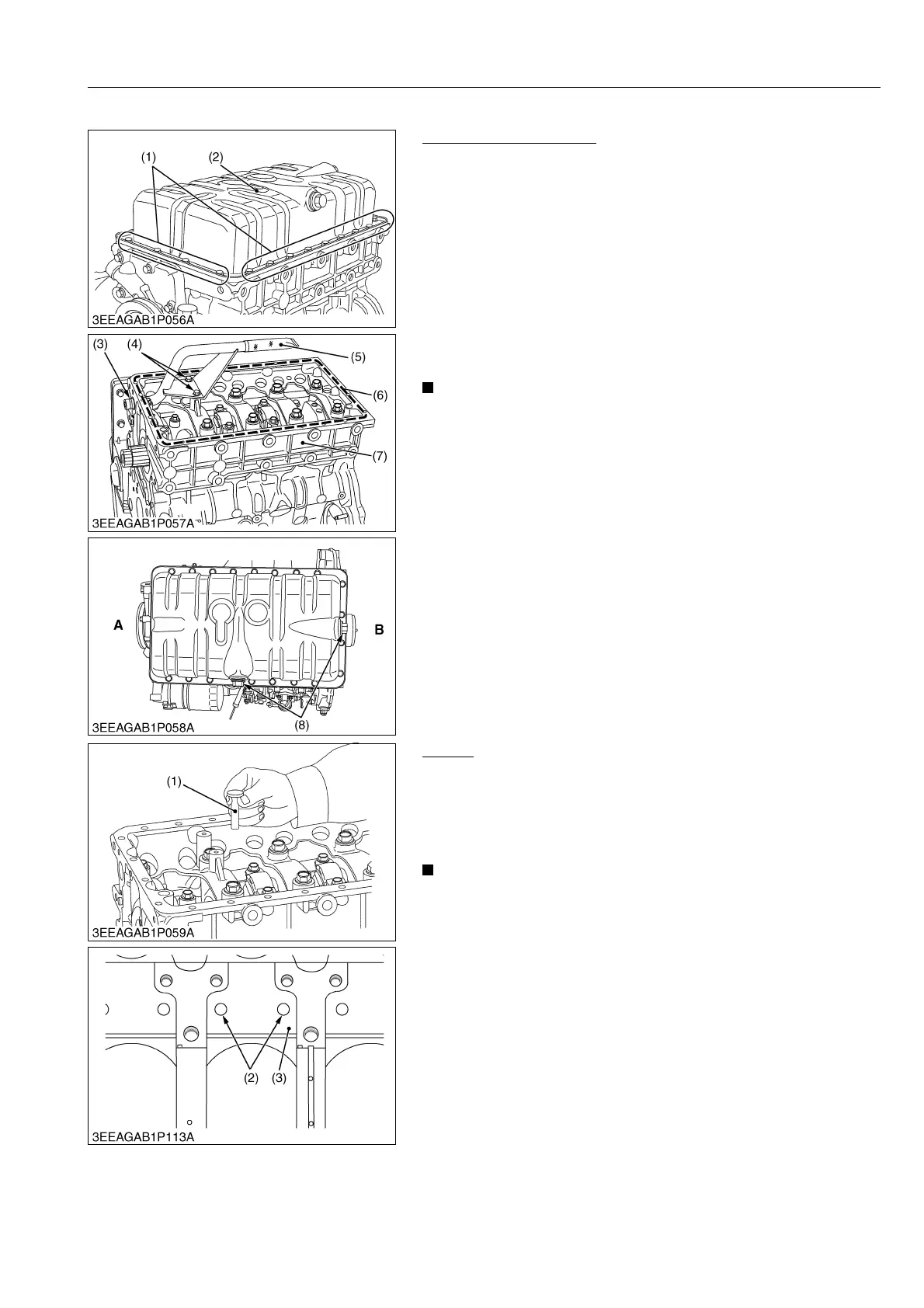

Oil Pan and Oil Strainer
1. Remove the oil pan mounting screws (1) and remove the oil pan
(2).
2. Remove the oil strainer mounting screws (4), and remove the oil
strainer (5).
(When reassembling)
• Install the oil strainer (5), using care not to damage the O-ring
(3).
• Apply liquid gasket (Three Bond 1217H or equivalent) (6) to the
crankcase 2 (7) as shown in the figure.
• Make sure that the liquid gasket coating surface is free of water,
dust and oil in order to keep sealing effect.
• Carefully apply the adhesive evenly.
• When mounting the adhesive-applied parts, be careful to fit
them to the mating parts.
• Assemble the adhesive-applied parts within ten minutes.
• To avoid uneven tightening, tighten mounting screws (1) in
diagonal order from the center.
• After cleaning the oil strainer (5), install it.
• Attach the oil pan (2) so that the drain plugs (8) will
approach the flywheel housing side (B).
9Y1210828ENS0071US0
Tappet
1. Remove the tappets (1) from the tappet bore (2) of the
crankcase 1 (3) using magnetic tool.
(When reassembling)
• Before installing the tappets (1), apply engine oil thinly around
them.
• Mark the cylinder number to the tappets (1) to prevent
interchanging.
9Y1210828ENS0072US0
(1) Oil Pan Mounting Screw
(2) Oil Pan
(3) O-ring
(4) Oil Strainer Mounting Screw
(5) Oil Strainer
(6) Liquid Gasket
(7) Crankcase 2
(8) Drain Plug
A : Front Cover Side
B : Flywheel Housing Side
(1) Tappet
(2) Tappet Bore
(3) Crankcase 1
