ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S50

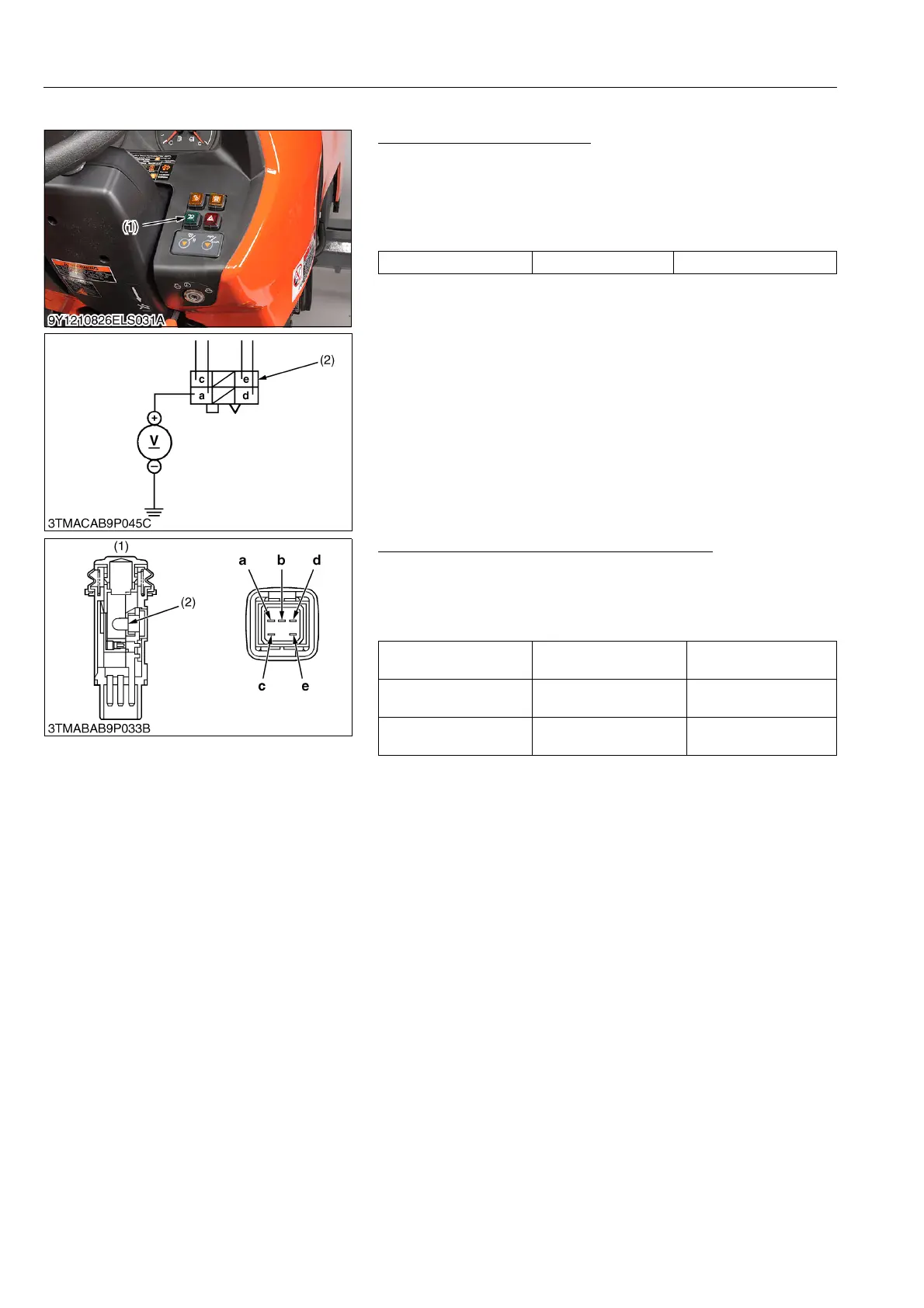

(5) Front Work Light Switch (ROPS Model)
Checking Connector Voltage
1. Turn the main switch to ON position.
2. Measure the voltage with a voltmeter across the terminal a and
chassis.
3. If the voltage differ from the battery voltage, the wiring harness
or fuse is faulty.
9Y1210828ELS0092US0
Checking Front Work Light Switch Continuity
1. Measure the resistance with ohmmeter across the terminal a
and terminal c, and across the terminal d and terminal e.
2. If the measurement is not following below, the switch or the bulb
are faulty.
9Y1210828ELS0093US0
Voltage Terminal a – Chassis Approx. battery voltage
(1) Front Work Light Switch (2) 6P Connector (Wire Harness Side)
Resistance
(Switch at OFF)
Ter min al a – Terminal c Infinity
Resistance
(Switch at ON)
Ter min al a – Terminal c 0 Ω
Resistance
(Bulb)
Ter min al d – Terminal e Approx. 13 Ω
(1) Front Work Light Switch (2) Bulb
To Next Page
