TRANSMISSION
M6060, M7060, WSM
2-S67

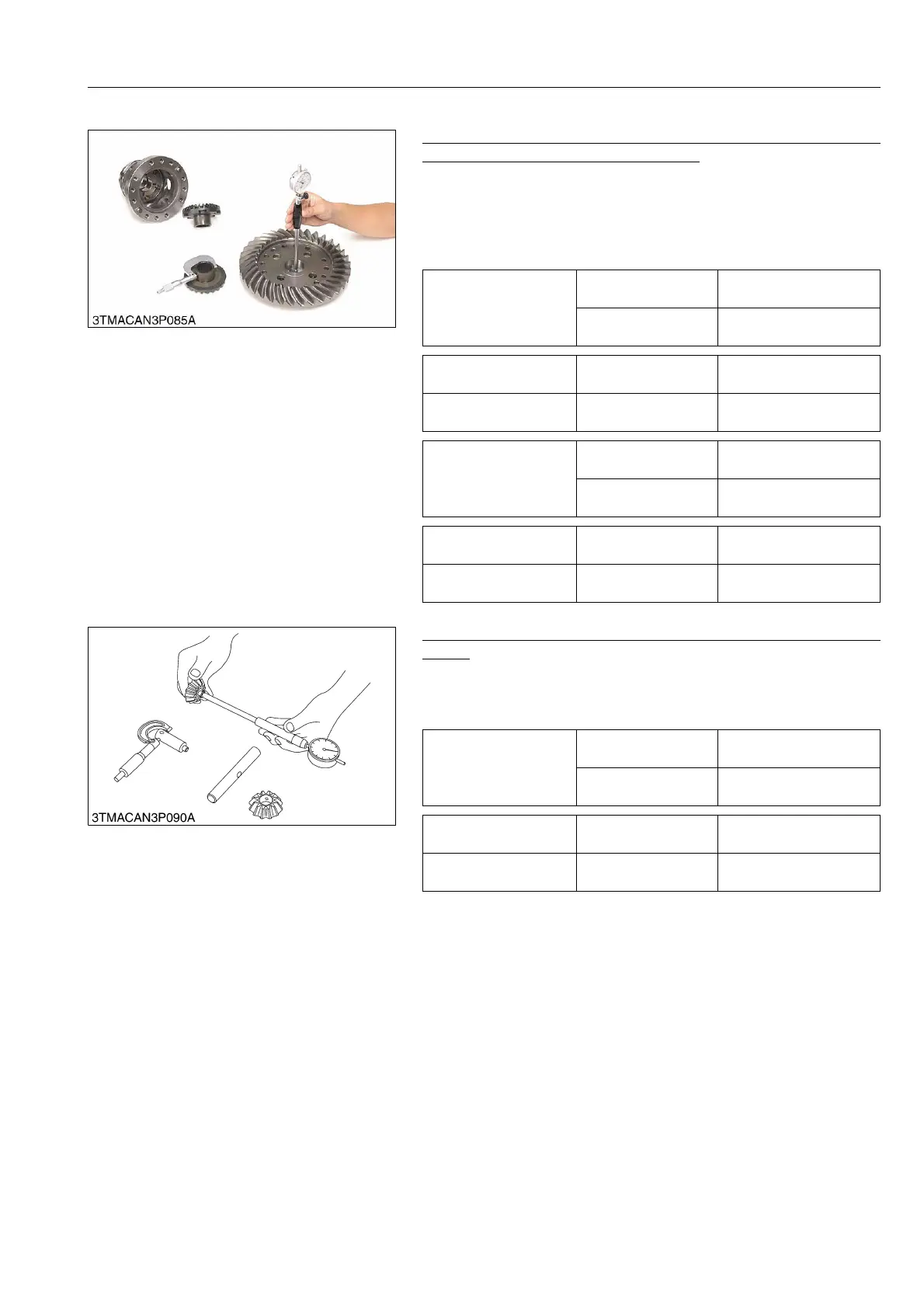

(4) Differential Case Differential Pinion Gear and Differential Side Gear
Clearance between Differential Case Bore (39T Bevel Gear
Bore) and Differential Side Gear Boss
1. Measure the bore I.D. of the differential case and 39T bevel
gear.
2. Measure the differential side gear boss O.D. and calculate the
clearance.
3. If the clearance exceeds the allowable limit, replace them.
9Y1210828TRS0116US0
Clearance between Differential Pinion Shaft and Differential
Pinion
1. Measure the differential pinion shaft O.D.
2. Measure the differential pinion I.D. and calculate the clearance.
3. If the clearance exceed the allowable limit, replace them.
9Y1210828TRS0117US0
Clearance between
differential case bore and
differential side gear
boss
Factory specification
0.08 to 0.181 mm
0.004 to 0.00712 in.
Allowable limit
0.35 mm
0.014 in.
Differential case bore
I.D.
Factory specification
40.53 to 40.592 mm
1.5960 to 1.5981 in.
Differential side gear
boss O.D.
Factory specification
40.411 to 40.45 mm
1.5910 to 1.592 in.
Clearance between 39T
bevel gear bore and
differential side gear
boss
Factory specification
0.09 to 0.169 mm
0.004 to 0.00665 in.
Allowable limit
0.35 mm
0.014 in.
39T bevel gear bore I.D. Factory specification
40.54 to 40.58 mm
1.596 to 1.597 in.
Differential side gear
boss O.D.
Factory specification
40.411 to 40.45 mm
1.591 to 1.592 in.
Clearance between
differential pinion shaft
and differential pinion
Factory specification
0.08 to 0.122 mm
0.004 to 0.0048 in.
Allowable limit
0.25 mm
0.010 in.
Differential pinion shaft
O.D.
Factory specification
20.06 to 20.081 mm
0.7898 to 0.79059 in.
Differential pinion I.D. Factory specification
19.959 to 19.980 mm
0.78579 to 0.7866 in.
KiSC issued 08, 2013 A
