TRANSMISSION
M6060, M7060, WSM
2-M7
(2) Operation

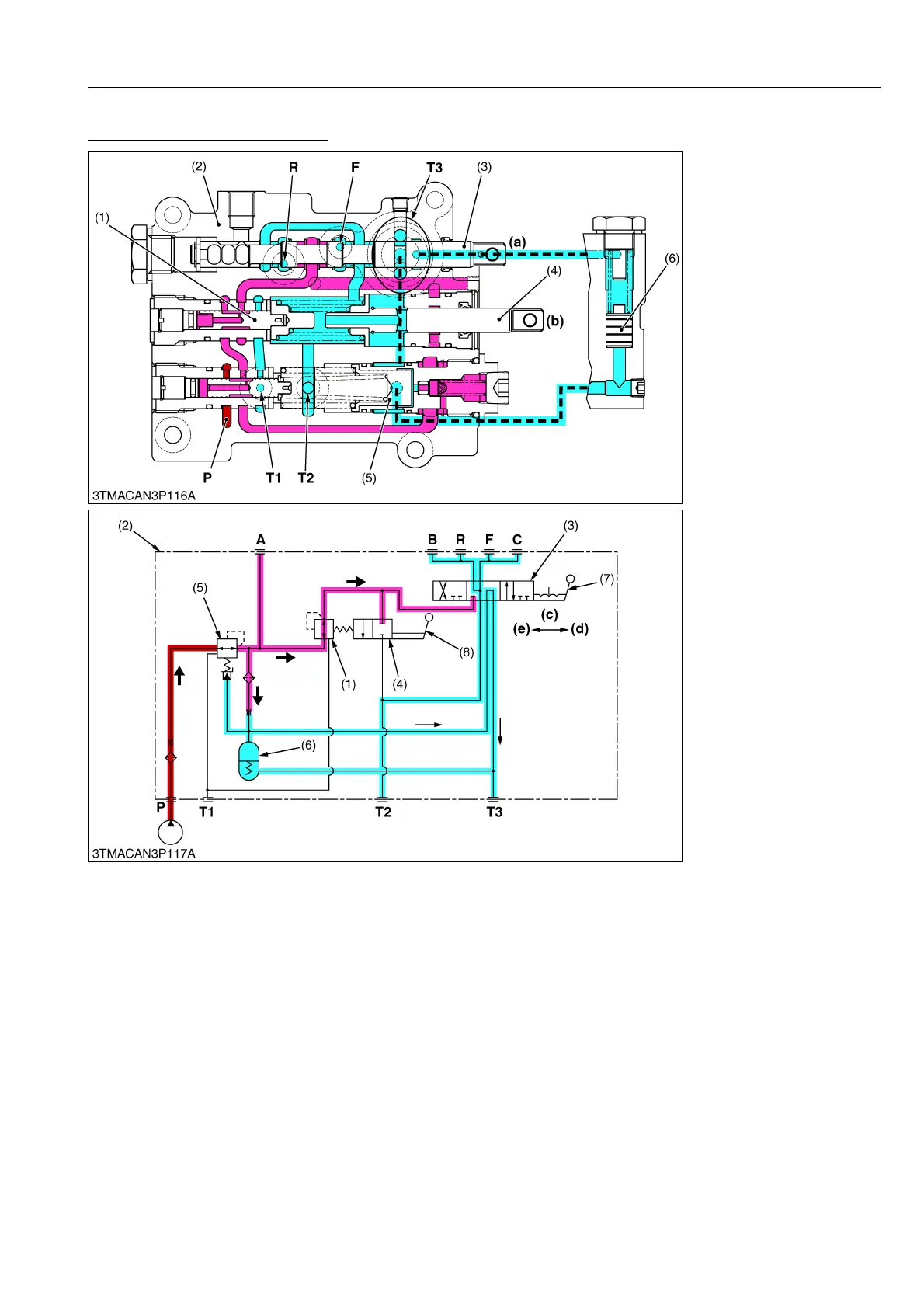

Shuttle Lever at Neutral Position
When the shuttle lever at "Neutral" position, as the oil passage between P port to F or R port is closed by shuttle
shift spool (3), pressure-fed oil from P port flows to the T3 port. Thus the shuttle clutch is not engaged.
9Y1210828TRM0007US0
(1) Proportionally Reducing
Valve
(2) Shuttle Valve
(3) Shuttle Shift Spool
(Forward, Reverse)
(4) Inching Valve
(5) Modulating Valve
(6) Accumulate Valve
(7) Shuttle Lever
(8) Clutch Pedal
A: Check Port (Modulation)
B: Check Port (Reverse)
C: Check Port (Forward)
P: P Port (Pump)
T1 to T3: To Transmission
Case
(a) Connect to Shuttle Lever
(b) Connect to Clutch Pedal
(c) Neutral
(d) Forward
(e) Reverse
To Next Page
