STEERING
M6060, M7060, WSM
6-S5
[2] PREPARATION

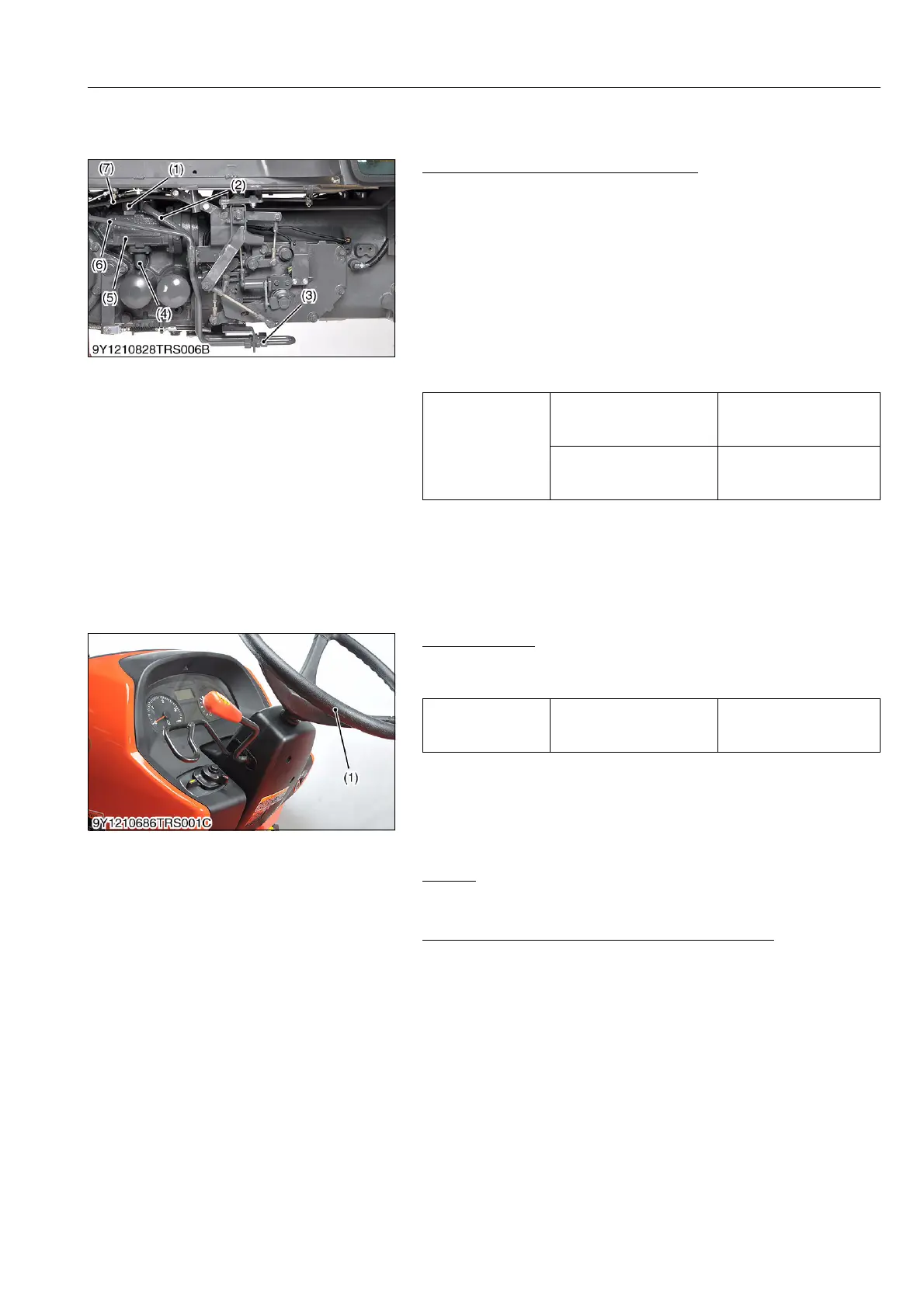

(1) Removing Power Steering Hydraulic Pump
Removing Hydraulic Pump Assembly
1. Place the disassembling stand under the transmission case and
right rear axle.
2. Remove the right rear wheel.
3. Remove the differential lock rod (7).
4. Remove the 3-point hitch delivery pipe 1 (2) and delivery pipe 2
(6) with outlet block (3).
5. Disconnect the power steering delivery pipe (1).
6. Remove the suction pipe (4).
7. Remove the hydraulic pump (5).
(When reassembling)
• Be sure to fix the O-ring with transmission fluid.
9Y1210828STS0006US0
(2) Removing Steering Wheel
Steering Wheel
1. Remove the steering wheel (1).
(When reassembling)
9Y1210828STS0007US0
(3) Removing Power Steering Controller (ROPS Model)
Bonnet
• See page 1-S18.
9Y1210828TRS0030US0
Steering Support Under Cover and Rear Bonnet
• See page 1-S24.
9Y1210828STS0008US0
Tightening torque
Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
3-point hitch delivery pipe
retaining nut
107.9 to 117.7 N·m
11.0 to 12.0 kgf·m
79.6 to 86.8 lbf·ft
(1) Delivery Pipe (for Power Steering)
(2) 3-point Hitch Delivery Pipe 1
(3) Outlet Block
(4) Suction Pipe
(5) Hydraulic Pump
(6) 3-point Hitch Delivery Pipe 2
(7) Differential Lock Rod
Tightening torque
Steering wheel mounting
nut
48.1 to 55.9 N·m
4.91 to 5.70 kgf·m
35.5 to 41.2 lbf·ft
(1) Steering Wheel
KiSC issued 08, 2013 A
