ELECTRICAL SYSTEM
M6060, M7060, WSM
8-M26
(2) Components
Range Gear Shift (Hi) and Range Gear Shift (6th)
Switch
The range gear shift (Hi) (1) checks whether sub
range gear shift is high. The range gear shift (6th) (2)
checks whether main range gear shift is 6th position.
Both switches are normal close type.
9Y1210828ELM0011US0
Shuttle Rev Rotation Sensor
The shuttle rev rotation sensor (1) calculates shuttle
rotation. This sensor is equipped for calculating the
travelling speeds.
9Y1210828ELM0012US0
Tractor ECU
The tractor ECU (1) processes and judges the input
signals from the switches and sensors around the
tractor.
9Y1210828ELM0013US0

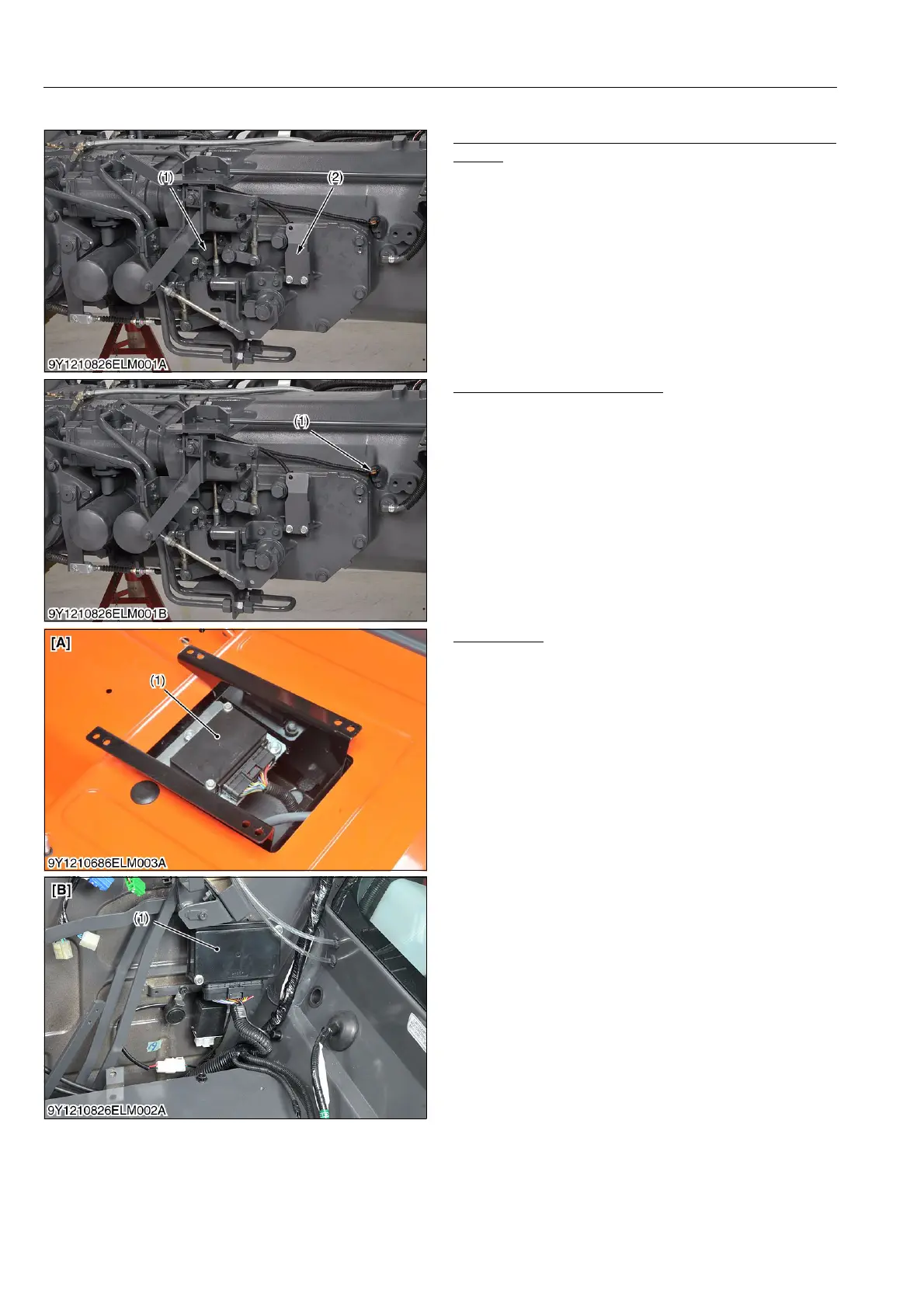

(1) Range Gear Shift switch
(High)
(2) Range Gear Shift switch
(6th)
(1) Shuttle rev rotation sensor
(1) Tractor ECU [A] ROPS
[B] CABIN
