TRANSMISSION
M6060, M7060, WSM
2-S48

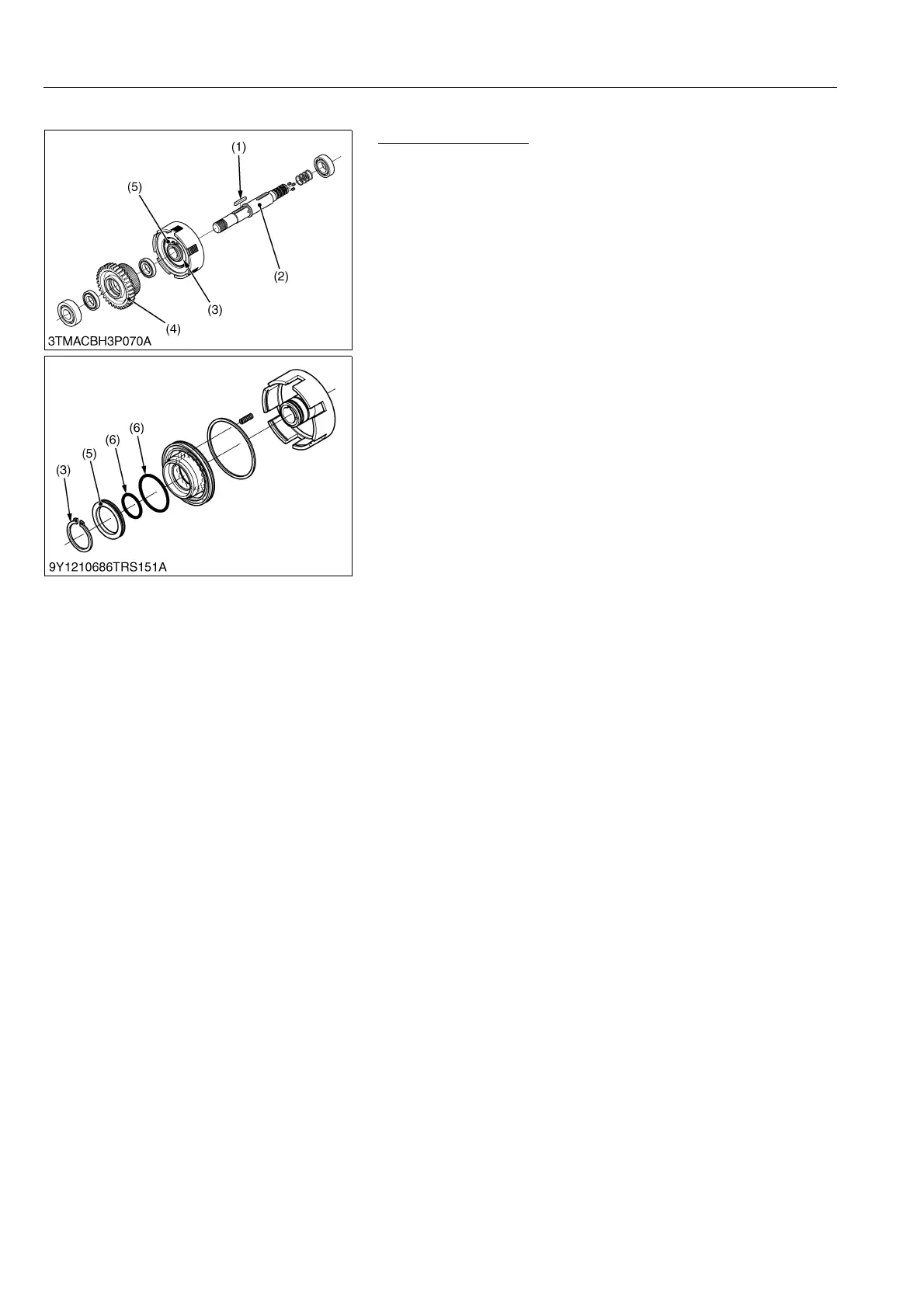

(5) Disassembling 4WD Clutch Pack
4WD Hydraulic Pack
1. Tap and remove the 4WD shaft (2) to rearward.
2. Remove the 35T gear (4) from the clutch pack.
3. Remove the external circlip (3) and cylinder case (5).
(When reassembling)
• Align the key (1) and groove.
• Apply transmission fluid to the O-ring (6).
9Y1210828TRS0074US0
(1) Key
(2) 4WD Shaft
(3) External Circlip
(4) 35T Gear
(5) Cylinder Case
(6) O-ring
