HYDRAULIC SYSTEM
M6060, M7060, WSM
7-M1
1. STRUCTURE

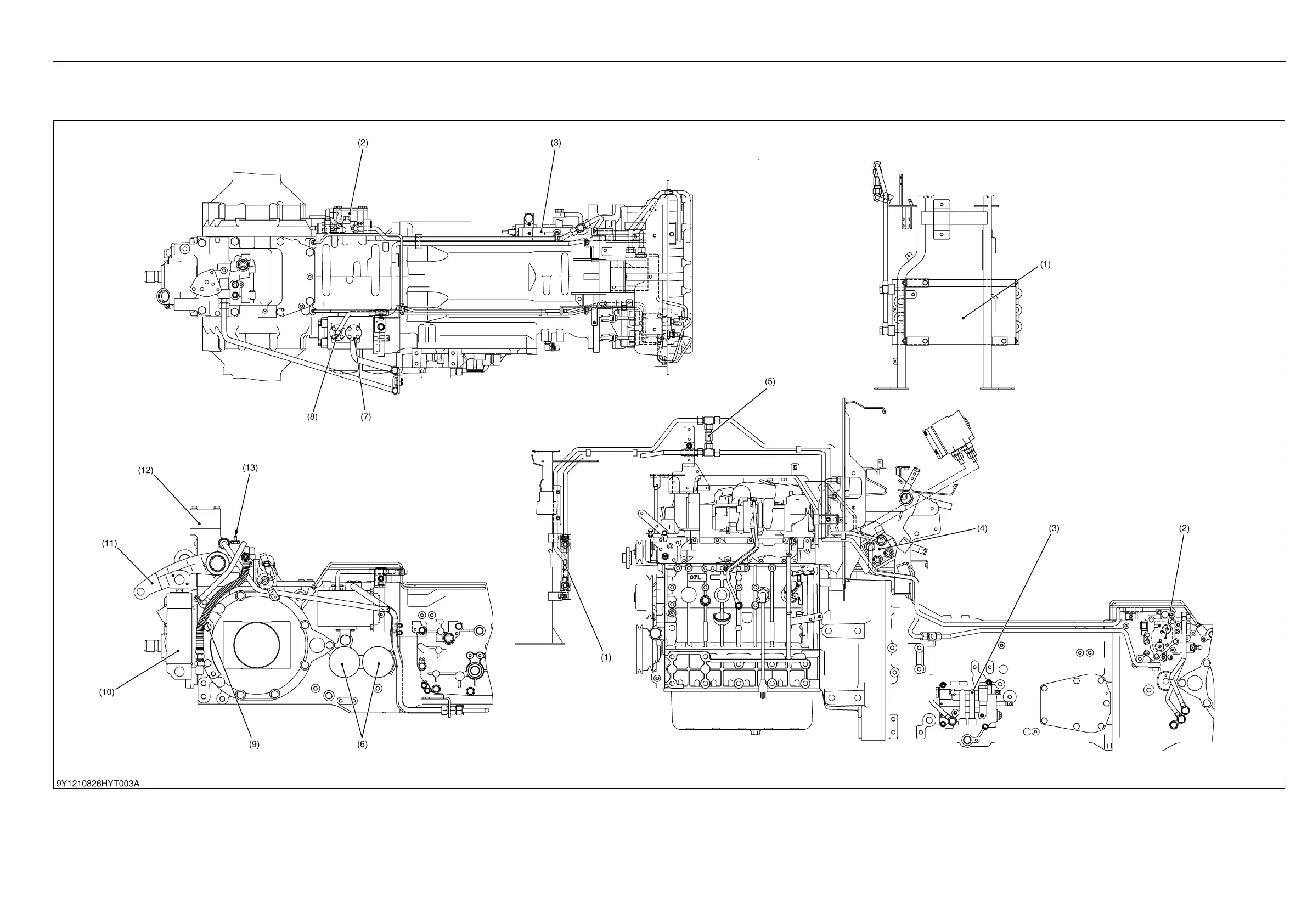

[1] F18/R18 SPEED TRANSMISSION MODEL (ROPS MODEL)
(1) Oil Cooler
(2) Solenoid Valve Assembly (PTO, 4WD)
(3) Shuttle Valve
(4) Power Steering Controller
(5) Oil Cooler Check Valve
(6) Oil Filter
(7) Hydraulic Pump (3-point Hitch)
(8) Hydraulic Pump (Power Steering, Shuttle, PTO
Clutch and 4WD Clutch)
(9) Hydraulic Hose
(10) Hydraulic Cylinder
(11) Lift Arm
(12) Auxiliary Control Valve
(13) Lowering Speed Adjustment Valve
