Gambro AK 98 Operator's Manual

HCEN12745 Revision 10.2016
Program version 2.xx
AK 98 Dialysis Machine - Machine Description A:37
1. Safety couplings for dialysis fluid
tubes
2. Dialysis fluid tube from machine to
dialyzer (blue)
3. Dialysis fluid tube from dialyzer to
machine (red)
4. Stand-by port for red concentrate
connector
5. Stand-by port for blue concentrate
connector
6. Concentrate connector, red
7. Concentrate connector, blue
8. Pick-up tube
9. Pick-up tube holder
10. BICART cartridge holder
11. Blood leak detector
12. Ultrafilter
13. Leakage detector tray
2.2.2 Fluid part component details
Safety couplings for dialysis fluid tubes
The safety couplings hold the dialysis fluid tubes
during the functional check, the disinfection program,
and the rinse program.

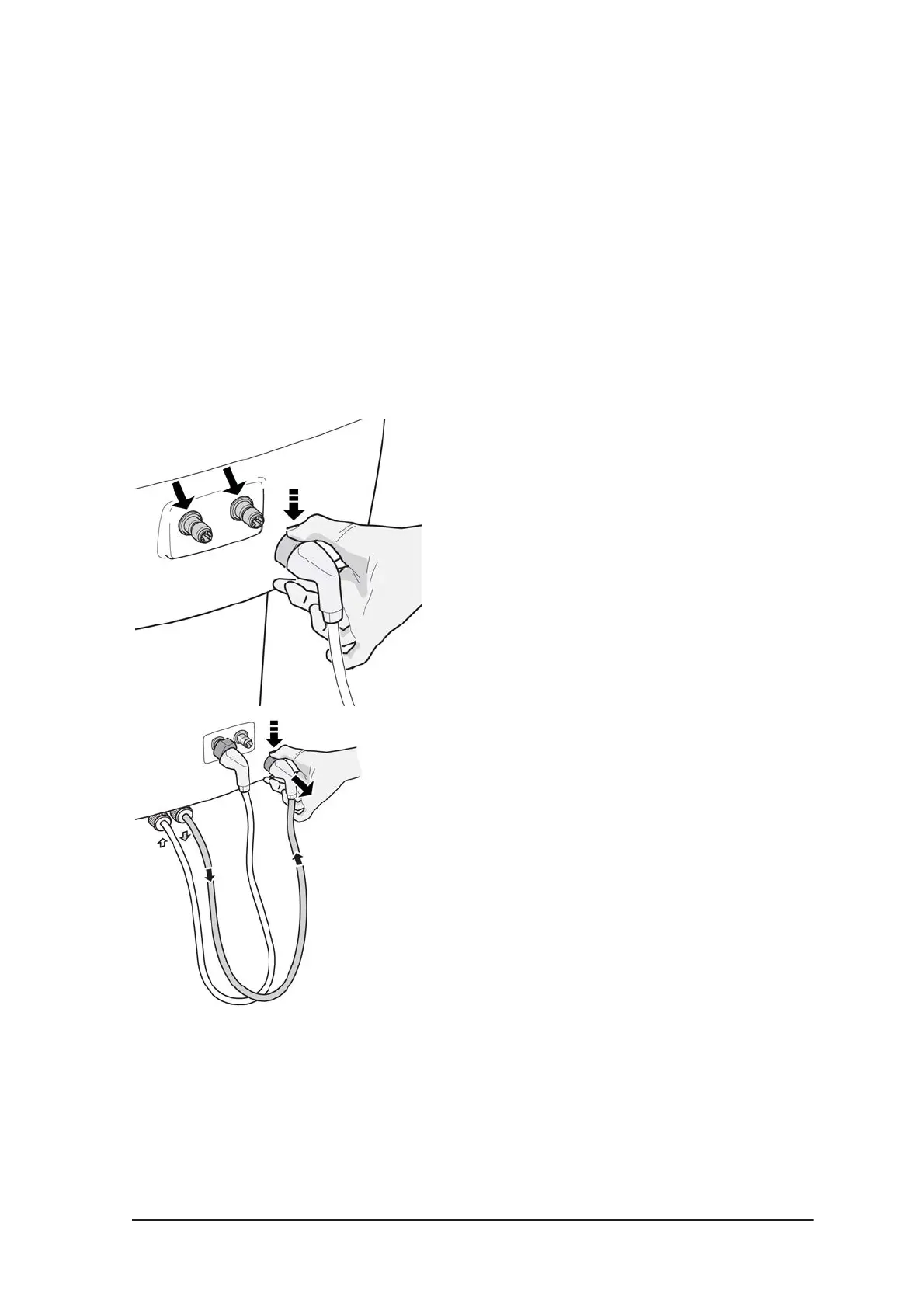

To attach a dialysis fluid tube to a safety coupling:
1. Press and hold the button on the dialysis fluid
tube connector
2. Push the dialysis fluid tube connector onto the
safety coupling. The connector locks into place
with a click.
3. Release the button on the dialysis fluid tube
connector.
Dialysis fluid tubes
The blue connection is from the machine to the
dialyzer. The newly prepared, fresh dialysis fluid,
flows from the machine to the dialyzer via this tube.
The red connection is from the dialyzer to the
machine. The used dialysis fluid flows from the
dialyzer to the machine via this tube.
To remove a dialysis fluid tube from a safety coupling;
press and hold the button on the dialysis fluid tube
connector and pull out.
