A:56 AK 98 Dialysis Machine - Handling the dialysis machine
HCEN12745 Revision 10.2016
Program version 2.xx

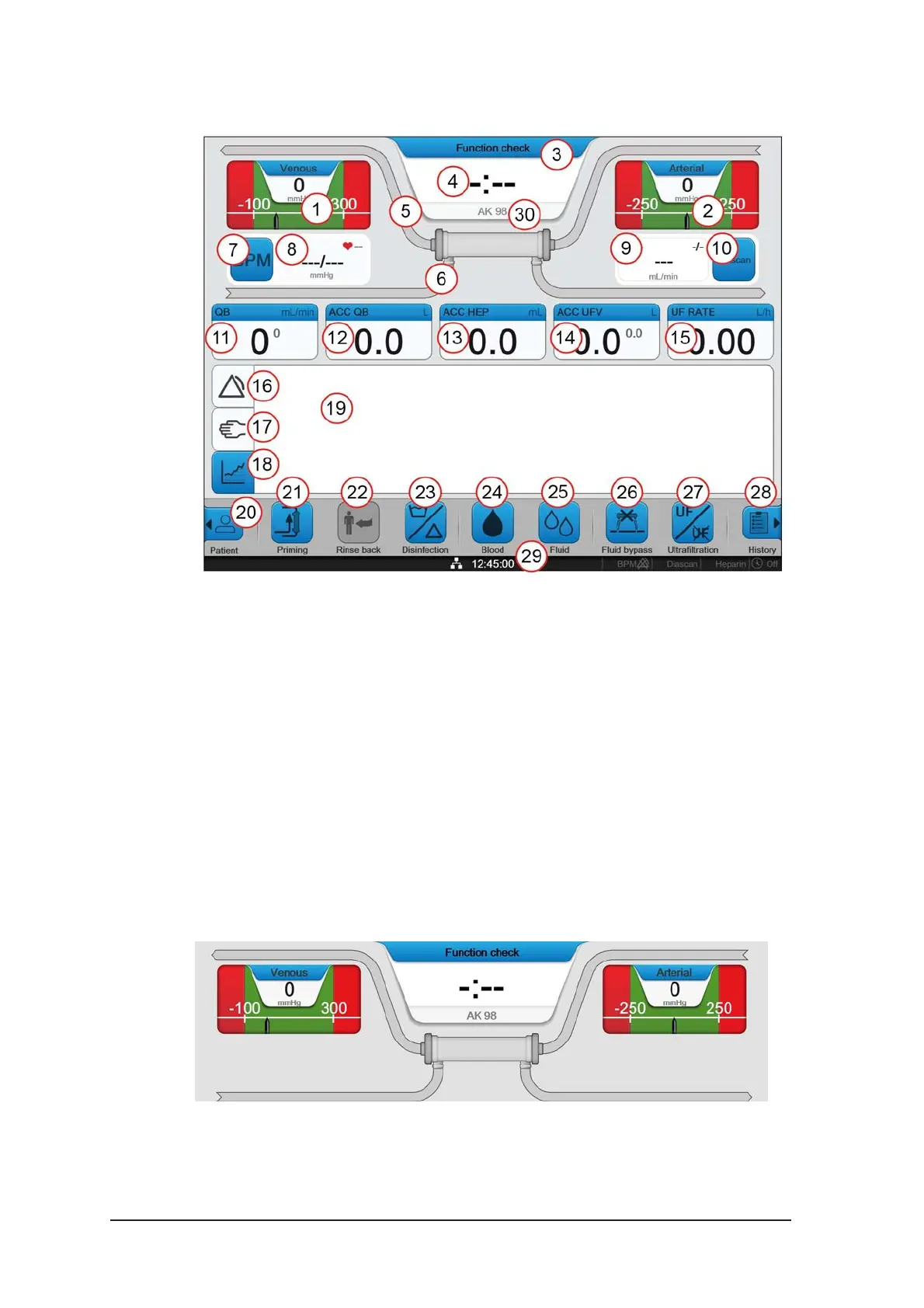

1. Venous pressure control
2. Arterial pressure control
3. Machine state indicator
4. Time indicator
5. Blood path
6. Fluid path
7. Blood pressure monitor (BPM) button
8. Blood pressure monitor (BPM) read
out field
9. Diascan read out field
10. Diascan button
11. Treatment overview field
12. Treatment overview field
13. Treatment overview field
14. Treatment overview field
15. Treatment overview field
16. Alarm tab
17. Information tab
18. Treatement graph tab
19. Information field
20. Patient page
21. Priming button
22. Rinse back button
23. Disinfection button
24. Blood button
25. Fluid button
26. Fluid bypass button
27. Ultrafiltration (UF) button
28. Treatment history page
29. Status bar
30. Monitor identifier (Nickname)
3.4.2 Venous and arterial pressure controls (1, 2)
The pressure controls show the pressure in the blood line from the patient and the
resistance of the blood returning to the patient. The corresponding alarm limits are also
shown in the pressure controls.
