PANEL DESCRIPTION
1-8

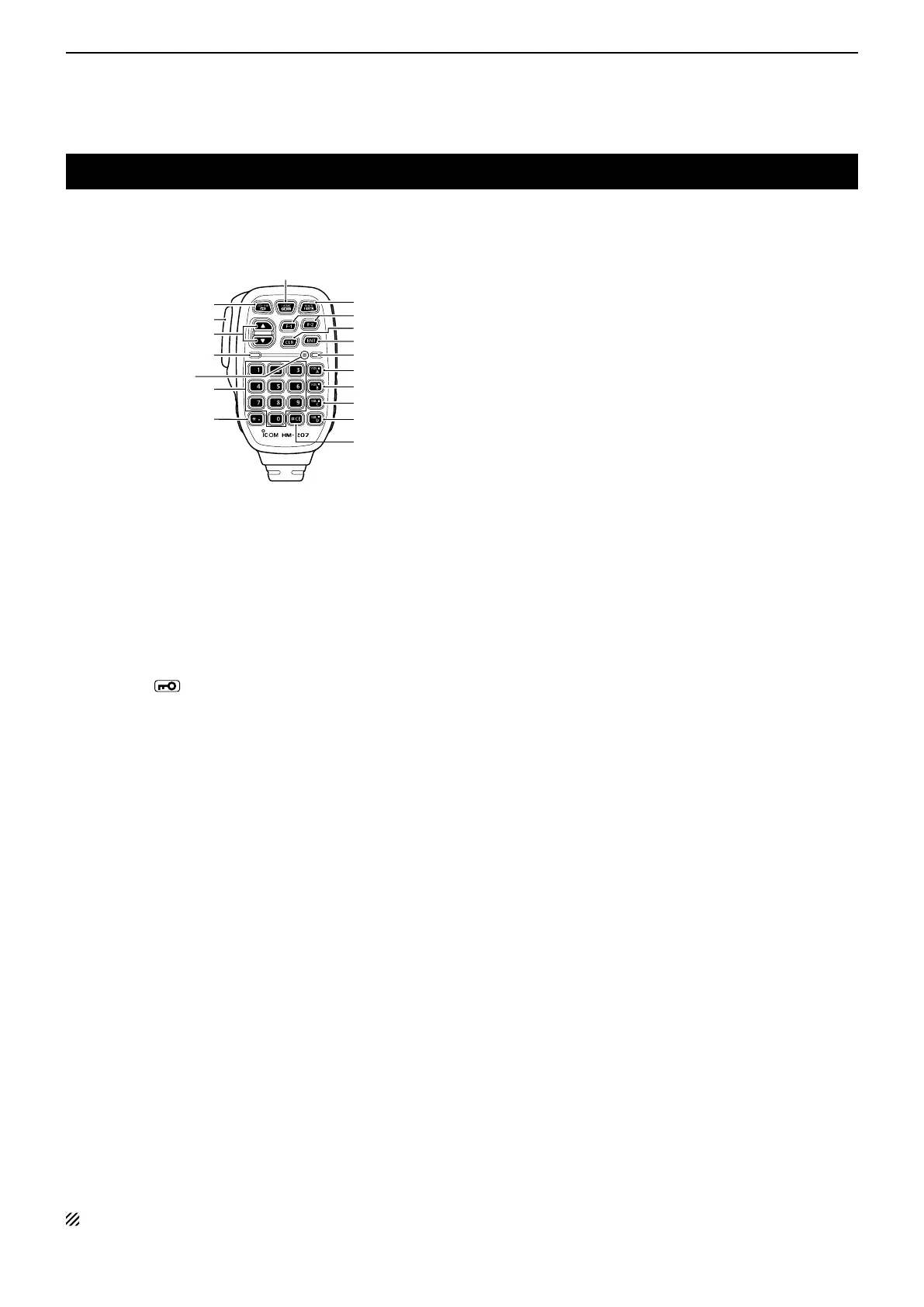

Microphone(HM-207)
With the HM-207, you can enter numbers for frequency
or Memory channel setting, and easily adjust the audio
volume or squelch level.
q
w
e
!0
t
y
i
u
o
r
!7
Mic element
!6
!1
!2
!3
!4
!5
q LED 1
Lights red while transmitting with [PTT].
w [∫]/[√] (UP/DOWN) KEYS
Push to change the operating frequency or Mem- ➥
ory channel.
Hold down to continuously change the frequency ➥
or Memory channel.
e [PTT] SWITCH
Hold down to transmit, release to receive.
r [VFO/MR• ] KEY
Push to toggle between the VFO and Memory ➥
modes.
Hold down for 1 second to turn the Lock function ➥
ON or OFF.
t [HOME/CALL] KEY
Push to select the Home channel. ➥
Hold down for 1 second to turn the Call channel ➥
mode ON or OFF.
y [MAIN/DUAL] KEY
In the Single watch mode, push to toggle between ➥
the A and B bands.
In the Dualwatch mode, push to toggle between ➥
the MAIN and SUB bands.
Hold down for 1 second to toggle between the Du- ➥
alwatch and Single watch modes.
u [F-1] KEY
Push to activate the preprogrammed function of the
[F-1] key.
(Default: During RX/Standby: [BAND/BANK]
During TX: [T-CALL])
[F-2] KEY
Push to activate the preprogrammed function of the
[F-2] key.
(Default: During RX/Standby: [Monitor]
During TX: [---])
You can assign a desired function in the Menu screen.
i [CLR] KEY
In the Menu screen or Quick Menu window, push to
return to the standby screen.
o [ENT] KEY
In the VFO mode, push to open the frequency en- ➥
try window.
In the Memory mode, push to open the memory ➥
channel number entry window.
After entering the number, push to set. ➥
!0 LED 2
Lights green when transceiver’s power is ON.
!1 [VOL∫/A] KEY
Push to increase the audio output level. ➥
When entering a DTMF code, push to enter ‘A.’ ➥
!2 [VOL√/B]KEY
Push to decrease the audio output level. ➥
When entering a DTMF code, push to enter ‘B.’ ➥
!3 [SQL∫/C] KEY
Push to increase the squelch level. ➥
When entering a DTMF code, push to enter ‘C.’ ➥
!4 [SQL√/D] KEY
Push to decrease the squelch level. ➥
When entering a DTMF code, push to enter ‘D.’ ➥
!5 [#/CE] KEY
In the frequency entry screen, push to delete a ➥
number.
When entering a DTMF code, push to enter ‘#.’ ➥
!6 [ M/.]KEY
In the frequency entry screen, push to enter a ‘.’ ➥
(decimal point).
When entering a DTMF code, push to enter ‘ ➥ M.’
!7[0]to[9]KEYS
In the frequency entry window or while entering a
DTMF code, push to enter ‘0’ through ‘9.’
