GPS OPERATION
8-25

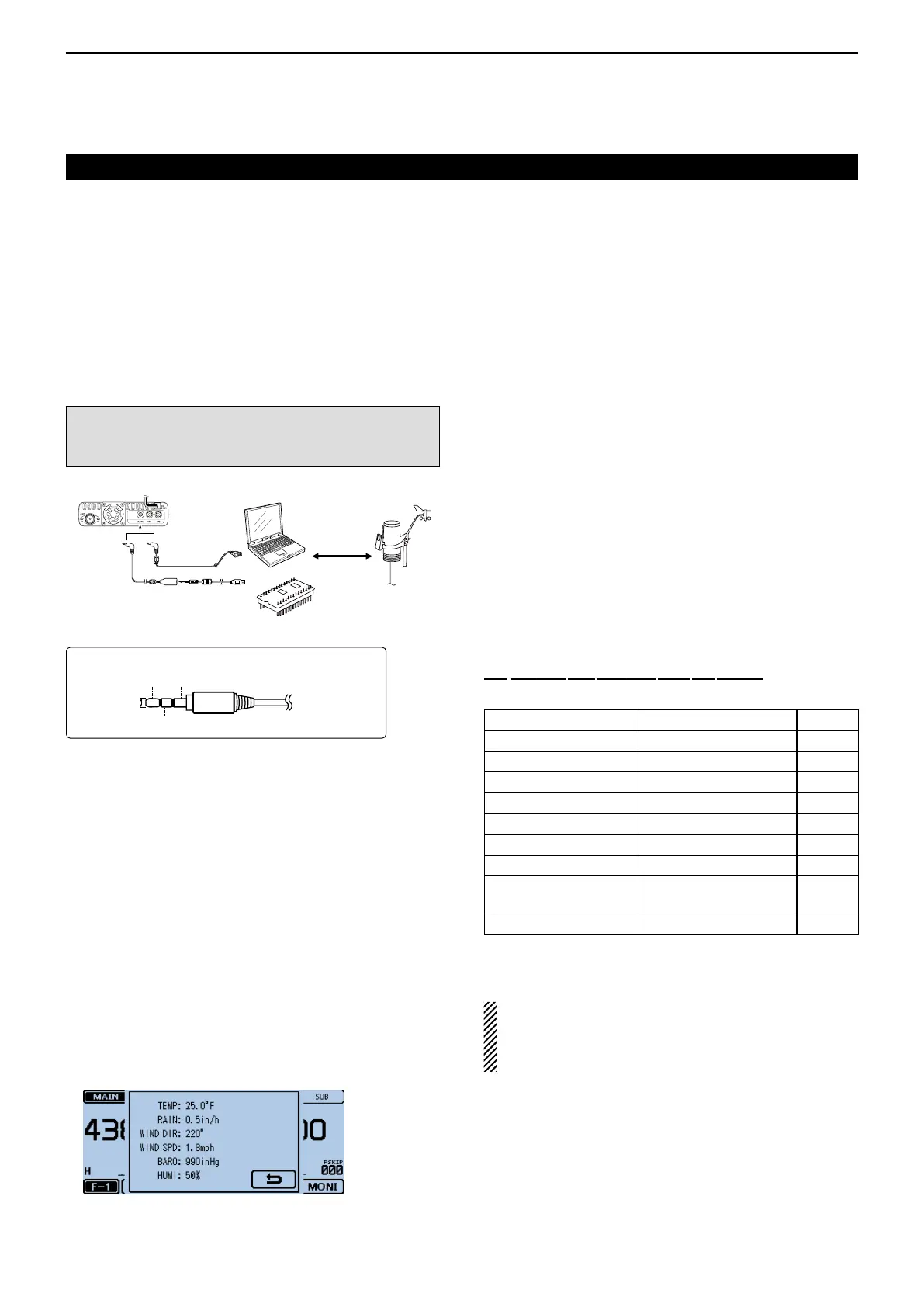

Transmitting D-PRS data (Continued)
D Weatherstationtransmission
When you transmit as a weather station, you should set
the weather station’s settings, and input the weather
data to the [DATA] terminal.
You can input the weather data from a third party’s
weather device by converting it to the APRS weather
format in your PC or microcomputer.
After completing the weather station’s settings, and in-
putting the weather data, you can transmit as a weather
station.
NOTE:
If the weather data is not input to the [DATA] terminal,
you cannot transmit as a weather station.
T o the
USB port
OPC-2218LU
OPC-1529R
T o the
RS-232C
port
PC
or
Microcomputer
Weather device
ID-5100A/E
T o the [DA T A] jack
2.5(d) mm
(
1
⁄
10
inch)
e
q
q Tip: RXD
w Ring: TXD
e Sleeve: GND
w
Terminal information
D Applicationsetting
Configure the communication software as follows.
• Port: The COM port number that is used by
the ID-5100A/E.*
1
• Baud rate: 4800/9600 bps*
2
• Data: 8 bit
• Parity: none
• Start: 1 bit
• Stop: 1 bit
• Flow control: none
*
1
Depending on the PC environment, the COM port
number used by the ID-5100A/E may be higher than
5. In such case, use an application that can set it to
higher than 5.
*
2
Set the baud rate in the “Data Speed” item.
(Function > Data Speed) (p. 12-56)
D Conrmingtheweatherdatainput
You can confirm whether or not the weather data is in-
put to the [DATA] terminal.
Set the GPS TX Mode to “D-PRS,” and the TX format q
to “Weather.” (p. 8-23, p. 8-24)
In the normal operation screen (Example: VFO, DR w
screen), touch [QUICK], and then touch “GPS Infor-
mation.”
• Opens the “GPS INFORMATION” screen.
• The weather information screen appears as shown below
if the weather data is input to the [DATA] terminal.
When you can see the weather information screen, you
can transmit as a weather station. If “-” is displayed on the
weather information screen, the weather data does not
input to the [DATA] terminal. In this case, check the input
data settings.
D Abouttheweatherdatacontent
The weather data should be input according to the for-
mat (based on the APRS
®
Weather Data) as shown
below.
Example:
220/004 g005 t077 r000 p000 P000 h50 b09900 End
code
q
w e r t y u i o
Value Unit
Wind direction q 000 to 360 º
Wind speed w 000 to 999 mph
Gust speed e g000 to g999 mph
Temperature r t-99 to t-01, t000 to t999 ƒ
Rainfall t r000 to r999*
1
inch
Rainfall (24 Hours) y p000 to p999*
1
inch
Rainfall (Midnight) u P000 to P999*
1
inch
Humidity i h00, h01 to h99
(h00 indicates 100%.)
%
Barometric pressure o b00000 to b99999*
2
hPa, mb
*
1
The last two digits indicate the two decimal place.
*
2
The last digit indicates the one decimal place.
• If you have no data, enter a space or “.” (period)
instead of a number.
(Example: “.../...g...t077r000p...P...h50b.....”)
• Enter <CR>, <LF> or <CR><LF> for an end code.
To Next Page
