PANEL DESCRIPTION
1-3
Controller—Display(Touchscreen)
qMAIN/SUBBANDICON (p. 2-3)
In the Dualwatch mode, this icon will be highlighted
to indicate the MAIN band.
“ ” is displayed on the SUB band.
w TONE/DIGITAL SQUELCH ICONS
Displayed when you set any tone or digital squelch
function.
 (Mode:FM/FM-N)
“ TONE” is displayed while the Repeater Tone En- ➥
coder is ON.
“ TSQL ➥ S” is displayed while the Pocket Beep
function with CTCSS is ON.
“ TSQL” is displayed while the Tone squelch func- ➥
tion is ON.
“ DTCS ➥ S” is displayed while the Pocket Beep
function with DTCS is ON.
“ DTCS” is displayed while the DTCS squelch ➥
function is ON.
“ TSQL-R” is displayed while the Reverse Tone ➥
squelch function is ON.
“ DTCS-R” is displayed while the Reverse DTCS ➥
squelch function is ON.
 (Mode:DV)
“ DSQL ➥ S” is displayed while the Pocket Beep
function with Digital Call Sign squelch function
is ON.
“ DSQL” is displayed while the Digital Call Sign ➥
squelch function is ON.
“ CSQL ➥ S” is displayed while the Pocket Beep
function with Digital Code squelch function is ON.
“ CSQL” is displayed while the Digital Code squelch ➥
function is ON.
e MODE ICONS
Displays the selected operating mode. (p. 2-8)
• In the DV mode, “ ” is displayed when you set the
GPS TX Mode to “D-PRS” or “NMEA.”
r PRIORITY ICON
Displayed when the Priority watch is turned ON.
tBluetooth
®
ICON (p. 15-6, p. 15-14)
Displayed when you make a Bluetooth
®
connection
between your transceiver that has the optional UT-
133 Bluetooth
®
u n i t installed and a Bluetooth
®
de-
vice.
y VOX ICON (p. 15-8)
Displayed when you make a Bluetooth
®
connection
between your transceiver that has the optional UT-
133 Bluetooth
®
u n i t installed and the optional VS-3
Bluetooth
®
h e a d s e t , and the VOX function is ON.
uEMR/BK/PacketLoss/AutoReplyICON
“ EMR” is displayed when you select the Enhanced ➥
Monitor Request (EMR) mode. (p. 7-9)
“ BK” is displayed when you select the Break-in ➥
(BK) mode. (p. 7-8)
“ L” is displayed when packet loss has occurred. ➥
(p. 6-16)
“ ➥ ” is displayed when you select the Automatic
Reply function. (p. 7-12)
i CLOCK READOUT
Displays the current time.
o RECORD ICON (p.10-2)
Displayed while recording.
• “ ” is displayed while the transceiver is recording.
• “
” is displayed while the recording is paused.
!0 SD ICON
“ ➥ ” is displayed when a SD card is inserted.
“ ➥ ” and “ ” alternately blinks while accessing the
SD card.
!1 GPS ICON
Displays the status of the GPS receiver. (p. 8-2) ➥
“ ➥ ì” is displayed when you set the GPS alarm.
(p. 8-36)
!2 AUTO POWER OFF ICON (p. 12-2)
Displayed when the Auto power OFF function is
ON.

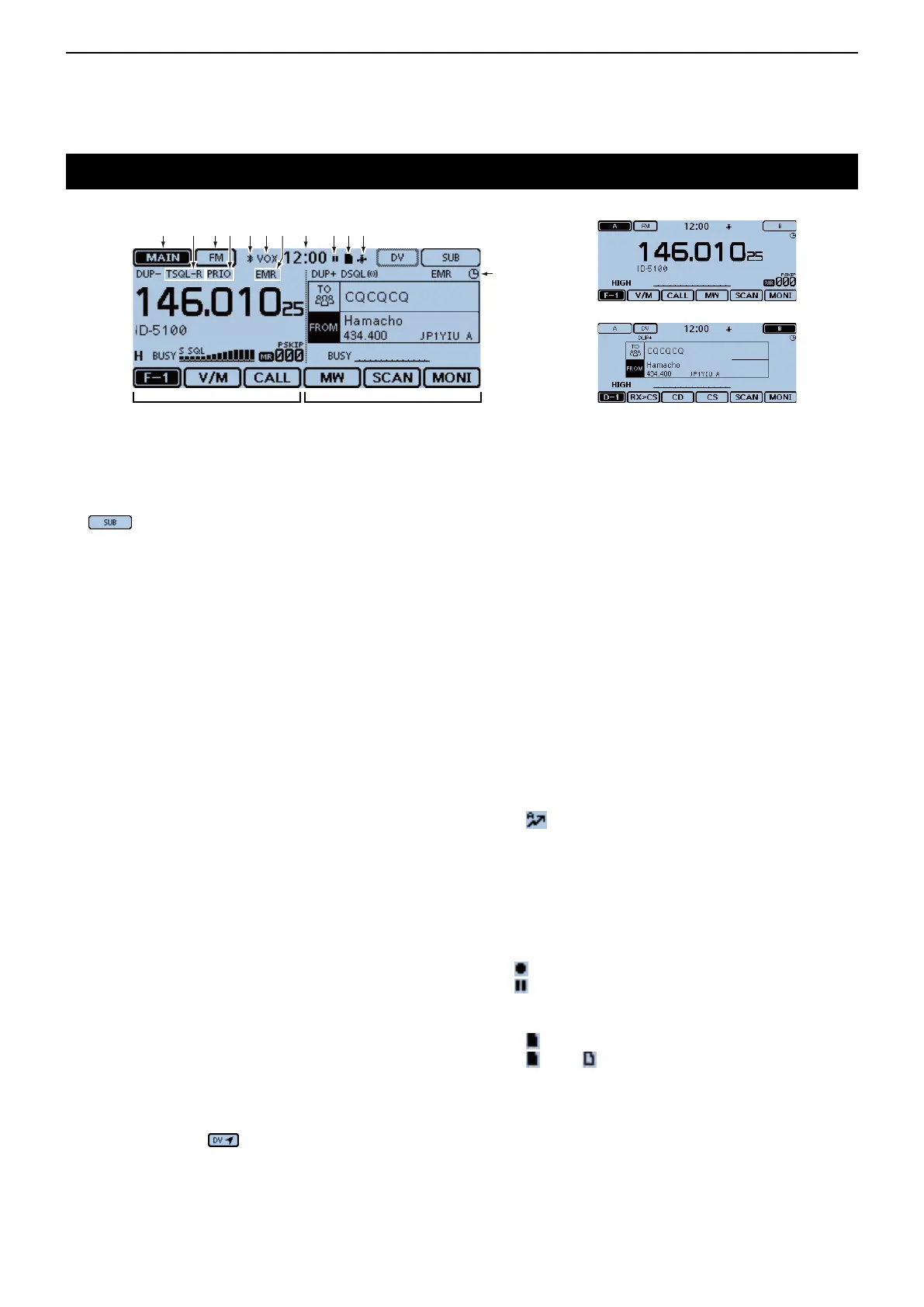

q w e r t y u i o !1!0
!2
Dualwatch mode Single watch mode (A band)
Single watch mode (B band)
This side becomes the A band
in the Single watch mode
This side becomes the B band
in the Single watch mode
Previous view
