2: General operation Model DMM7510 7½ Digit Graphical Sampling Multimeter
2-100 DMM7510-901-01 Rev. B / May 2015
Measure AC voltage using the front panel
To make an AC voltage measurement using the front panel:
1. Make the connections as shown in the previous figures.
2. Press the FUNCTION key.
3. Select AC Voltage.
4. Press the TRIGGER key for 2 seconds and verify that the instrument is set to Continuous
Measurement.
The measurements start displaying on the front panel.
Settings available for AC voltage measurements
See AC voltage measure settings (on page 2-25) for settings that are available when you are making
AC voltage measurements.
DC current measurements
This section describes how you can set up DC current measurements from the front panel.
To prevent electric shock, never make or break connections while power is present in the
test circuit.
DC current measure connections

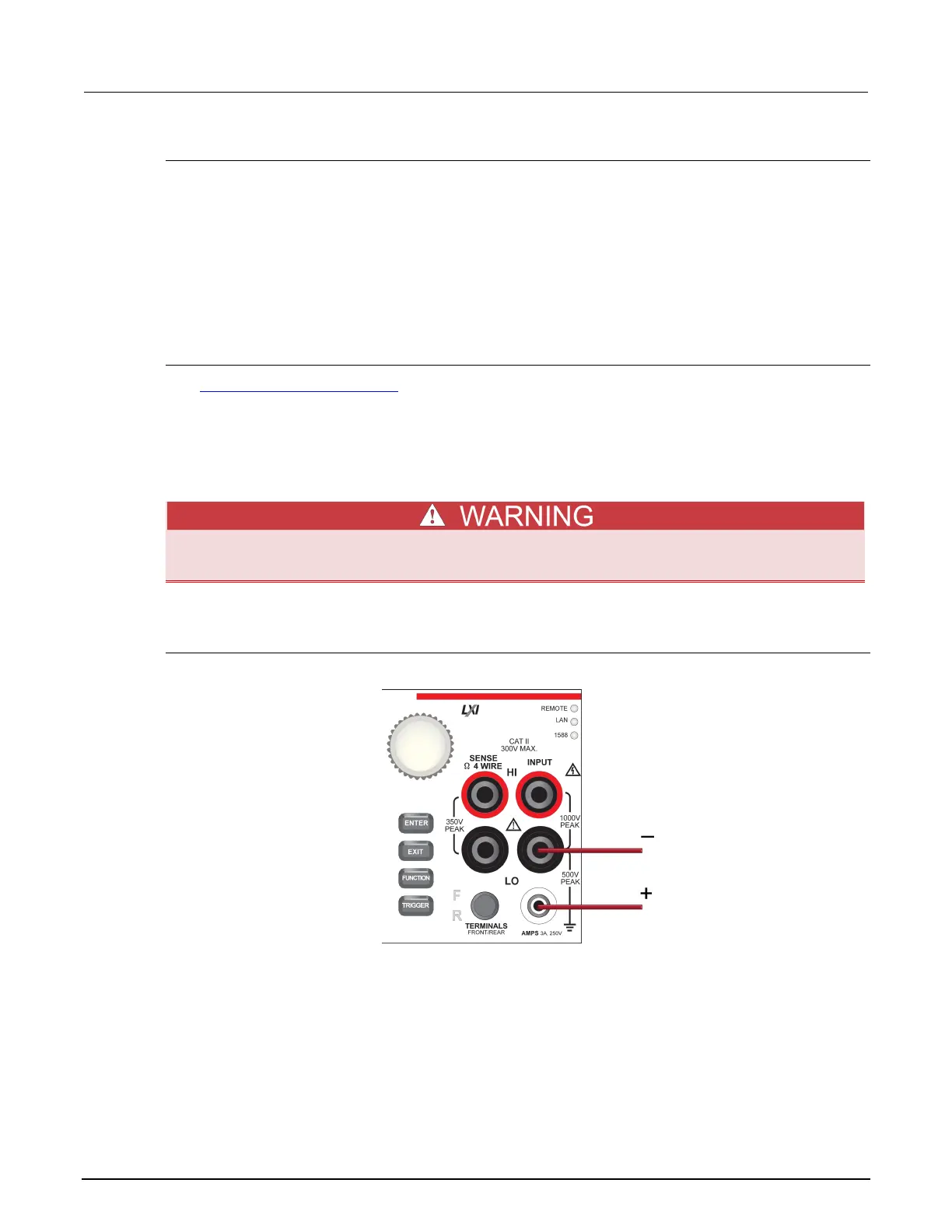

Figure 60: Front panel connections: DC current measurement (3 A or less)
