6.4.3.1 Example: System bus master is master value master
Generally, the system bus master is the master value master. All other system bus nodes
(sla
ves) receive an idencal master value from the master.
●●●
M (VM)
S1 S2 S15Sn

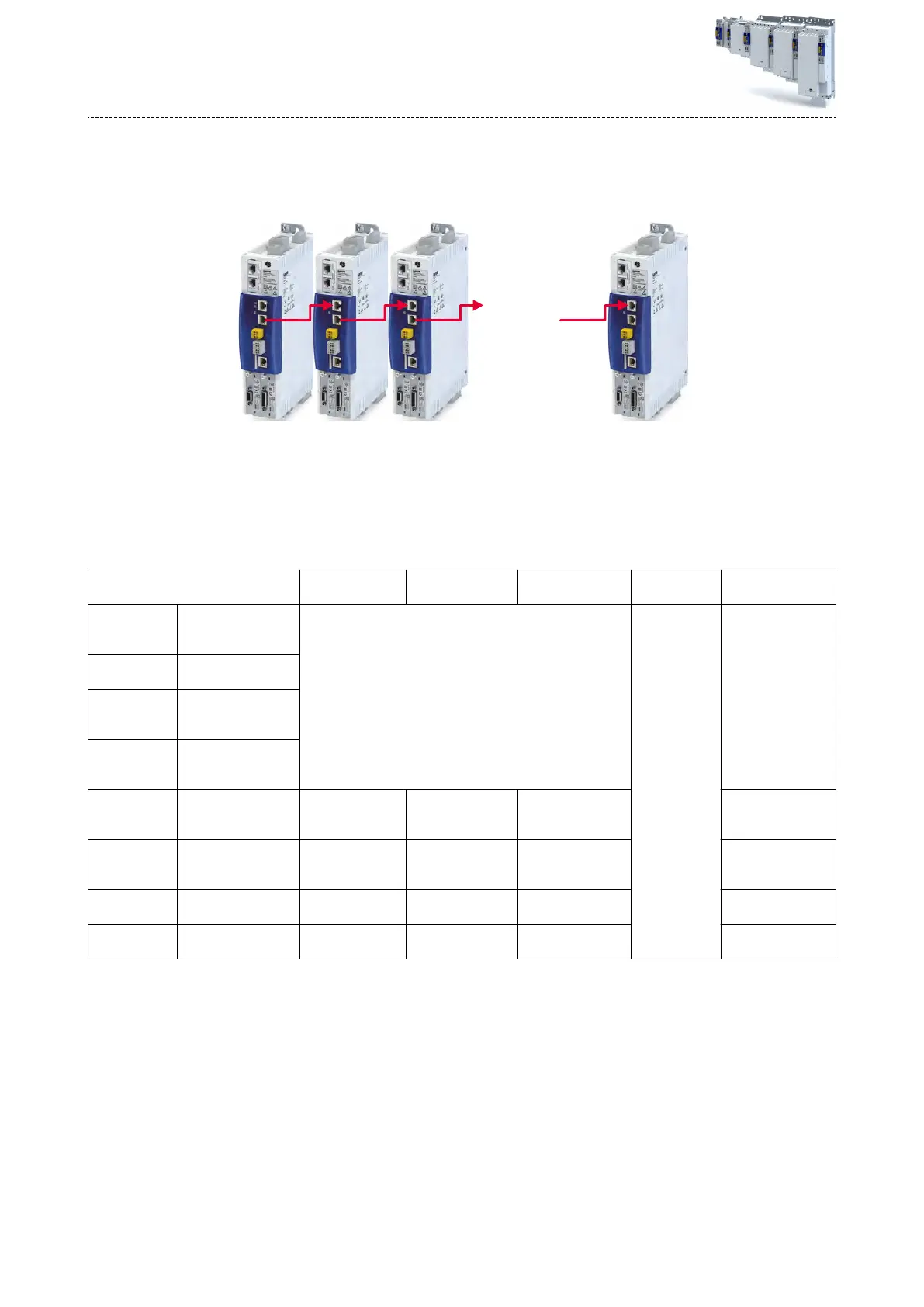

Fig. 29: Example 1 - System bus master is master value master
M System bus master
VM Virtual master
S Slave
In the system bus master, the exisng virtual master is used to generate master values. These
generated master values constute the master values for all system nodes so all parameters of
the system bus matrix are set to "Master" (default seng).
System bus
Input words
Master Slave 1 Slave 2 . . . Slave 15
00 Taktlänge der Lei-
tachse
(0x5021:150)
0x5021:010
01: Master
. . .
0x5021:010
01: Master
01 Posionsleitwert
(0x5021:151)
02 Geschwindigkeitsleit-
wert
(0x5021:152)
03 Beschleunigungsleit-
wert
(0x5021:153)
04 Drehmoment der Lei-
tachse
(0x5021:154)
0x5021:020
01: Master
0x5021:021
01: Master
0x5021:022
01: Master
0x5021:035
01: Master
05 Zeitstempel der Lei-
tachse
(0x5021:155)
0x5021:040
01: Master
0x5021:041
01: Master
0x5021:042
01: Master
0x5021:055
01: Master
06 Free input word
(0x5021:156)
0x5021:060
01: Master
0x5021:061
01: Master
0x5021:062
01: Master
0x5021:075
01: Master
07 Free input word
(0x5021:157)
0x5021:080
01: Master
0x5021:081
01: Master
0x5021:082
01: Master
0x5021:095
01: Master
Tab. 2: System bus matrix
Example for interpreng the table
The "Torque of master axis (0x5021:154)" for "Slave 2" is contained in parameter 0x5021:022.
Technology applicaon (TA) basic sengs
System bus communicaon
Distribuon of the master values by the master
88
