Garmin G3X Touch Installation Manual

190-01115-01 G3X/G3X Touch Installation Manual - GEA 24 Installation
Rev. AC Page 10-4
10.6 Outline and Installation Drawings

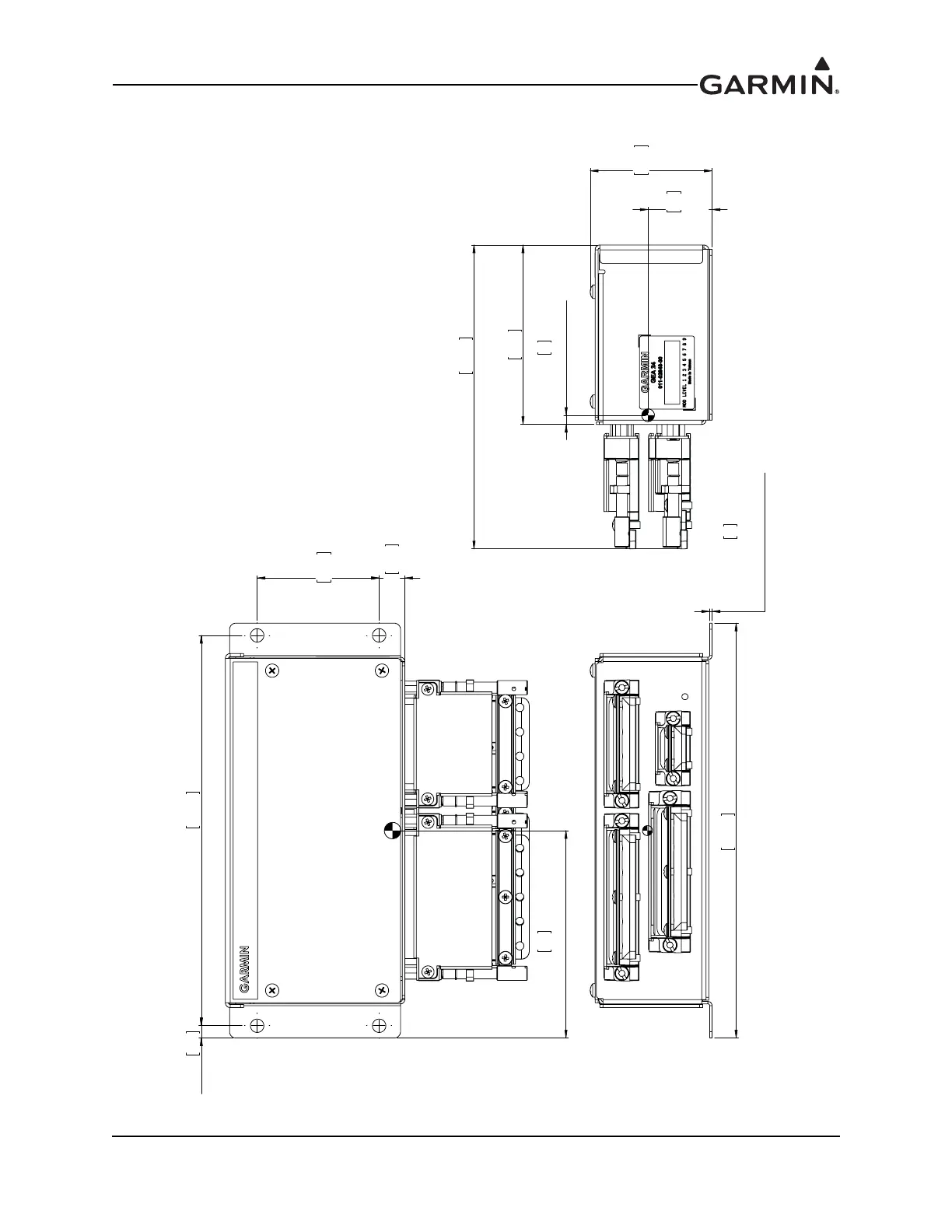

Figure 10-2 GEA 24 Outline Drawing
6.80 172.7
0.04 1
TYPICAL THICKNESS
BENEATH FASTENER HEAD
2X 6.40
162.6
2X 0.42
10.7
2.00 50.8
2X 0.20
5.1
3.4 86
CENTER OF GRAVITY
2.94 74.7
2.00 50.8
4.98 126.6
1.1 27
CENTER OF
GRAVITY
0.2 4
CENTER OF GRAVITY
NOTE: 1. DIMENSION: INCHES[mm]. METRIC VALUES ARE FOR REFERENCE ONLY. 2. DIMENSIONS ARE NOMINAL AND TOLERANCES ARE NOT IMPLIED UNLESS SPECIFICALLY STATED

Garmin G3X Touch Specifications

General

Power Input	10-32 VDC
Touchscreen	Yes
Built-in GPS	Yes
AHRS	Yes
Air Data Computer	Yes
Aviation Database	Yes
Terrain Awareness	Yes
Operating Temperature	-20°C to +55°C
Display Size	10.6 inches
Display Type	LCD
Connectivity	Wi-Fi, Bluetooth, USB, RS-232, CAN bus
Engine Monitoring	Yes
Autopilot Compatibility	Yes
Traffic Awareness	Yes
Weather Data	Yes
