190-01115-01 G3X/G3X Touch Installation Manual - GDU 37X Config and Post Install Checkout

Rev. AC Page 33-50

6. Engage the autopilot in HDG/PIT mode and command a nose up, right bank.

a) With no GMC 30X Controller:

i. Press the HDG/ROLL softkey on the PFD

ii. Press the AP HDG softkey on the PFD

iii. Push the joystick to center the HDG bug

iv. Rotate the joystick clockwise to command a right turn

v. Bump the joystick up to command a pitch up

b) With a GMC 30X Controller:

i. Press the AP button on the GMC 30X

ii. Press the HDG button on the GMC 30X

iii. Push the HDG softkey on the PFD

iv. Push the joystick on the PFD to center the HDG bug

v. Rotate the joystick on the PFD clockwise to command a right turn

vi. Rotate the wheel on the GMC 30X up to command a pitch up

7. Verify the stick properly moves toward the tail and toward the right wing smoothly with no control

system binding.

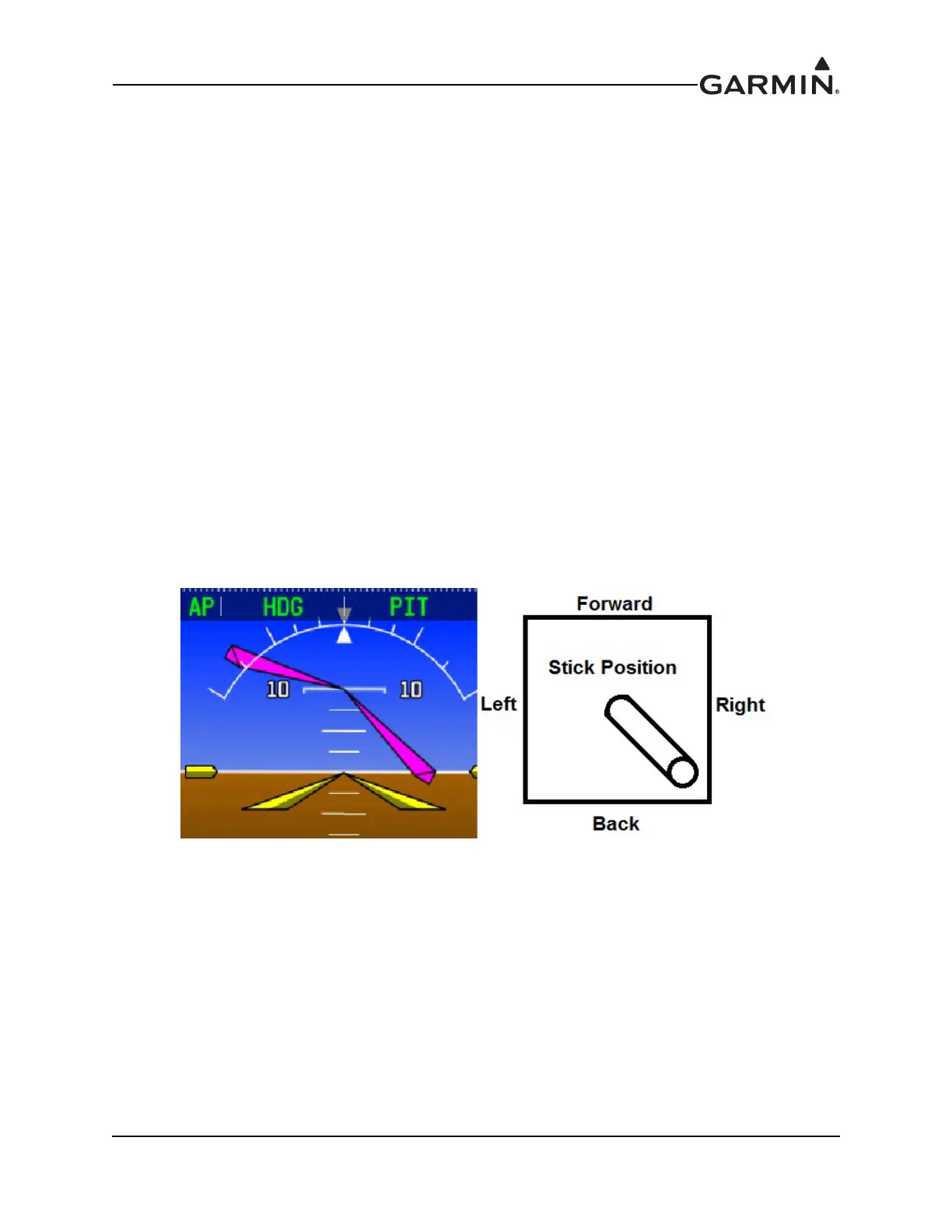

Figure 33-13 Stick Position Nose Up, Bank Right
