34.4.9 Flight Director Configuration Page
The Flight Director Page allows configuration of certain options for the flight director. This page will only
appear in installations that include an autopilot.
1. In configuration mode (Section 34.2
), use the Touch Screen or a Move Selector Knob to select the
Flight Director Configuration page.
2. Use the Touch Screen or a Move Selector Knob to select the desired configurable item and make
the desired change. Then press the OK Key to select the next item.
3. Enter data (where applicable) using the Keyboard (Section 34.4.1
) or Slider Bar (Section 34.4.2).
4. Press the Back key to return to the Configuration Mode page when finished (if desired).

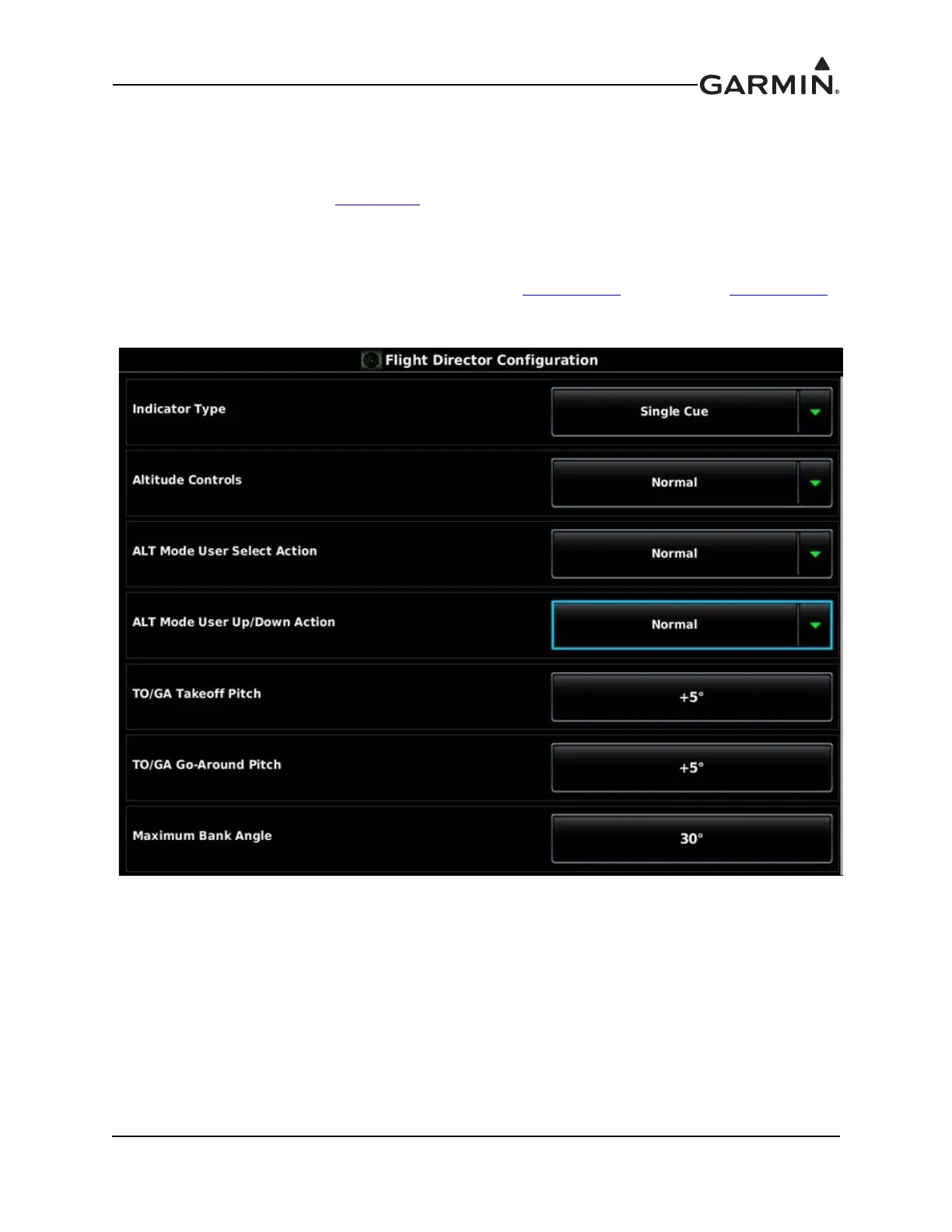

Indicator Type–Controls whether the flight director command indicator on the PFD uses a single-cue or
dual-cue presentation.
TO/GA Takeoff Pitch and TO/GA Go-Around Pitch–These fields allow customization of the pitch
attitude targets that will be commanded when the flight director is in Takeoff (TO) or Go-Around (GA)
mode, to suit the performance characteristics of the aircraft. The default value for both settings is 5
degrees. These fields will appear only if a discrete input is configured for the AFCS TO/GA function.
