190-01115-01 G3X/G3X Touch Installation Manual - Connector Installation Instructions

Rev. AC Page 24-18

24.4.8 Splicing Signal Wires

NOTE

Figure 24-13 illustrates that a splice must be made within a 3 inch window from outside

the edge of clamp to the end of the 3 inch max mark.

WARNING

Keep the splice out of the backshell for pin extraction, and outside of the strain relief to

avoid preloading.

Figure 24-13 shows a two wire splice, but a maximum of three wires can be spliced. If a third wire is

spliced, it is located out front of splice along with signal wire going to pin.

Splice part numbers:

•Raychem D-436-36/37/38

•MIL Spec MIL-S-81824/1

This technique may be used with shield termination methods: A.1, A.2, B.1, B.2, C.1 and C.2.

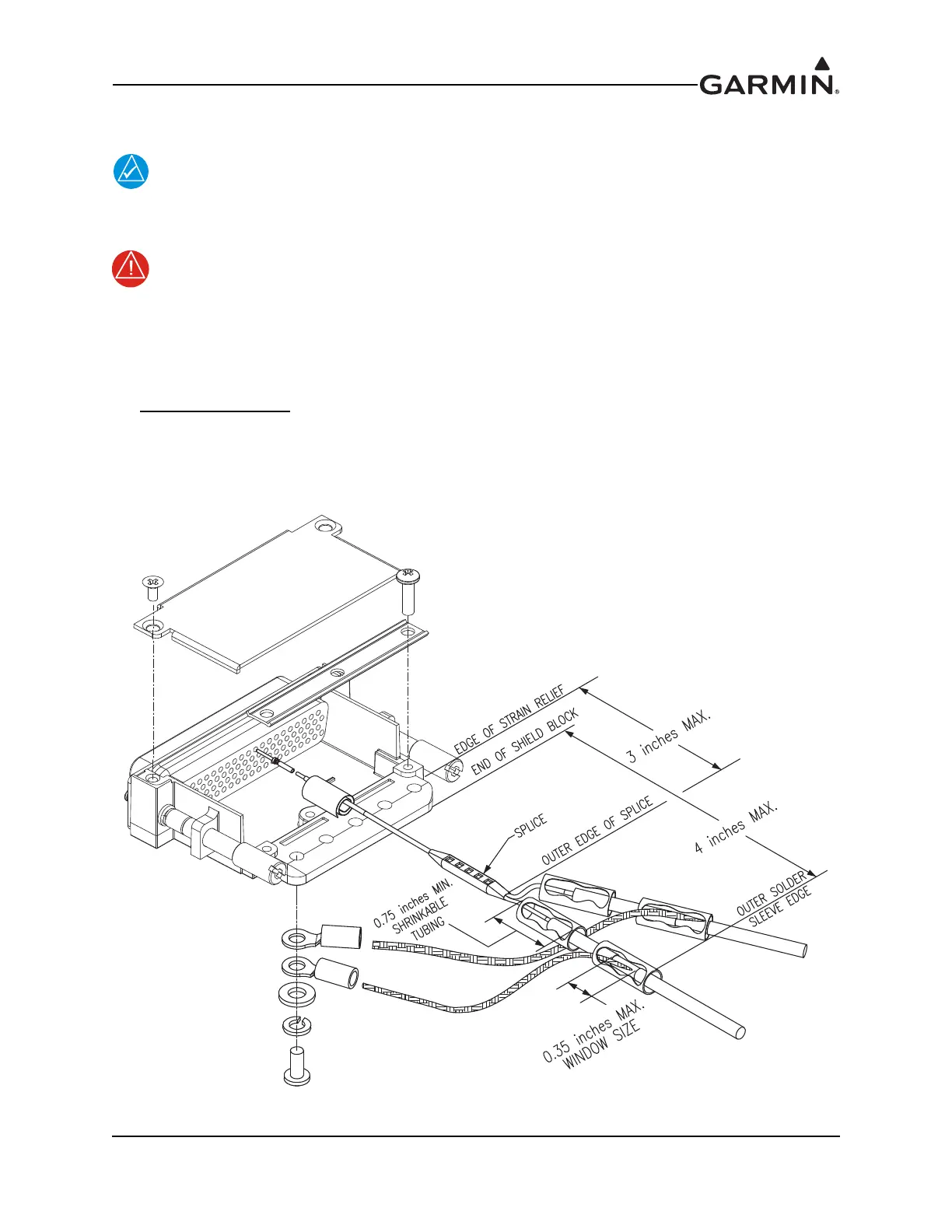

Figure 24-13 D-Sub Spliced Signal Wire illustration
