190-01115-01 G3X/G3X Touch Installation Manual - GDU 37X Config and Post Install Checkout

Rev. AC Page 33-146

Installation Configuration Pages

The configuration pages are in the order found when rotating the right small knob clockwise starting at the

MAIN ARINC 429 CONFIG page. Follow the preceding procedures to enter configuration mode and to

select the desired configuration settings (the following figures are for reference only and may vary from

actual screens/settings, refer to instructions on the drawings in Section 26.2

and Section 27.2).

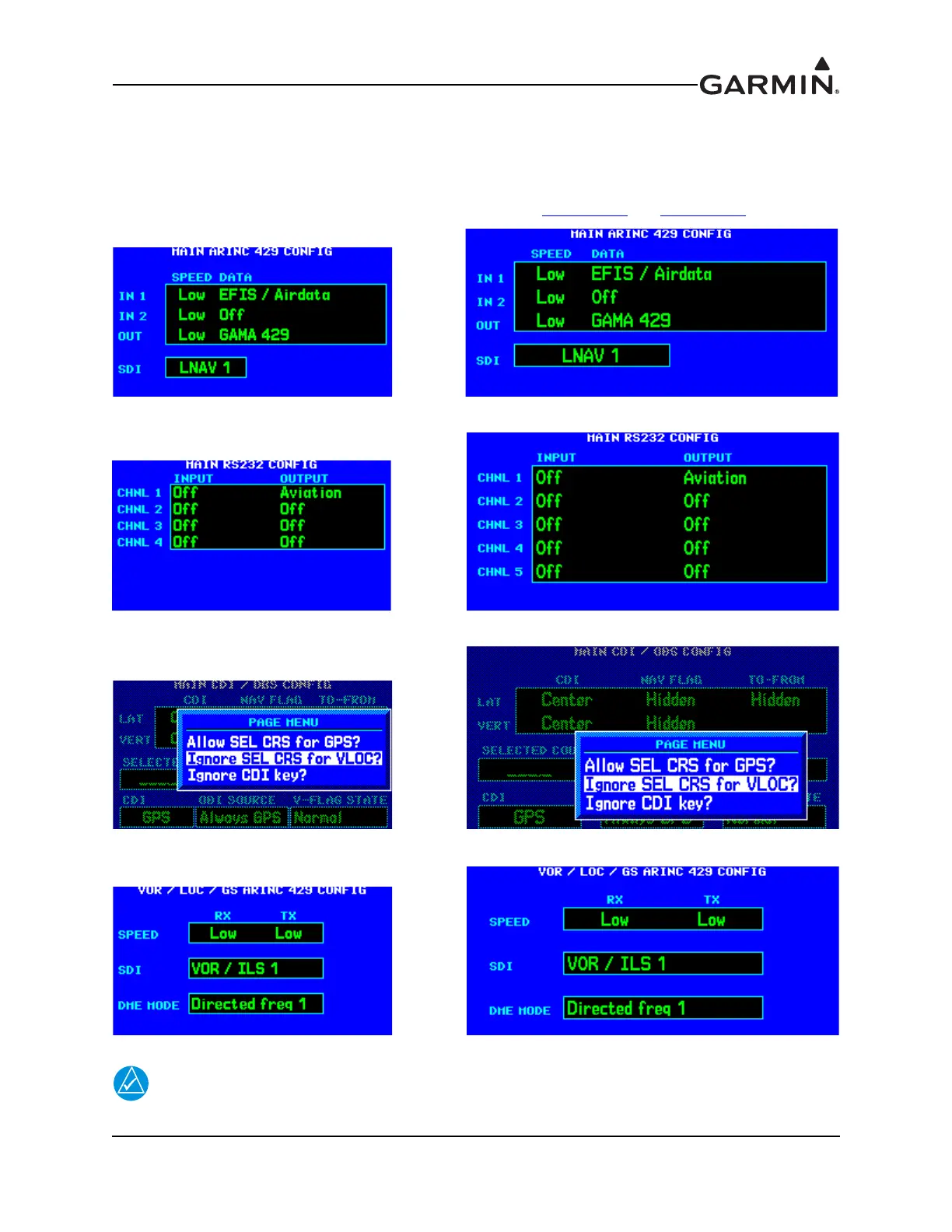

4XX Main ARINC 429 Config Page 5XX Main ARINC 429 Config Page

4XX Main RS232 Config Page 5XX Main RS232 Config Page

4XX Main CDI/OBS Config Page 5XX Main CDI/OBS Config Page

4XX Main VOR/LOC/GS 429 Config Page 5XX Main VOR/LOC/GS 429 Config Page

NOTE

Each output channel can be used to drive up to three RS-232 devices.
