190-01115-01 G3X/G3X Touch Install Manual - GDU 4XX Config and Post Install Checkout

Rev. AC Page 34-136

34.4.26.2 Engine/Airframe Input Configuration

The Engine/Airframe Input Configuration section of the Engine Configuration Page allows selection of the

engine/airframe inputs that are connected to the GEA 24 or GSU 73, and for customizing the displayed

resulting information on the EIS display and the Engine Page. A list of analog, digital, and discrete inputs

appropriate for the connected EIS LRU type (GEA 24, Figure 34-38 or GSU 73, Figure 34-41

) will be

displayed.

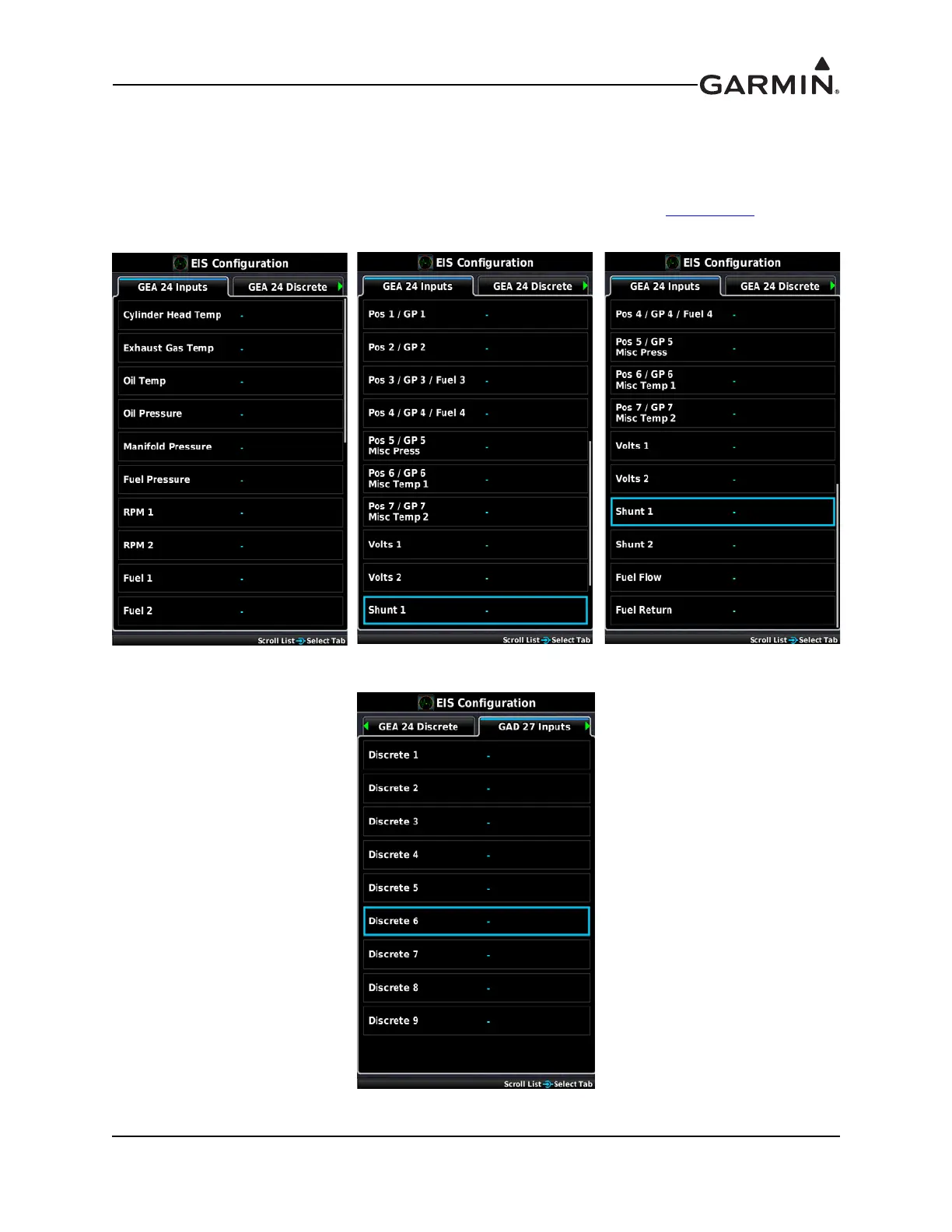

Figure 34-38 GEA 24 Engine/Airframe Input Configuration Page

Figure 34-39 GAD 27 Engine/Airframe Input Configuration Page
